105407-6780 ZEXEL F 019 Z4E 368 BOSCH GOVERNOR f019z4e368 1054076780 1910196407




Information governor

BOSCH F 019 Z4E 368 f019z4e368
ZEXEL 105407-6780 1054076780
NISSAN-DIESEL 1910196407 1910196407
105407-6780 GOVERNOR
Rating:
17
Buy GOVERNOR 105407-6780 zexel genuine, new aftermarket engine parts with delivery

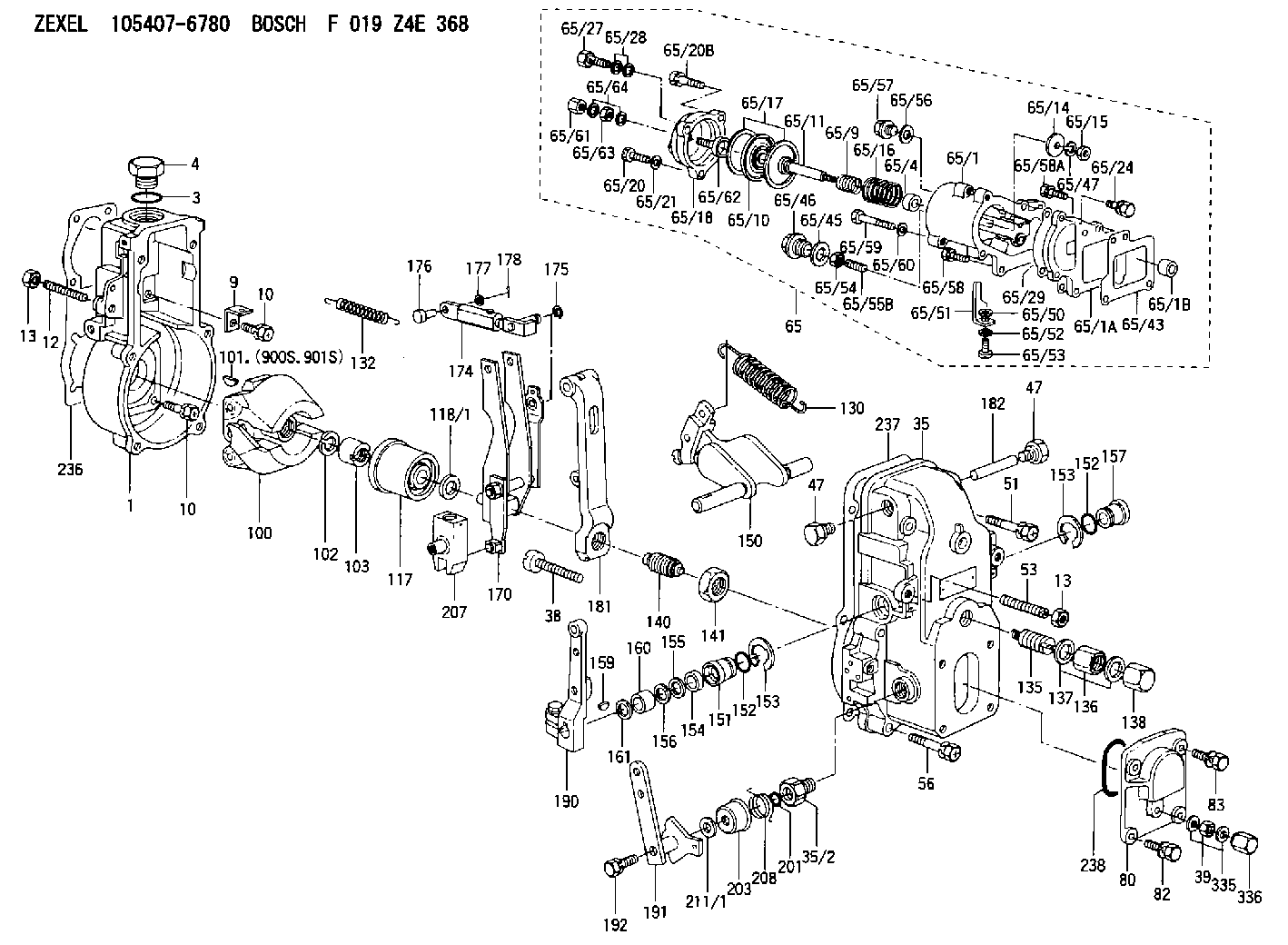

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154421-9920 MANIFOLD-PRESSURE COMP.
65/1. [1] 154412-0122 GOVERNOR HOUSING
65/1A. [1] 154412-0201 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/4. [1] 154413-0500 BUSHING
65/9. [1] 154414-8800 COILED SPRING
65/10. [1] 154400-8220 DIAPHRAGM
65/11. [1] 154412-4101 STOP PIN
65/14. [1] 154406-5500 SLOTTED WASHER
65/15. [1] 013020-6040 UNION NUT M6P1H5
65/16. [1] 154411-3400 COILED SPRING
65/17. [2] 154413-2600 GASKET
65/18. [1] 154404-5000 COVER
65/20. [2] 029010-6310 BLEEDER SCREW
65/20B. [1] 020106-4540 BLEEDER SCREW M6P1.0L45
65/21. [2] 014110-6440 LOCKING WASHER
65/24. [2] 020106-2040 BLEEDER SCREW M6P1L20
65/27. [1] 029731-0180 EYE BOLT
65/28. [2] 026510-1340 GASKET D13.4&10.2T1
65/29. [1] 154390-2200 GASKET
65/43. [1] 154390-2300 GASKET
65/45. [1] 029331-8040 GASKET
65/46. [1] 154406-5800 FLAT-HEAD SCREW
65/47. [1] 014110-6440 LOCKING WASHER
65/50. [1] 154406-6800 PLAIN WASHER
65/51. [1] 154412-3900 CONTROL LEVER
65/52. [1] 014110-4440 LOCKING WASHER
65/53. [1] 010234-0820 HEX-SOCKET-HEAD CAP SCREW
65/54. [1] 013030-6040 UNION NUT M6P1H3.6
65/55B. [1] 154404-1600 FLAT-HEAD SCREW L26.00
65/56. [1] 029331-2130 GASKET
65/57. [1] 154406-6500 FLAT-HEAD SCREW
65/58. [2] 020106-2840 BLEEDER SCREW
65/58A. [1] 020106-1440 BLEEDER SCREW M6P1.0L14
65/59. [1] 010006-7040 BLEEDER SCREW M6P1L70
65/60. [1] 014110-6440 LOCKING WASHER
65/61. [1] 154035-1600 CAP NUT
65/62. [1] 154404-4400 FLAT-HEAD SCREW
65/63. [1] 013030-6040 UNION NUT M6P1H3.6
65/64. [2] 026506-1040 GASKET D9.9&6.2T1
80. [1] 154063-1400 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0120 FLYWEIGHT
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2700 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-1820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-3620 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7120 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-9920 FORK LEVER
174. [1] 154230-5120 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 159231-4900 BEARING PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
178. [1] 155402-3800 SAFETY PIN
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154309-6120 CONTROL LEVER
191. [1] 154365-9321 CONTROL LEVER
192. [1] 020006-4540 BLEEDER SCREW M6P1L45
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-5690 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-6780
F 019 Z4E 368
NP-EP/RSV200-1450PQ43/302
1910196407  NISSAN-DIESEL
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
