105407-6520 ZEXEL 9 420 611 104 BOSCH GOVERNOR 9420611104 1054076520 1157709220

Information governor

BOSCH 9 420 611 104 9420611104

ZEXEL 105407-6520 1054076520

ISUZU 1157709220 1157709220

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-6520 zexel genuine, new aftermarket engine parts with delivery

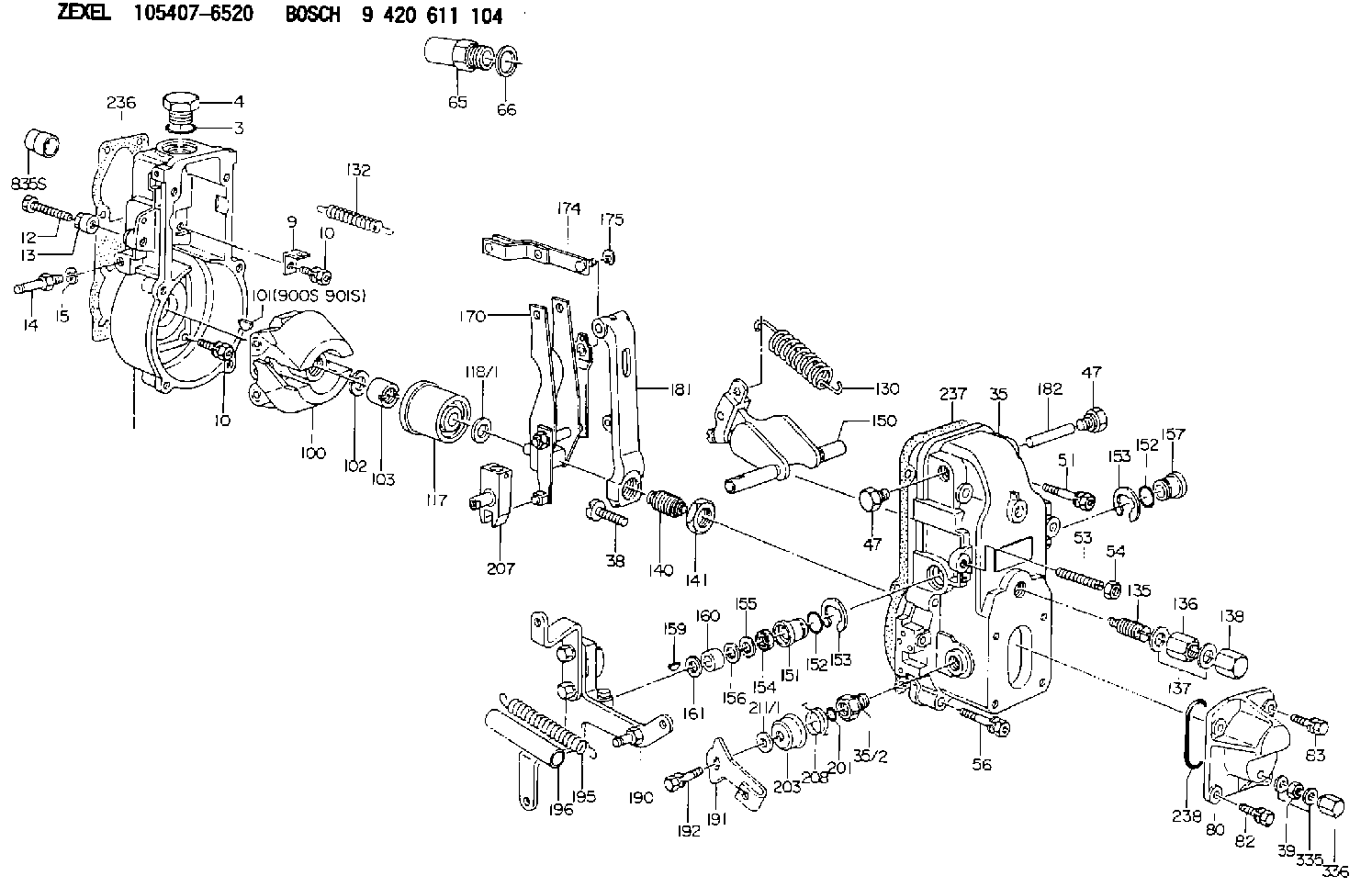

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
12B.	[1]	154010-8900	BLEEDER SCREW M8P1.25L67.5
13.	[1]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-2300	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-3400	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-5100	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1020	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-9920	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154395-1120	CONTROL LEVER
191.	[1]	154382-8500	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-0200	COILED SPRING
196.	[1]	154156-1100	TUBE
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
835S.	[1]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-6230 as GOVERNOR

106671-6231

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-6520

9 420 611 104
NP-EP/RSV200-1300PQ44/301

1157709220 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

April 19, 2004
U-118
A-80
D-95
O-98
TT-10
TA-1
TM-3
Partsstock action only PRODUCT IMPROVEMENT PROGRAM FOR REMOVINGCERTAIN REMANUFCTURED FUEL INJECTORS FROM DEALER PARTS STOCK
7750 PI70077
The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst.TERMINATION DATE
July 31, 2004PROBLEM
The injector nose cone may be undersize on certainremanufactured fuel injectors that are used in various 3116 Engines. All0R8461, 0R8463, 0R8465, 0R8469, 0R8471, 0R8473, 0R8475, 0R8479, 0R8483,0R8633, 0R8682, 0R8684, and 0R8867 Remanufactured Fuel Injectors with DateCodes from 01/02/04 to 31/03/04 stamped on the box need to be removed fromdealer stock.ACTION REQUIRED
Remove all Remanufactured Fuel Injectors listedin the following chart from dealer parts stock that have Date Codes from01/02/04 to 31/03/04 stamped on the box.
Part Number Description Box Date Code
0R8461 INJECTOR GP 01/02/04 to 31/03/04
0R8463 INJECTOR GP 01/02/04 to 31/03/04
0R8465 INJECTOR GP 01/02/04 to 31/03/04
0R8469 INJECTOR GP 01/02/04 to 31/03/04
0R8471 INJECTOR GP 01/02/04 to 31/03/04
0R8473 INJECTOR GP 01/02/04 to 31/03/04
0R8475 INJECTOR GP 01/02/04 to 31/03/04
0R8479 INJECTOR GP 01/02/04 to 31/03/04
0R8483 INJECTOR GP 01/02/04 to 31/03/04
0R8633 INJECTOR GP 01/02/04 to 31/03/04
0R8682 INJECTOR GP 01/02/04 to 31/03/04
0R8684 INJECTOR GP 01/02/04 to 31/03/04
0R8867 INJECTOR GP 01/02/04 to 31/03/04
SERVICE CLAIM ALLOWANCES
Submit one claim for all 0R8461, 0R8463, 0R8465,0R8469, 0R8471, 0R8473, 0R8475, 0R8479, 0R8483, 0R8633, 0R8682, 0R8684,and 0R8867 Remanufactured Fuel Injectors that were removed from dealerparts stock.PARTS DISPOSITION
All dealers are to make sure the outsideof the shipping container is marked PI70077.***** All Dealers *****Return all 0R8461, 0R8463, 0R8465, 0R8469,0R8471, 0R8473, 0R8475, 0R8479, 0R8483, 0R8633, 0R8682, 0R8684, and 0R8867Remanufactured Fuel Injectors that are removed from parts stock and a copyof the claim to:Caterpillar Inc.
Attn: Noe S. Perez - PI70077
Service Claims Room
8201 N. University
Peoria, IL 61615
