105407-6410 ZEXEL 9 420 610 779 BOSCH GOVERNOR 9420610779 1054076410

Information governor

BOSCH 9 420 610 779 9420610779

ZEXEL 105407-6410 1054076410

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-6410 zexel genuine, new aftermarket engine parts with delivery

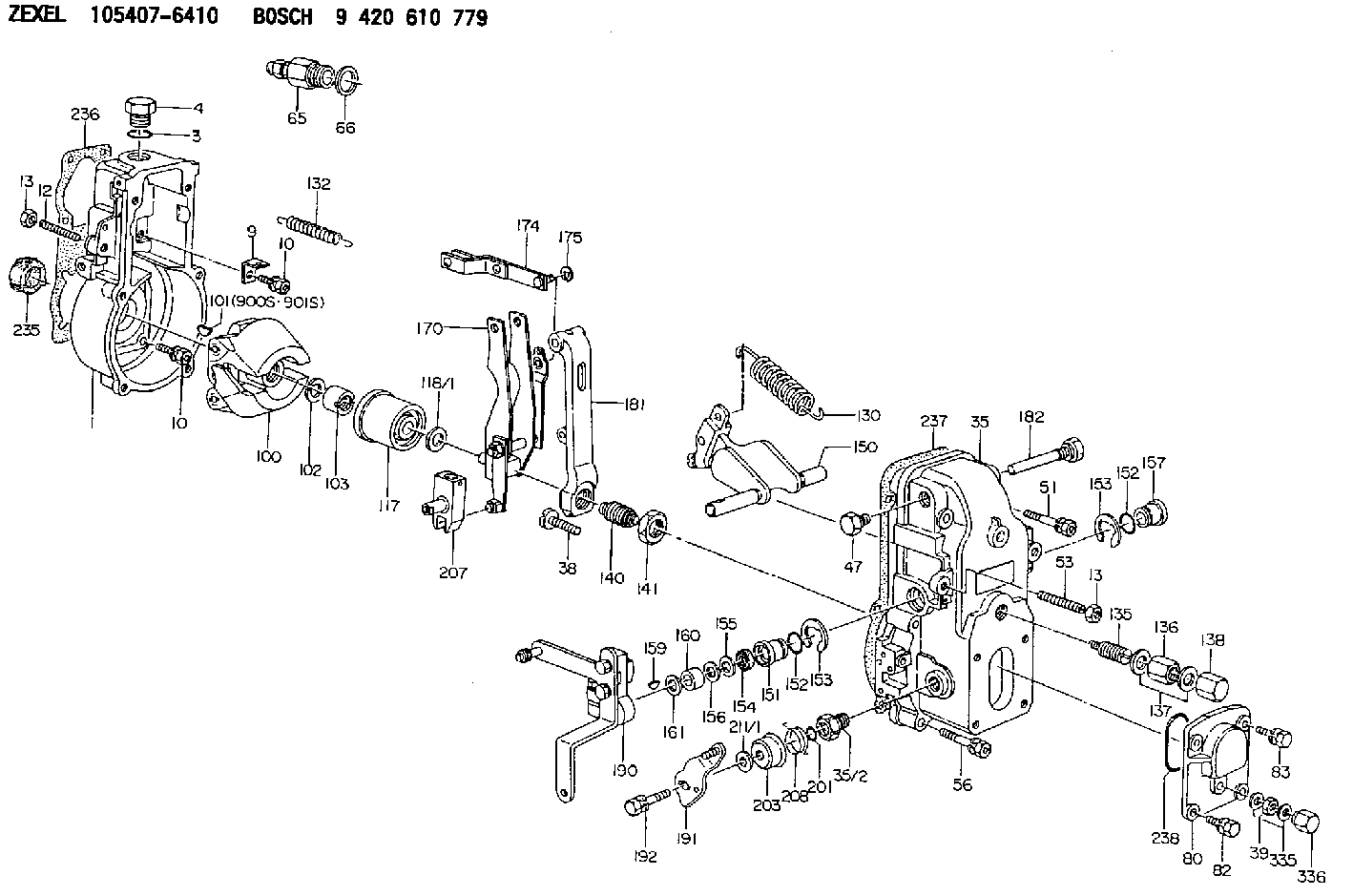

Scheme ###:

1.	[1]	154000-5720	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-8120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-4300	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0420	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-2720	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154347-4920	CONTROL LEVER
191.	[1]	154367-0420	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	139710-0500	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106675-4420 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-6410
105407-6411

9 420 610 779

GOVERNOR
* K 14JB GOV RSV GOV

Information:

Problem
The 9Y3222 Injector Rocker Arms may fail on certain 205B, 206B, 211B, 212B, 213B, 214B, 224B, and 325 Excavators; D20D and D250D Articulated Trucks; 446 Backhoe Loaders; 950F Loaders; 3114 Industrial Engines; 3116 Industrial Engines; 3116 Marine Engines; and 3116 Truck Engines. The arm may fail near the adjusting screw or the insert on the injector end of the arm may break.
Affected Product
Model & Identification Number
205B (5ZF1-91)
206B (9BF1-691)
211B (6XG1-162)
212B (3PJ1-912)
213B (1EJ1-378)
214B (4CF1-517; 9MF1-386)
224B (7WF1-181)
325 (2JK174-254)
D20D (9MG1-46)
D250D (6NG1-35)
446 (6XF1-689)
950F (6YG1-2729; 7ZF1-1045)
3114 (Industrial) (5EF1-974)
3116 (Industrial) (2WG1-2506; 4PG1-847)
3116 (Marine) (4KF1-1154)
3116 (Truck) (2BK10000-14485)
Parts Needed
6 - 9Y3222 Injector Arm AssemblyAction Required
If one 9Y3222 Injector Arm Assembly fails, follow the procedures in the Service Manual and replace all six 9Y3222 Injector Arm Assemblies.
In marine applications where there is more than one engine per vessel, install six new 9Y3222 Injector Arm Assemblies on all engines if there is a 9Y3222 Injector Arm Assembly failure.
Service Claim Allowances
All Affected Product Except Truck Engines
This is a 4-hour job.
Truck Engines
Labor segment for test after repair not allowed for this repair.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
