Information governor
BOSCH
9 420 610 721
9420610721
ZEXEL
105407-6291
1054076291
YANMAR
12662451160
12662451160
Rating:

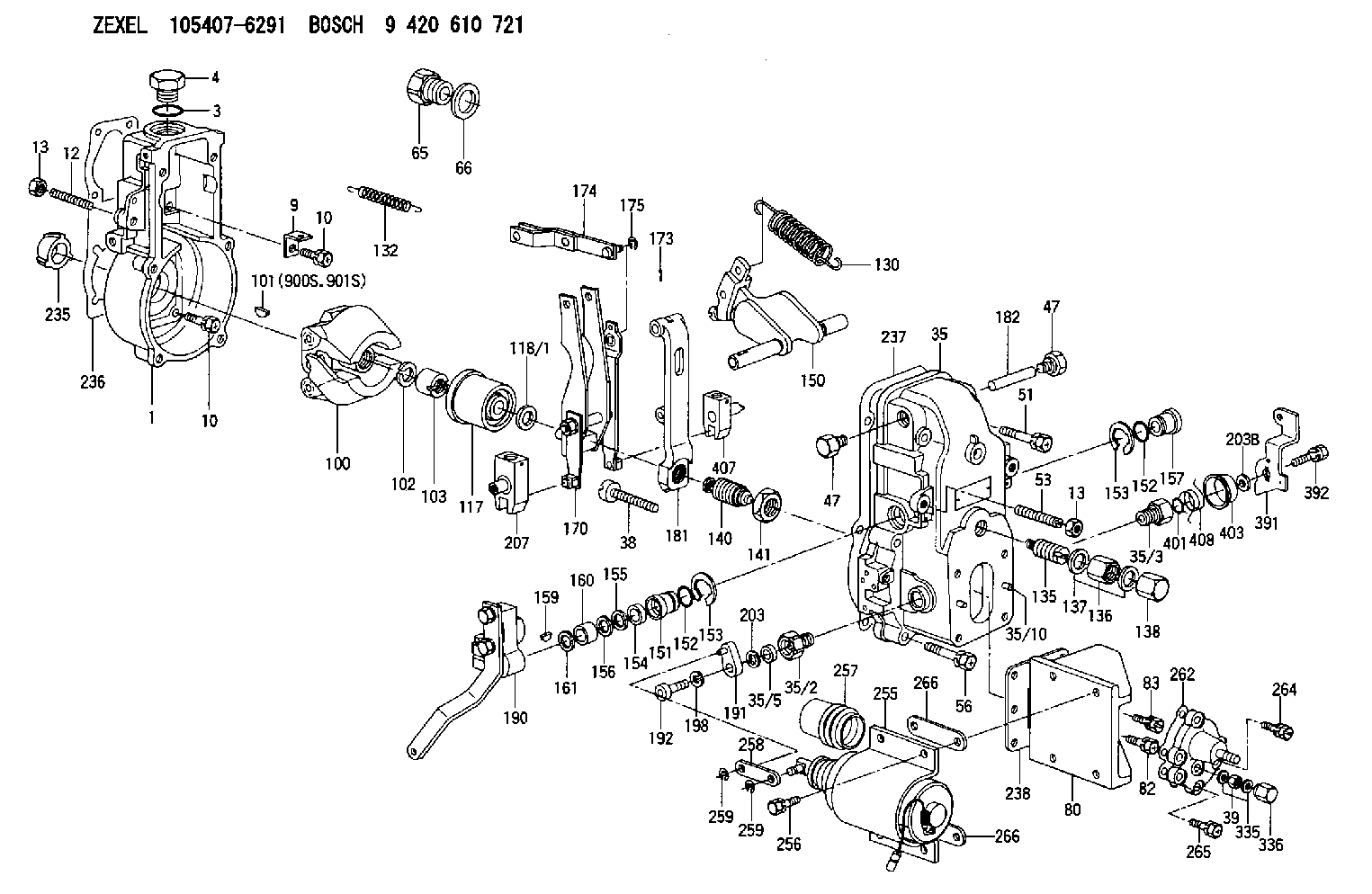

Scheme ###:
| 1. | [1] | 154000-5720 | GOVERNOR HOUSING |
| 3. | [1] | 029632-5070 | O-RING |
| 4. | [1] | 154007-2900 | CAPSULE |
| 9. | [1] | 154350-6000 | PLATE |
| 10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 12. | [1] | 154010-0500 | FLAT-HEAD SCREW |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 35. | [1] | 154500-4620 | GOVERNOR COVER |
| 35/2. | [1] | 154321-0400 | BUSHING |
| 35/3. | [1] | 154321-1300 | BUSHING |
| 35/5. | [1] | 029621-0010 | PACKING RING |
| 35/10. | [2] | 015060-1480 | BEARING PIN |
| 38. | [1] | 154031-3000 | FLAT-HEAD SCREW |
| 39. | [1] | 139206-0600 | UNION NUT |
| 47. | [2] | 154036-0300 | CAPSULE |
| 47. | [2] | 154036-0300 | CAPSULE |
| 51. | [2] | 020106-5040 | BLEEDER SCREW |
| 53. | [1] | 154010-0500 | FLAT-HEAD SCREW |
| 56. | [4] | 020106-3840 | BLEEDER SCREW |
| 65. | [1] | 153021-4820 | STOPPING DEVICE |
| 66. | [1] | 026524-3040 | GASKET |
| 80. | [1] | 154063-1300 | COVER |
| 82. | [2] | 029010-6540 | BLEEDER SCREW |
| 83. | [2] | 020106-2840 | BLEEDER SCREW |
| 100. | [1] | 154101-0120 | FLYWEIGHT |
| 101. | [1] | 025803-1310 | WOODRUFF KEY |
| 102. | [1] | 029321-2020 | LOCKING WASHER |
| 103. | [1] | 029231-2030 | UNION NUT |
| 117. | [1] | 154123-0120 | SLIDING PIECE |
| 118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
| 118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
| 118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
| 118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
| 118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
| 118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
| 118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
| 118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
| 118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
| 130. | [1] | 154150-0100 | GOVERNOR SPRING |
| 132. | [1] | 154154-0800 | COILED SPRING |
| 135. | [1] | 154158-1020 | HEADLESS SCREW |
| 136. | [1] | 154011-2700 | UNION NUT |
| 137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 138. | [1] | 154159-1200 | CAP NUT |
| 140. | [1] | 154185-1320 | HEADLESS SCREW |
| 141. | [1] | 029201-6010 | UNION NUT |
| 150. | [1] | 154200-7020 | SWIVELLING LEVER |
| 151. | [1] | 154204-4300 | BUSHING |
| 152. | [2] | 029631-8020 | O-RING |
| 152. | [2] | 029631-8020 | O-RING |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 154. | [1] | 139611-0000 | PACKING RING |
| 155. | [1] | 139411-0000 | SHIM |
| 156. | [0] | 029311-1090 | SHIM D16&11T0.3 |
| 157. | [1] | 154204-4400 | BUSHING |
| 159. | [1] | 025803-1310 | WOODRUFF KEY |
| 160. | [1] | 154206-2800 | BUSHING |
| 161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
| 170. | [1] | 154211-7920 | FORK LEVER |
| 173. | [1] | 025520-1210 | SPLIT PIN |
| 174. | [1] | 154230-2920 | STRAP |
| 175. | [1] | 016010-0540 | LOCKING WASHER |
| 181. | [1] | 154236-4100 | TENSIONING LEVER |
| 182. | [1] | 154237-0100 | BEARING PIN |
| 190. | [1] | 154345-4920 | CONTROL LEVER |
| 191. | [1] | 154307-9420 | CONTROL LEVER |
| 192. | [1] | 010206-1440 | HEX-SOCKET-HEAD CAP SCREW M6P1L14 |
| 198. | [1] | 029320-6010 | LOCKING WASHER |
| 203. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
| 203B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
| 207. | [1] | 154326-5020 | CONTROL LEVER |
| 235. | [1] | 155412-5200 | IMPELLER WHEEL |
| 236. | [1] | 154371-5600 | GASKET |
| 237. | [1] | 154390-0300 | GASKET |
| 238. | [1] | 154351-1400 | GASKET |
| 255. | [1] | 154409-9820 | SOLENOID |
| 256. | [4] | 020006-1440 | BLEEDER SCREW M6P1L14 |
| 257. | [1] | 154409-8400 | COVER |
| 258. | [1] | 154409-9000 | STRAP |
| 259. | [2] | 016010-0540 | LOCKING WASHER |
| 259. | [2] | 016010-0540 | LOCKING WASHER |
| 262. | [1] | 154353-5700 | GASKET |
| 264. | [1] | 029020-6260 | BLEEDER SCREW |
| 265. | [5] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 266. | [0] | 154351-2000 | SHIM T0.20 |
| 266. | [0] | 154351-2000 | SHIM T0.20 |
| 266B. | [0] | 154351-2100 | SHIM T0.50 |
| 266C. | [0] | 154351-2200 | SHIM T1.00 |
| 335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 336. | [1] | 154035-1600 | CAP NUT |
| 391. | [1] | 154304-4720 | CONTROL LEVER |
| 392. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 401. | [1] | 029631-0030 | O-RING &9.8W2.3 |
| 403. | [1] | 154322-0100 | CAP |
| 407. | [1] | 154324-2820 | CONTROL LEVER |
| 408. | [1] | 154327-7300 | COILED SPRING |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106692-9391
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105407-6291
12662451160 YANMAR
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
Information:
GENERAL
Specifications
Construction
Cooling System Component Parts(1) Cooling fan(2) Water pump pulley(3) Water pump assembly(4) V-belt(5) Thermostat(6) Thermostat fitting(7) Thermoswitch(8) Bypass pipeFAN AND FAN BELT
Fan Belt Inspection
For fan belt tension, see 0-06 MAINTENANCE.
Inspecting Fan BeltFan Inspection
Check the fan for cracks, damaged and deformation. If any, replace the fan.
Inspecting FanWATER PUMP
Removal and Installation
(1) Remove the fan and fan belt.(2) Remove the water pump.(3) When installing the water pump, reverse the above-mentioned order of removal.
Removing Water PumpInspection
Check the water pump for water leak, rough rotation, and cracks. If any, replace the water pump assembly.THERMOSTAT
Removal and Installation
Pay attention to the following:(1) Never allow the flange to protrude from the faucet joint.(2) Renew the gasket.
Installing ThermostatInspection
If the thermostat does not operate properly, replace it.
Inspecting Thermostat WATER TEMPERATURE GAUGE UNIT AND THERMOSWITCH
Inspection of Water Temperature Gauge Unit
If the gauge does not function properly, replace it.
Inspecting Temperature Gauge Unit CAUTION Handle hot oil with special care not to cause a scald or a fire.Inspection of Thermoswitch
Inspecting Thermoswitch CAUTION Handle hot oil with special care not to cause a scald or a fire.
Specifications
Construction
Cooling System Component Parts(1) Cooling fan(2) Water pump pulley(3) Water pump assembly(4) V-belt(5) Thermostat(6) Thermostat fitting(7) Thermoswitch(8) Bypass pipeFAN AND FAN BELT
Fan Belt Inspection
For fan belt tension, see 0-06 MAINTENANCE.
Inspecting Fan BeltFan Inspection
Check the fan for cracks, damaged and deformation. If any, replace the fan.
Inspecting FanWATER PUMP
Removal and Installation
(1) Remove the fan and fan belt.(2) Remove the water pump.(3) When installing the water pump, reverse the above-mentioned order of removal.
Removing Water PumpInspection
Check the water pump for water leak, rough rotation, and cracks. If any, replace the water pump assembly.THERMOSTAT
Removal and Installation
Pay attention to the following:(1) Never allow the flange to protrude from the faucet joint.(2) Renew the gasket.
Installing ThermostatInspection
If the thermostat does not operate properly, replace it.
Inspecting Thermostat WATER TEMPERATURE GAUGE UNIT AND THERMOSWITCH
Inspection of Water Temperature Gauge Unit
If the gauge does not function properly, replace it.
Inspecting Temperature Gauge Unit CAUTION Handle hot oil with special care not to cause a scald or a fire.Inspection of Thermoswitch
Inspecting Thermoswitch CAUTION Handle hot oil with special care not to cause a scald or a fire.
