105407-6120 ZEXEL 9 420 610 912 BOSCH GOVERNOR 9420610912 1054076120




Information governor

BOSCH 9 420 610 912 9420610912
ZEXEL 105407-6120 1054076120
105407-6120 GOVERNOR
Rating:
18
Buy GOVERNOR 105407-6120 zexel genuine, new aftermarket engine parts with delivery

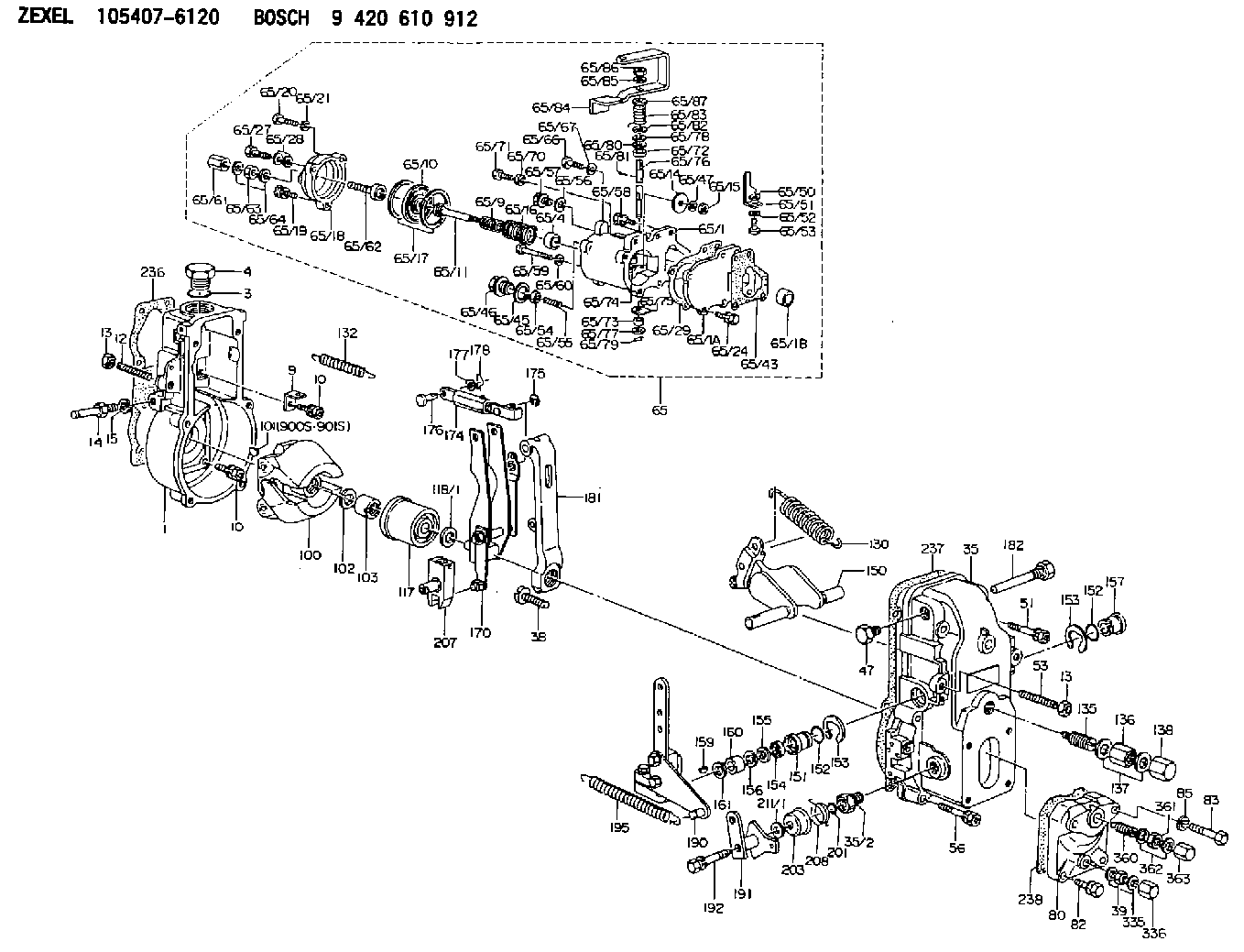

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 139006-4100 BLEEDER SCREW
10. [8] 139006-4100 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 154012-2220 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-8120 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-4900 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154420-5420 MANIFOLD-PRESSURE COMP.
65/1. [1] 154412-7820 DIAPHRAGM HOUSING
65/1A. [1] 154408-2901 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/4. [1] 154413-0500 BUSHING
65/9. [1] 154412-4300 COILED SPRING
65/10. [1] 154400-8220 DIAPHRAGM
65/11. [1] 154400-6101 STOP PIN
65/14. [1] 154406-5500 SLOTTED WASHER
65/15. [1] 013020-6040 UNION NUT M6P1H5
65/16. [1] 154402-6700 COILED SPRING
65/17. [2] 154413-2600 GASKET
65/18. [1] 154404-5000 COVER
65/19. [1] 020106-2040 BLEEDER SCREW M6P1L20
65/20. [2] 029010-6310 BLEEDER SCREW
65/21. [2] 014110-6440 LOCKING WASHER
65/24. [2] 020106-2040 BLEEDER SCREW M6P1L20
65/27. [1] 029731-0180 EYE BOLT
65/28. [2] 026510-1340 GASKET D13.4&10.2T1
65/29. [1] 154390-1700 GASKET
65/43. [1] 154390-1800 GASKET
65/45. [1] 029331-8040 GASKET
65/46. [1] 154406-5800 FLAT-HEAD SCREW
65/47. [1] 014110-6440 LOCKING WASHER
65/50. [1] 154406-6800 PLAIN WASHER
65/51. [1] 154406-6901 CONTROL LEVER
65/52. [1] 014110-4440 LOCKING WASHER
65/53. [1] 010234-0820 HEX-SOCKET-HEAD CAP SCREW
65/54. [1] 013030-6040 UNION NUT M6P1H3.6
65/55. [1] 154404-1500 FLAT-HEAD SCREW L22.00
65/56. [1] 029331-2130 GASKET
65/57. [1] 154406-6500 FLAT-HEAD SCREW
65/58. [1] 020106-2540 BLEEDER SCREW M6P1L25
65/59. [2] 010006-7040 BLEEDER SCREW M6P1L70
65/60. [2] 014110-6440 LOCKING WASHER
65/61. [1] 154035-1600 CAP NUT
65/62. [1] 154404-4400 FLAT-HEAD SCREW
65/63. [1] 013030-6040 UNION NUT M6P1H3.6
65/64. [2] 026506-1040 GASKET D9.9&6.2T1
65/66. [1] 139006-0900 BLEEDER SCREW
65/67. [1] 014110-6440 LOCKING WASHER
65/70. [1] 029240-6010 UNION NUT M6P1.0H5*
65/71. [1] 153141-1600 BLEEDER SCREW
65/72. [1] 139608-0000 PACKING RING
65/73. [1] 139605-0100 PACKING RING
65/74. [1] 154408-9000 CONTROL LEVER
65/75. [1] 154406-7500 CONTROL LEVER
65/76. [1] 154406-8000 LEVER SHAFT
65/77. [1] 029310-5200 SHIM
65/78. [1] 014020-8120 PLAIN WASHER D16&8.5T1.2
65/79. [1] 154372-6500 SAFETY PIN
65/80. [0] 029310-8040 SHIM D13.5&8T0.2
65/80B. [0] 029310-8050 SHIM D13.5&8T0.5
65/81. [1] 025520-1210 SPLIT PIN
65/82. [2] 029300-8320 SHIM
65/83. [1] 154403-9900 COILED SPRING
65/84. [1] 154413-6700 CONTROL LEVER
65/85. [1] 139308-1800 PLAIN WASHER
65/86. [1] 013020-8140 UNION NUT M8P1.25H6.5
65/87. [1] 139308-1800 PLAIN WASHER
80. [1] 154064-1200 COVER
82. [2] 020506-1440 BLEEDER SCREW
83. [2] 020006-3240 BLEEDER SCREW
85. [2] 014110-6440 LOCKING WASHER
100. [1] 154101-0120 FLYWEIGHT
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6400 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-1820 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 139718-0200 O-RING
152. [2] 139718-0200 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-9920 FORK LEVER
174. [1] 154234-9620 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 159231-4900 BEARING PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
178. [1] 155402-3800 SAFETY PIN
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154395-3120 CONTROL LEVER
191. [1] 154382-5520 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
195. [1] 154314-2500 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-3500 GASKET
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2000 CAP NUT
360. [1] 154158-4120 HEADLESS SCREW
361. [1] 029201-2130 UNION NUT M12P1.0H6
362. [2] 026512-1540 GASKET D15.4&12.2T1.50
363. [1] 154159-1200 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106682-3010 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-6120
9 420 610 912

GOVERNOR
* K




Information:


Adjustment of valve clearanceFuel System Bleeding
(1) Loosen the air vent plug of the fuel filter. (approx. 1.5 turns)(2) Move the priming pump for the filter up and down.(3) When fuel flowing from the vent hole no longer contains air bubbles, tighten the air vent plug.
Fuel system bleedingInspection and Adjustment of No-Load Minimum (Low Idling) Speed and Maximum Speed
(a) The following adjustments were inspected and set for each engine on the test bench at the factory, and the set bolts are sealed. These settings should be checked and adjusted only at our designated service shop.(b) After the governor parts are adjusted, all external stoppers must be sealed in the same way as when adjustments were made at the factory.(c) Whether the seals are intact or not has important bearing on the validity of claims under warranty. Be sure to seal all the specified sections.(d) When inspecting or adjusting, be ready to operate the engine stop lever manually in case the engine overruns (engine operation at extremely high speed).
Prior to inspection and adjustment, conduct a warm-up operation until the coolant and oil temperatures rise above 70 °C [158 °F].(1) Starting the engine(a) Pull the speed control lever toward the HIGH SPEED side, and operate the starter switch.(b) The engine ignites when the rotation speed reaches approximately 150 min-1, and the engine speed rises. Operate the speed control lever to maintain the engine speed between 800 and 1000 min-1.(c) After the engine speed stabilizes, return the speed control lever to the low idling position.
Inspection and adjustment of no-load minimum (low idling) speed and maximum speed(2) Low idling setting (no-load minimum rotation speed setting)Hold the speed control lever at the position of no-load minimum rotation speed, then secure the lever in that position using the idling adjustment screw.
If there is speed range which causes dangerous torsional vibration, avoid setting the engine speed in that range.
(3) Governor setting (maximum rotation speed setting)(a) Keep the speed control lever at the position of the specified maximum rotation speed.(b) With the speed control lever held in that position, adjust and set the governor set bolt (maximum rotation speed set screw) to the specified rotation speed).Inspection of V-Belt Tension
(1) Press the V-belt at a midpoint between the alternator and crankshaft pulley to check the mount of belt deflection.
Inspection of V-belt tension(2) If the amount of belt deflection does not conform to the standard value, loosen the adjusting bolt and move the alternator to adjust the belt tension.Engine Break-in Operation
When the engine is overhauled, it should be mounted on a dynamometer and operated for break-in and inspection.Starting Up
(1) Before starting the engine, check the levels of coolant, engine oil and fuel, and bleed the fuel and cooling system.(2) With the fuel supply cut off, operate the starter and crank the engine for about 15 seconds to circulate engine oil.(3) Move the speed control lever slightly in the direction for increased fuel (do not move it to "full injection" position), then turn the starter switch key to the [START]

Have questions with 105407-6120?





Group cross 105407-6120 ZEXEL

Mitsubishi

9 420 611 491
NP-EP/RSV200-1350PQ49/311
ME740879
GOVERNOR
F 01G 29N 0AZ
ME740881
GOVERNOR
9 420 611 492
NP-EP/RSV200-1350PQ49/311
ME741754
GOVERNOR
105407-6120
9 420 610 912

GOVERNOR

Hino

F 019 Z4E 360
NP-EP/RSV200-1450PQ43C312
223204000A
GOVERNOR

Mitsubishi

F 019 Z1E 381
ME741589
GOVERNOR
9 420 611 589
ME742181
GOVERNOR
9 420 611 003
NP-EP/RSV200-1300PQ44C301
ME742223
GOVERNOR
9 420 611 493
NP-EP/RSV200-1300PQ39C301
ME741591
GOVERNOR
F 019 Z4E 361
NP-EP/RSV200-1200PQ36/302
ME741615
GOVERNOR
F 019 Z1E 382
NP-EP/RSV200-1300PQ39/302
ME741931
GOVERNOR
9 420 611 551
NP-EP/RSV200-1350PQ49/311
ME741618
GOVERNOR

Hino

F 019 Z4E 362
NP-EP/RSV200-1300PQ39C312
223204140A
GOVERNOR
