Information governor
BOSCH
9 420 610 910
9420610910
ZEXEL
105407-5922
1054075922
HINO
223204940A
223204940a

Rating:

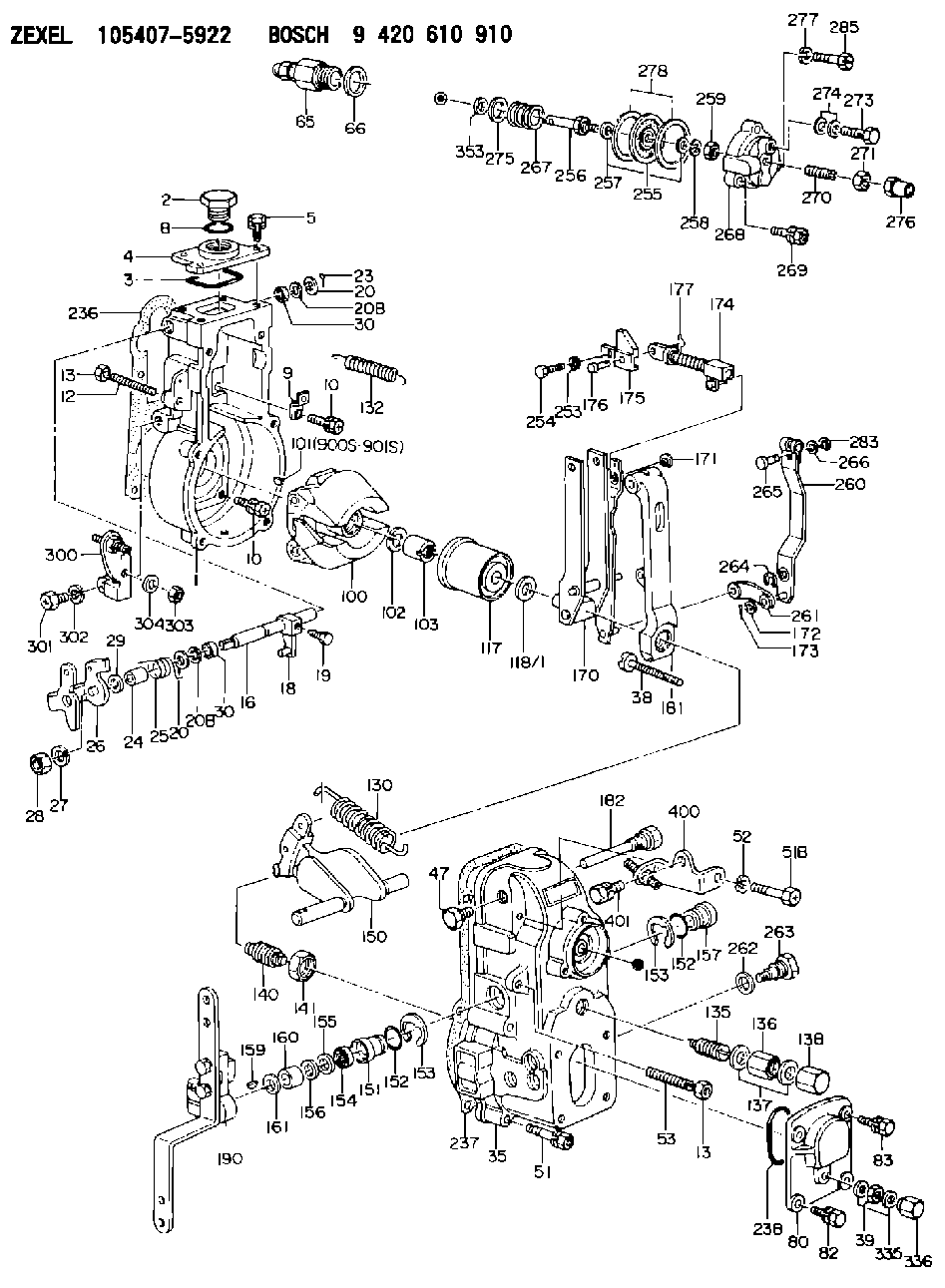

Scheme ###:
1. | [1] | 154004-2822 | GOVERNOR HOUSING |
2. | [1] | 154007-2900 | CAPSULE |
3. | [1] | 154358-2500 | SEAL RING |
4. | [1] | 154063-7900 | COVER |
5. | [4] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
8. | [1] | 029632-5070 | O-RING |
9. | [1] | 154350-6000 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-1100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
16. | [1] | 155004-3600 | LEVER SHAFT |
18. | [1] | 155003-2101 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
23. | [1] | 025520-1210 | SPLIT PIN |
24. | [1] | 154206-2000 | BUSHING |
25. | [1] | 154327-4200 | COILED SPRING |
26. | [1] | 154382-6200 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
29. | [1] | 139408-1500 | SHIM |
29B. | [0] | 139408-1400 | SHIM |
29C. | [0] | 139408-1500 | SHIM |
30. | [2] | 029620-8050 | PACKING RING |
30. | [2] | 029620-8050 | PACKING RING |
35. | [1] | 154022-6020 | GOVERNOR COVER |
38. | [1] | 154031-4800 | FLAT-HEAD SCREW |
39. | [1] | 139208-0400 | UNION NUT |
47. | [1] | 154036-1200 | CAPSULE |
51. | [5] | 020106-5040 | BLEEDER SCREW |
51B. | [1] | 029010-6850 | BLEEDER SCREW |
52. | [1] | 014110-6440 | LOCKING WASHER |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
65. | [1] | 153021-2220 | STOPPING DEVICE |
66. | [1] | 026524-3040 | GASKET |
80. | [1] | 154063-7300 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154101-0020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2900 | GOVERNOR SPRING |
132. | [1] | 154154-0500 | COILED SPRING |
135. | [1] | 154158-0820 | HEADLESS SCREW |
136. | [1] | 029201-2290 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154185-1320 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-7020 | SWIVELLING LEVER |
151. | [1] | 154204-3000 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-3100 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154217-2920 | FORK LEVER |
171. | [1] | 016010-0540 | LOCKING WASHER |
172. | [4] | 029310-5170 | SHIM D8&5.3T0.5 |
173. | [3] | 025520-1210 | SPLIT PIN |
174. | [1] | 154234-6920 | STRAP |
175. | [1] | 154232-2420 | CONNECTOR |
176. | [1] | 159231-4900 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154236-4100 | TENSIONING LEVER |
182. | [1] | 154237-1100 | BEARING PIN |
190. | [1] | 154341-8120 | CONTROL LEVER |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
253. | [1] | 029320-5020 | LOCKING WASHER |
254. | [1] | 010535-1040 | FLAT-HEAD SCREW M5P0.8L10 |
255. | [1] | 154400-7420 | DIAPHRAGM |
256. | [1] | 154400-4800 | STOP PIN |
257. | [2] | 029330-8050 | GASKET |
258. | [1] | 139308-0700 | LOCKING WASHER |
259. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
260. | [1] | 154401-3620 | CONTROL LEVER |
261. | [1] | 154401-1320 | STRAP |
262. | [1] | 026510-1440 | GASKET D13.9&10.2T1 |
263. | [1] | 154401-2100 | BLEEDER SCREW |
264. | [1] | 016010-0540 | LOCKING WASHER |
265. | [1] | 154222-6200 | BEARING PIN |
266. | [1] | 029300-4010 | PLAIN WASHER |
267. | [1] | 154416-1200 | COILED SPRING |
268. | [1] | 154404-5000 | COVER |
269. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
270. | [1] | 154034-1900 | FLAT-HEAD SCREW |
271. | [1] | 023040-6040 | UNION NUT |
273. | [1] | 029731-0180 | EYE BOLT |
274. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
275. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
275B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
276. | [1] | 154035-0320 | CAP NUT |
277. | [1] | 014110-6440 | LOCKING WASHER |
278. | [2] | 154413-2600 | GASKET |
283. | [1] | 016010-0440 | LOCKING WASHER |
285. | [1] | 029010-6310 | BLEEDER SCREW |
300. | [1] | 154359-1320 | BRACKET |
301. | [1] | 020118-1640 | BLEEDER SCREW |
303. | [1] | 154011-1100 | UNION NUT |
304. | [1] | 029300-8320 | SHIM |
335. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
336. | [1] | 154035-2000 | CAP NUT |
353. | [1] | 029310-9080 | SHIM D16&9T1.7 |
400. | [1] | 154375-8120 | BRACKET |
401. | [1] | 020006-1240 | BLEEDER SCREW M6P1L12 4T |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
(5) Removing Alternator
(a) Disconnect the battery cables.(b) Disconnect the lead from terminal B at the rear of the alternator.(c) Remove the alternator connector.(d) Loose the alternator adjusting bolt (1) and support bolt (2), then push the alternator toward the engine and remove the fan belt.(e) Remove the alternator.
Removing alternator(6) Removing Starter
(a) Disconnect the battery's (-) and (+) terminals in that sequence.(b) Disconnect the starter wiring (1).(c) Remove the starter's two mounting bolts (2), then remove the starter (3).
Removing starter(7) Removing Oil Filter
(a) The oil filter (2) must be replaced every 100 hours of use.(b) Remove the oil filter using a filter wrench (1).
Removing oil filter(8) Removing Fuel Filter
(a) Remove the fuel hose (1) that leads to the fuel injection pump.(b) Remove the fuel filter (2) from the engine.
Removing fuel filter(9) Removing Fuel Pipes
(a) Remove the clamps from the four fuel pipes (1), then disconnect the fuel pipes from the engine and from the injection pump.(b) Remove the lock nuts (2) and the fuel leak-off pipe (3) from the injection nozzle.
Removing Fuel Pipes
To keep dirt out of the fuel system, fit rubber caps over the parts of the injection pump and injector inlet connectors from which the injection pipes are disconnected.
(10) Removing Injection Pump
Removing Injection Pump(1) Fuel hose(2) Fuel pipe(3) Tie rod cover(4) Tie rod spring(5) Tie rod(6) Injection pump(7) Adjustment shim(8) Control rack pin(a) Remove the tie rod cover (3).(b) Using long-nosed pliers, remove the tie rod spring (4) from the control rack pin (8) and from the governor lever pin.(c) Remove the tie rod (5).
Removing tie rod(d) Remove the injection pump (6) and the adjustment shim (7).
Removing injection pump(11) Removing ETS Solenoid
Loose the nut (1) and remove the ETS solenoid (2).
Removing ETS solenoid(12) Removing Oil Pump
Remove the oil pump's four mounting bolts, then remove the oil pump (1).
Removing oil pump(13) Removing Injection Nozzle
(a) Remove all lock nuts (1) (4 pieces).(b) Remove fuel leak-off pipe (2) and fuel return gasket (3).(c) Remove fuel injection nozzle (4) and holder gasket (5).
Removing injection nozzleRefitting Accessories
General Points
Refit accessories by following the removal procedures in reverse. After refitting accessories, perform the following:(1) Pour the specified amount of engine oil into the engine.(2) Pour coolant into the coolant system.(3) To facilitate starting, pour engine oil into the governor's hydraulic oil filter via the hole of the air bleeding plug.(4) Make sure no oil or coolant is leaking from joints and connections.(5) Air-bleed the fuel system.(6) After refitting the injection pump (see the instructions below), be sure to inspect and adjust the injection timing.Installing Injection Pump
Installation should be performed basically by following the removal procedure in reverse. The following operations must also be performed.(1) Bleeding Air from Fuel System
Bleeding air from fuel system(a) Feed fuel to the engine by turning the key to the ON position. Then, loosen the air vent screw (1), allow air in the filter to be expelled, and retighten the screw.(b) Loosen air vent screws (2) and (3) on the injection pump in that sequence to bleed air from the
(a) Disconnect the battery cables.(b) Disconnect the lead from terminal B at the rear of the alternator.(c) Remove the alternator connector.(d) Loose the alternator adjusting bolt (1) and support bolt (2), then push the alternator toward the engine and remove the fan belt.(e) Remove the alternator.
Removing alternator(6) Removing Starter
(a) Disconnect the battery's (-) and (+) terminals in that sequence.(b) Disconnect the starter wiring (1).(c) Remove the starter's two mounting bolts (2), then remove the starter (3).
Removing starter(7) Removing Oil Filter
(a) The oil filter (2) must be replaced every 100 hours of use.(b) Remove the oil filter using a filter wrench (1).
Removing oil filter(8) Removing Fuel Filter
(a) Remove the fuel hose (1) that leads to the fuel injection pump.(b) Remove the fuel filter (2) from the engine.
Removing fuel filter(9) Removing Fuel Pipes
(a) Remove the clamps from the four fuel pipes (1), then disconnect the fuel pipes from the engine and from the injection pump.(b) Remove the lock nuts (2) and the fuel leak-off pipe (3) from the injection nozzle.
Removing Fuel Pipes
To keep dirt out of the fuel system, fit rubber caps over the parts of the injection pump and injector inlet connectors from which the injection pipes are disconnected.
(10) Removing Injection Pump
Removing Injection Pump(1) Fuel hose(2) Fuel pipe(3) Tie rod cover(4) Tie rod spring(5) Tie rod(6) Injection pump(7) Adjustment shim(8) Control rack pin(a) Remove the tie rod cover (3).(b) Using long-nosed pliers, remove the tie rod spring (4) from the control rack pin (8) and from the governor lever pin.(c) Remove the tie rod (5).
Removing tie rod(d) Remove the injection pump (6) and the adjustment shim (7).
Removing injection pump(11) Removing ETS Solenoid
Loose the nut (1) and remove the ETS solenoid (2).
Removing ETS solenoid(12) Removing Oil Pump
Remove the oil pump's four mounting bolts, then remove the oil pump (1).
Removing oil pump(13) Removing Injection Nozzle
(a) Remove all lock nuts (1) (4 pieces).(b) Remove fuel leak-off pipe (2) and fuel return gasket (3).(c) Remove fuel injection nozzle (4) and holder gasket (5).
Removing injection nozzleRefitting Accessories
General Points
Refit accessories by following the removal procedures in reverse. After refitting accessories, perform the following:(1) Pour the specified amount of engine oil into the engine.(2) Pour coolant into the coolant system.(3) To facilitate starting, pour engine oil into the governor's hydraulic oil filter via the hole of the air bleeding plug.(4) Make sure no oil or coolant is leaking from joints and connections.(5) Air-bleed the fuel system.(6) After refitting the injection pump (see the instructions below), be sure to inspect and adjust the injection timing.Installing Injection Pump
Installation should be performed basically by following the removal procedure in reverse. The following operations must also be performed.(1) Bleeding Air from Fuel System
Bleeding air from fuel system(a) Feed fuel to the engine by turning the key to the ON position. Then, loosen the air vent screw (1), allow air in the filter to be expelled, and retighten the screw.(b) Loosen air vent screws (2) and (3) on the injection pump in that sequence to bleed air from the
