105407-5470 ZEXEL 9 420 613 480 BOSCH GOVERNOR 9420613480 1054075470 223203530a

Information governor

BOSCH 9 420 613 480 9420613480

ZEXEL 105407-5470 1054075470

ISUZU 223203530A 223203530a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-5470 zexel genuine, new aftermarket engine parts with delivery

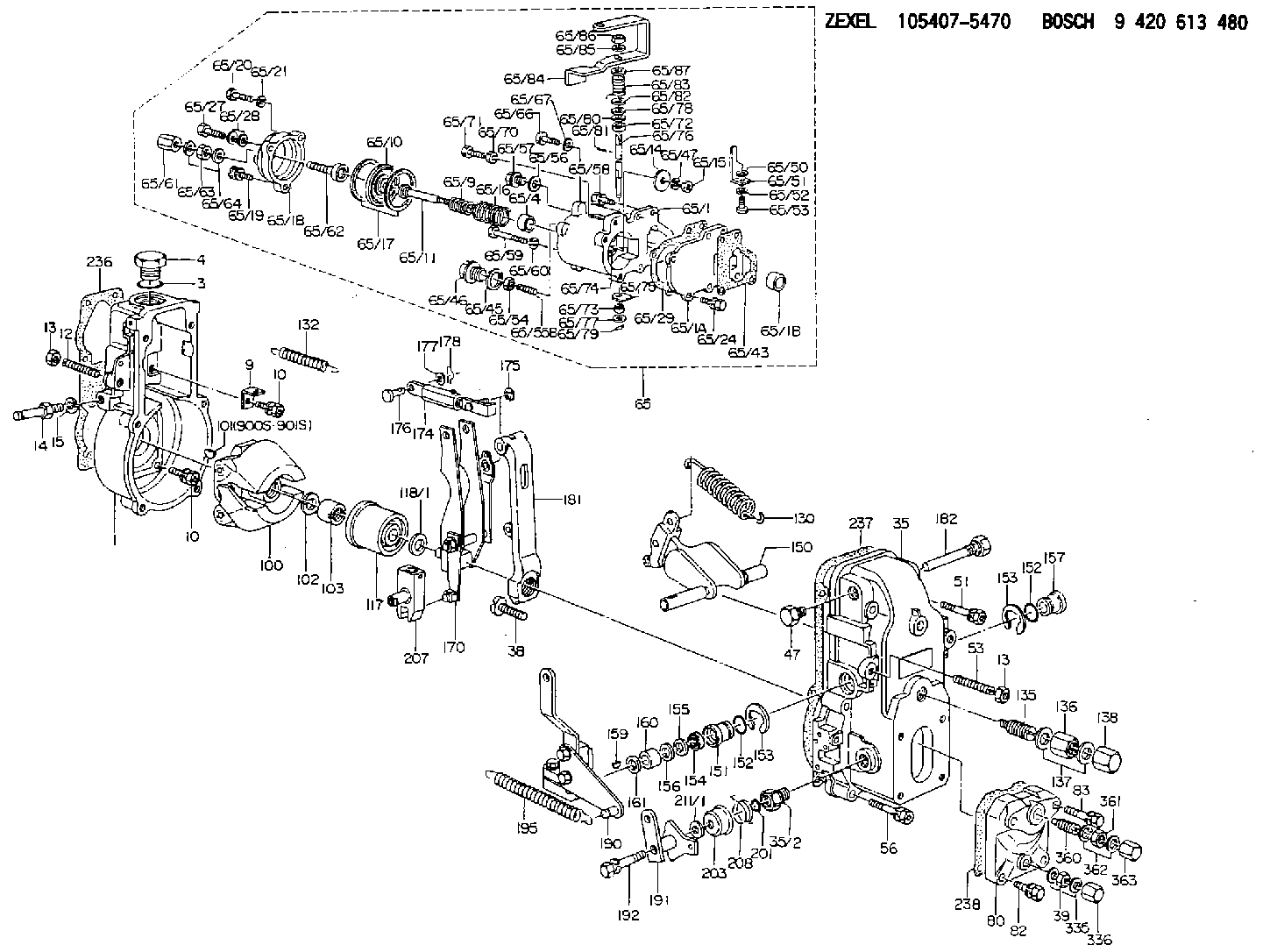

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-8120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-4900	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154419-9821	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-7820	DIAPHRAGM HOUSING
65/1A.	[1]	154408-2901	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154412-4300	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154400-6101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-7900	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
65/20.	[2]	029010-6310	BLEEDER SCREW
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-1700	GASKET
65/43.	[1]	154390-1800	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154406-6901	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[1]	020106-2540	BLEEDER SCREW M6P1L25
65/59.	[2]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[2]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/66.	[1]	139006-0900	BLEEDER SCREW
65/67.	[1]	014110-6440	LOCKING WASHER
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	153141-1600	BLEEDER SCREW
65/72.	[1]	139608-0000	PACKING RING
65/73.	[1]	139605-0100	PACKING RING
65/74.	[1]	154408-9000	CONTROL LEVER
65/75.	[1]	154406-7500	CONTROL LEVER
65/76.	[1]	154406-8000	LEVER SHAFT
65/77.	[1]	029310-5200	SHIM
65/78.	[1]	014020-8120	PLAIN WASHER D16&8.5T1.2
65/79.	[1]	154372-6500	SAFETY PIN
65/80.	[0]	029310-8040	SHIM D13.5&8T0.2
65/80B.	[0]	029310-8050	SHIM D13.5&8T0.5
65/81.	[1]	025520-1210	SPLIT PIN
65/82.	[2]	029300-8320	SHIM
65/83.	[1]	154403-9900	COILED SPRING
65/84.	[1]	154413-6700	CONTROL LEVER
65/85.	[1]	139308-1800	PLAIN WASHER
65/86.	[1]	013020-8140	UNION NUT M8P1.25H6.5
65/87.	[1]	139308-1800	PLAIN WASHER
80.	[1]	154064-1200	COVER
82.	[2]	029020-6270	BLEEDER SCREW
83.	[2]	020006-3240	BLEEDER SCREW
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1090	SHIM D16&11T0.3
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-2720	FORK LEVER
174.	[1]	154234-9620	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	159231-4900	BEARING PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
178.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154349-3220	CONTROL LEVER
191.	[1]	154367-6620	CONTROL LEVER
192.	[1]	020006-3540	BLEEDER SCREW
195.	[1]	154314-2500	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154390-3500	GASKET
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
360.	[1]	154158-4120	HEADLESS SCREW
361.	[1]	029201-2130	UNION NUT M12P1.0H6
362.	[2]	026512-1540	GASKET D15.4&12.2T1.50
363.	[1]	154159-1200	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-8681 as GOVERNOR

106671-8682

106671-8930

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-5470
105407-5471

9 420 613 480

223203530A ISUZU

GOVERNOR
* K

105407-5470
105407-5471

9 420 613 480

223203530A HINO

GOVERNOR
* K

Information:

REM09-03
Reman
January 2009 CATERPILLAR REMAN ANNOUNCES AN APPEARANCE CHANGE TO CERTAIN MECHANICAL
UNIT FUEL INJECTORS
Announcement
The Caterpillar Reman Products Group introduces a new metal deposition process around the bracket for certain mechanical unit injectors. This new process will alter the appearance of the remanufactured mechanical unit injectors. Validation tests confirm the change will not alter quality, reliability, fit or performance.
Acceptable appearances with this new metal deposition process are as shown below (see figures 1 &2).
Effective January 2009, this appearance change will affect the following part numbers:
Features And Benefits
Cat? Reman Fuel Injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these remanufactured fuel injectors. Cat Reman Fuel Injectors provide immediate, off-the-shelf availability at a fraction of the new price.
Core Acceptance
The Core Acceptance Criteria for Caterpillar Reman Fuel Injectors is simple, visual, and does not require special tools. Consult your Unit Injectors - Mechanical Core Acceptance Criteria SELD0030-04 for complete details.
Warranty
Please consult the appropriate Cat parts warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all Cat Reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website: catreman.cat.com.
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Technical Help Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
PELJ0987 CATERPILLAR? ?2009 Caterpillar
