105407-5270 ZEXEL 9 420 611 935 BOSCH GOVERNOR 9420611935 1054075270 1910196306




Information governor

BOSCH 9 420 611 935 9420611935
ZEXEL 105407-5270 1054075270
NISSAN-DIESEL 1910196306 1910196306
105407-5270 GOVERNOR
Rating:
74
Buy GOVERNOR 105407-5270 zexel genuine, new aftermarket engine parts with delivery

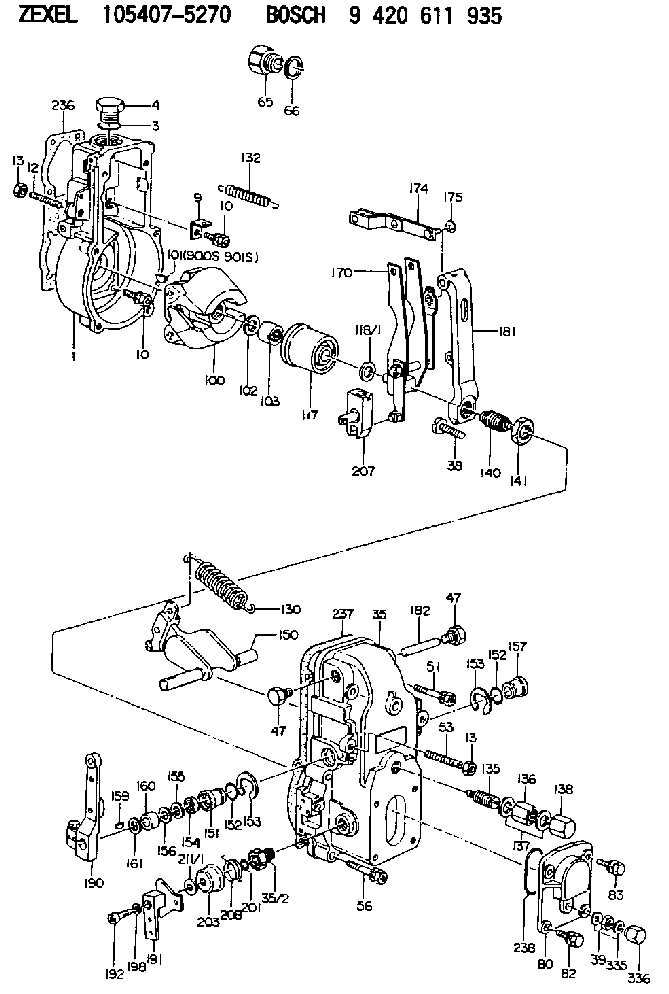

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154063-1400 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0120 FLYWEIGHT
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-1620 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-3320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-9920 FORK LEVER
174. [1] 154230-2920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154309-6120 CONTROL LEVER
191. [1] 154364-7520 CONTROL LEVER
192. [1] 010206-1440 HEX-SOCKET-HEAD CAP SCREW M6P1L14
198. [1] 029320-6010 LOCKING WASHER
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106691-0521 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-5270
9 420 611 935
NP-EP/RSV200-1300PQ39/302
1910196306  NISSAN-DIESEL
GOVERNOR
K




Information:


Information Release Memo REM03-03
Reman
February 2003 REMANUFACTURED FUEL INJECTORS FOR C10, C12 AND C15 ON-HIGHWAY TRUCK APPLICATIONS Announcement The Caterpillar Remanufactured Products Group announces the expansion of the remanufactured injector product line to include coverage for various C10, C12, and C15, On-Highway Truck Engine applications. Coverage The addition of these injectors provides dealers with an additional repair option to support various C10, C12, and C15, On-Highway Truck Engine applications for engines produced after September 2002. Please consult your NPR or Reman Cross Reference for exact model coverage. Features And Benefits Cat? Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new price. Features
All critical engineering changes and updates included
Worldwide availability through Caterpillar? parts distribution system
Backed by Cat warranty
Benefits
Improved reliability and performance
Customer access regardless of location
Consistent support Core Acceptance Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, and has an acceptable part number. Consult your Core Acceptance Guide for complete details. Warranty Please consult the appropriate warranty statement for your area. Core Management Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail. For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help.
PELJ0141 CATERPILLAR? ?2003 Caterpillar

Have questions with 105407-5270?





Group cross 105407-5270 ZEXEL

F 019 Z9E 671

GOVERNOR

Nissan-Diesel

F 019 Z4E 351
NP-EP/RSV200-1450PQ43/302
1910196315
GOVERNOR
9 420 613 477

GOVERNOR

Mitsubishi

9 420 613 809
ME731520
GOVERNOR
F 019 Z4E 352
NP-EP/RSV200-1300PQ39/311
ME740390
GOVERNOR

Yanmar

9 420 612 752
NP-EP/RSV200-1000PQ38/312
12665451160
GOVERNOR
9 420 612 753

GOVERNOR

Yanmar

9 420 614 599
NP-EP/RSV200-1000PQ38/312
12665451170
GOVERNOR

Isuzu

9 420 612 859
NP-EP/RSV200-1450PQ43/312
1157707250
GOVERNOR
9 420 612 860
NP-EP/RSV200-1600PQ21C302
1157707270
GOVERNOR

Nissan-Diesel

105407-5270
9 420 611 935
NP-EP/RSV200-1300PQ39/302
1910196306
GOVERNOR

Mitsubishi

F 019 Z4E 353
NP-EP/RSV200-1300PQ44/311
ME731537
GOVERNOR

Nissan-Diesel

9 420 611 936
NP-EP/RSV200-1600PQ21/302
1910196309
GOVERNOR
