105407-5201 ZEXEL F 019 Z4E 351 BOSCH GOVERNOR f019z4e351 1054075201 1910196315

Information governor

BOSCH F 019 Z4E 351 f019z4e351

ZEXEL 105407-5201 1054075201

NISSAN-DIESEL 1910196315 1910196315

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-5201 zexel genuine, new aftermarket engine parts with delivery

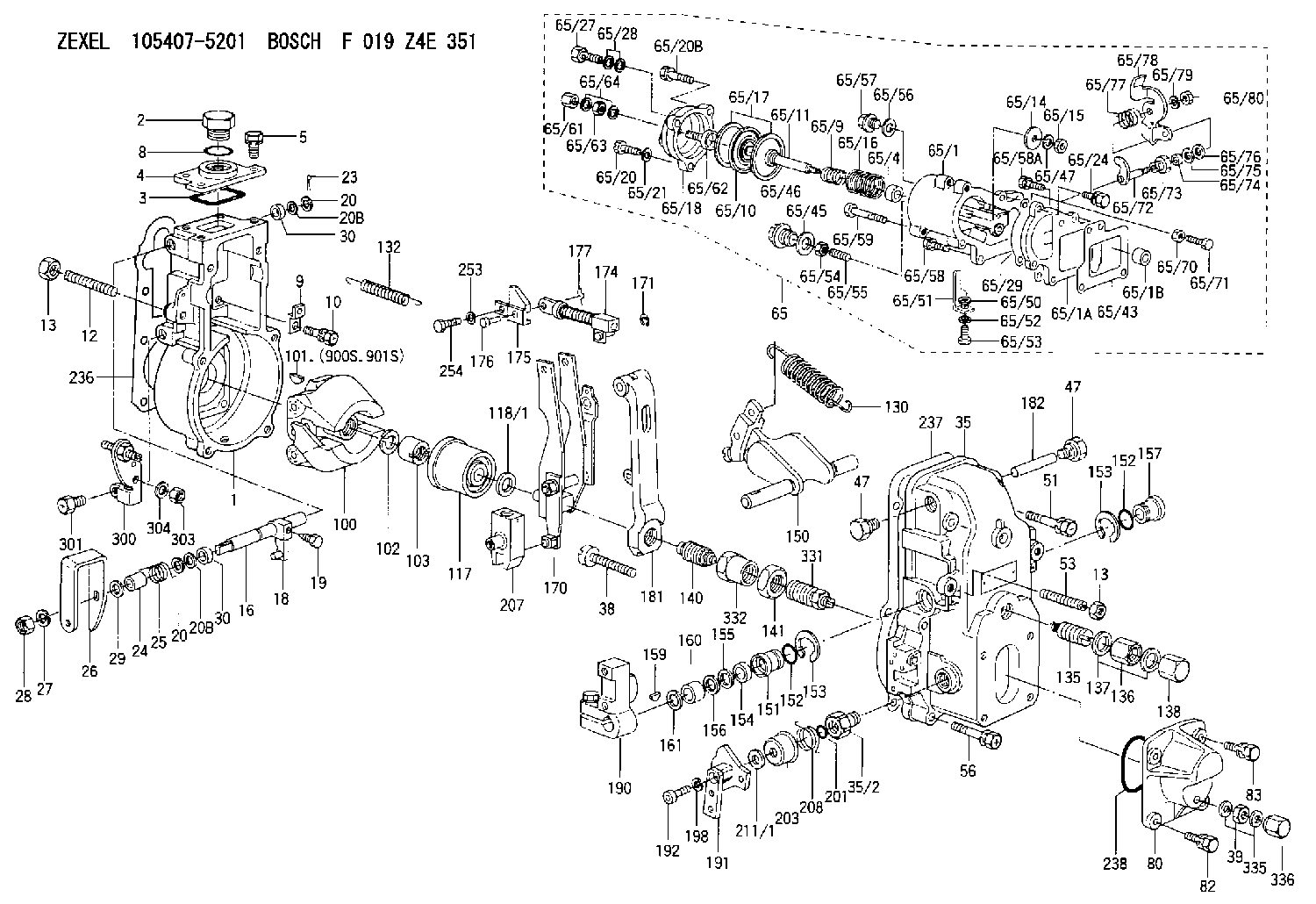

Scheme ###:

1.	[1]	154004-2822	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154358-2500	SEAL RING
4.	[1]	154064-4500	COVER
5.	[4]	020006-1640	BLEEDER SCREW M6P1L16 4T
8.	[1]	029632-5070	O-RING
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
20C.	[1]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-6300	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154380-9800	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1500	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[2]	029620-8050	PACKING RING
30.	[2]	029620-8050	PACKING RING
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154420-3821	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-9520	GOVERNOR HOUSING
65/1A.	[1]	154412-0201	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154414-8800	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154412-4101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154411-4100	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-2200	GASKET
65/43.	[1]	154390-2300	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154412-9800	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55.	[1]	154404-1500	FLAT-HEAD SCREW L22.00
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2840	BLEEDER SCREW
65/58A.	[1]	020106-1440	BLEEDER SCREW M6P1.0L14
65/59.	[1]	139006-9300	BLEEDER SCREW
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	029000-6290	BLEEDER SCREW M6P1.0L19
65/72.	[1]	154413-0021	LEVER SHAFT
65/73.	[1]	154413-0100	BUSHING
65/74.	[1]	139608-0000	PACKING RING
65/75.	[1]	154413-0200	PLAIN WASHER
65/76.	[0]	029310-8030	SHIM D13.5&8T0.1
65/76B.	[0]	029310-8040	SHIM D13.5&8T0.2
65/77.	[1]	154413-0301	COILED SPRING
65/78.	[1]	154413-0400	CONTROL LEVER
65/79.	[1]	014110-8440	LOCKING WASHER
65/80.	[1]	013020-8140	UNION NUT M8P1.25H6.5
80.	[1]	154063-5100	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-3620	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-9920	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-5120	STRAP
175.	[1]	154232-2420	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0020	CONTROL LEVER
191.	[1]	154364-7520	CONTROL LEVER
192.	[1]	010206-1440	HEX-SOCKET-HEAD CAP SCREW M6P1L14
198.	[1]	029320-6010	LOCKING WASHER
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
300.	[1]	154359-1320	BRACKET
301.	[1]	020118-1640	BLEEDER SCREW
303.	[1]	154011-1100	UNION NUT
304.	[1]	029300-8320	SHIM
331.	[1]	154179-9120	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-5231 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-5201

F 019 Z4E 351
NP-EP/RSV200-1450PQ43/302

1910196315 NISSAN-DIESEL

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

ACTION REQUIRED
Take the following actions before or after a failure occurs on one or more injectors in any of the machines listed in this service letter.
- If one or more injectors fail it may be necessary to replace up to 6 injectors at the time of repair.
There will be situations when all 6 injectors do not have to be replaced. Refer to next paragraph to determine which injectors should be replaced.
- If an injector repair has previously been performed after approximately 01Oct07 on any of the listed machines, only the injectors that were not replaced at that time should be replaced. This should further be verified by comparing the injector serial numbers in the engine to a range of 3B115776403B to 3B11676551F9. Disregard the first and last two characters in the serial number (in this case "3B" and "3B" in the first serial number and "3B" and "F9" in the second serial number). The reason for verifying the serial number range is due to a batch change of the internal part that is failing. The change was made after serial number 3B11676551F9.
Only injectors falling within the range of 11577640-11676551 should be replaced.
- If the suspect injector can not be identified by using the automatic cylinder cutout test use the two methods below.
- First, run a manual cylinder cutout test at a high engine speed with some load on the engine. When the injector that has failed is cutout, the sound of the engine should be more normal as opposed to the loud knocking heard when the failed injector is active. The second method is to unplug the wiring harness at the valve cover base that sends current to the injector solenoids as well as the harness connection for the injection actuation pressure sensor. By making these disconnections, the fuel injectors will not fire and the HEUI pump will go to maximum actuation pressure. Then remove the valve cover and crank the engine. The injectors that have failed should expel more oil (from the HEUI System) than those that are not failed.
-Refer to RENR9579 for removal/install procedure of the unit injector.
-The serial number of all injectors replaced in a machine covered under this service letter must be documented in the claims story.
SERVICE CLAIM ALLOWANCES
Product smu/age
