105407-5050 ZEXEL F 019 Z9E 496 BOSCH GOVERNOR f019z9e496 1054075050

Information governor

BOSCH F 019 Z9E 496 f019z9e496

ZEXEL 105407-5050 1054075050

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-5050 zexel genuine, new aftermarket engine parts with delivery

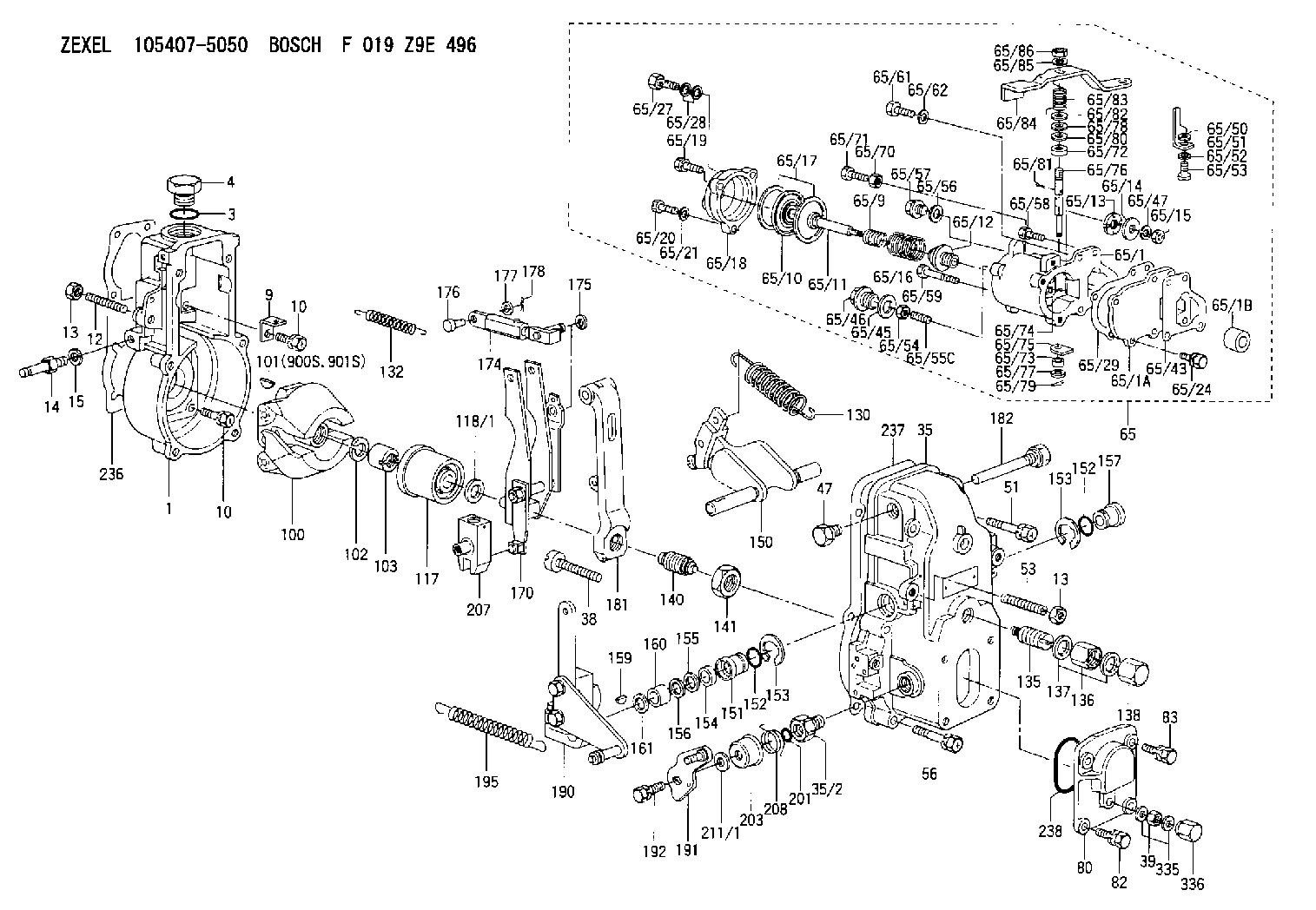

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-8120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-4300	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154417-9420	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-8920	DIAPHRAGM HOUSING
65/1A.	[1]	154408-2901	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/9.	[1]	154402-8800	COILED SPRING
65/10.	[1]	154400-7520	DIAPHRAGM
65/11.	[1]	154400-6101	STOP PIN
65/12.	[1]	154406-5300	GUIDE SLEEVE
65/13.	[1]	154406-5400	UNION NUT
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-8900	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-4920	COVER
65/19.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/20.	[1]	029010-6310	BLEEDER SCREW
65/21.	[1]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-1700	GASKET
65/43.	[1]	154390-1800	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154406-6901	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55C.	[1]	154404-1700	FLAT-HEAD SCREW L30.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[1]	020106-2540	BLEEDER SCREW M6P1L25
65/59.	[2]	139006-9300	BLEEDER SCREW
65/61.	[1]	029010-6310	BLEEDER SCREW
65/62.	[1]	014110-6440	LOCKING WASHER
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	029030-6020	BLEEDER SCREW M6P1.0L18
65/72.	[1]	139608-0000	PACKING RING
65/73.	[1]	139605-0100	PACKING RING
65/74.	[1]	154408-9000	CONTROL LEVER
65/75.	[1]	154406-7500	CONTROL LEVER
65/76.	[1]	154406-8000	LEVER SHAFT
65/77.	[1]	029310-5200	SHIM
65/78.	[1]	014020-8120	PLAIN WASHER D16&8.5T1.2
65/79.	[1]	154372-6500	SAFETY PIN
65/80.	[0]	029310-8040	SHIM D13.5&8T0.2
65/80B.	[0]	029310-8050	SHIM D13.5&8T0.5
65/81.	[1]	025520-1210	SPLIT PIN
65/82.	[2]	029300-8320	SHIM
65/83.	[1]	154403-9900	COILED SPRING
65/84.	[1]	154406-7700	CONTROL LEVER
65/85.	[1]	014110-8440	LOCKING WASHER
65/86.	[1]	013020-8140	UNION NUT M8P1.25H6.5
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-3420	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-3520	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-2720	FORK LEVER
174.	[1]	154234-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	159231-4900	BEARING PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
178.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154343-2620	CONTROL LEVER
191.	[1]	154367-0920	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2600	COILED SPRING
201.	[1]	139710-0500	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4980 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-5050
105407-5051

F 019 Z9E 496

GOVERNOR
* K
