105407-5041 ZEXEL 9 420 610 906 BOSCH GOVERNOR 9420610906 1054075041 223203411a




Information governor

BOSCH 9 420 610 906 9420610906
ZEXEL 105407-5041 1054075041
HINO 223203411A 223203411a
105407-5041 GOVERNOR
Rating:
36
Buy GOVERNOR 105407-5041 zexel genuine, new aftermarket engine parts with delivery

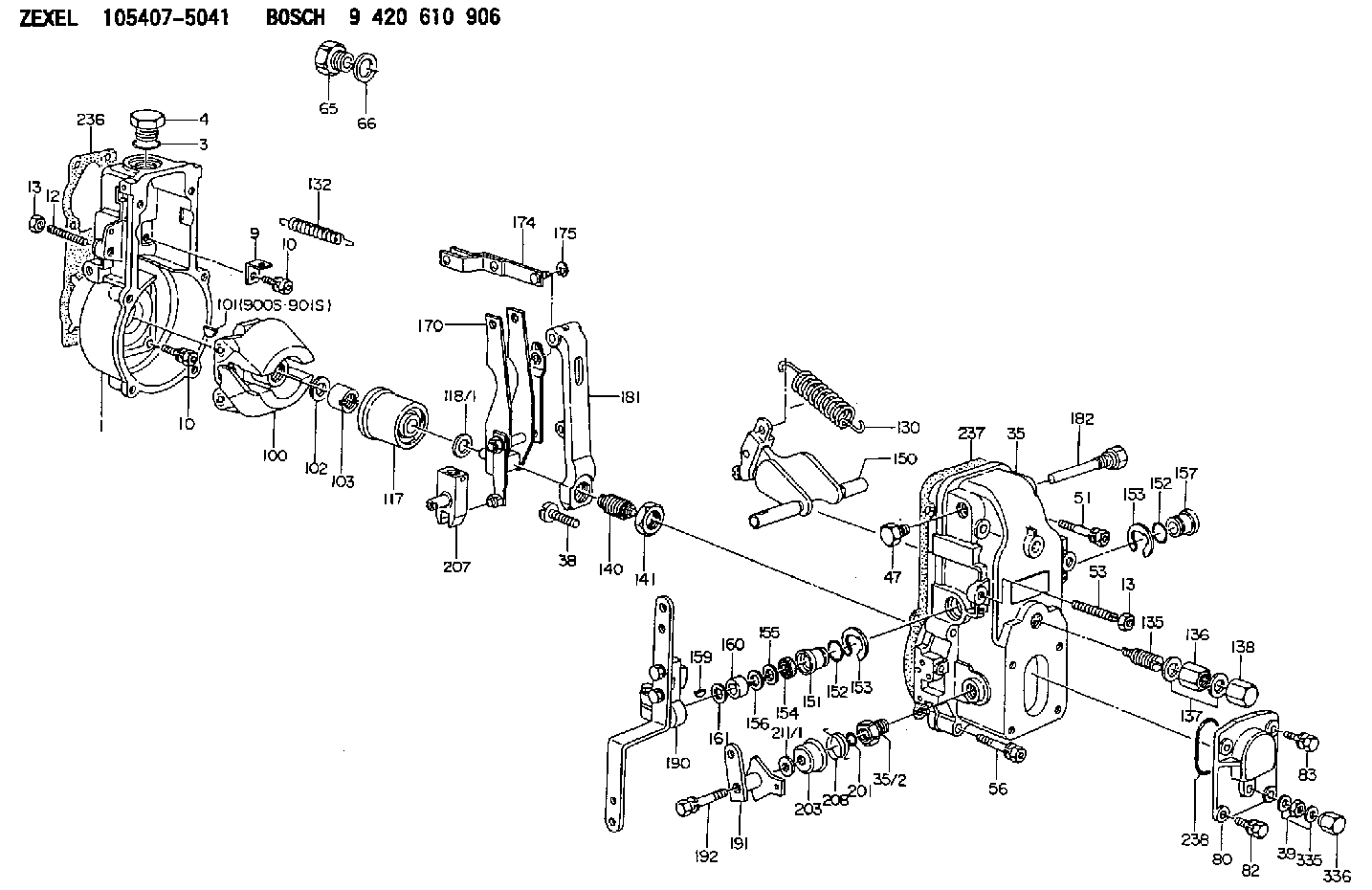

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-1200 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-8120 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-4300 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154063-7300 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-1320 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-2720 FORK LEVER
174. [1] 154230-2920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154341-8120 CONTROL LEVER
191. [1] 154367-8020 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-3400 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2000 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-8601 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-5041
9 420 610 906
NP-EP/RSV200-1300PQ44C312
223203411A  HINO
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:


REM05-07
Reman
January 2005 APPEARANCE CHANGE TO REMAN 3400 HEUI? INJECTORS Announcement The Caterpillar Remanufactured Products Group announces an appearance change on selected Cat Reman 3400 HEUI injectors effective 01/31/05. In order to improve appearance and salvage of injector stator covers, Cat Reman will begin using stator cover marking plates on selected 3400 HEUI injectors. Currently, Cat Reman must remove the old part number and codes from the stator cover by grinding. This process can only be done once and often opens porosity in the stator causing scrap or unacceptable appearance. Effective 01/31/05 Cat Reman will begin using a disposable marking plate. See the pictures below. The cover and stator are not serviced separately; the picture is for clarity only. This change will not alter fit or performance in any way. Part Numbers ImpactedThe table below lists part numbers impacted by this change.
Reman Part Numbers Description
10R1265 FUEL INJECTOR GP
10R1266 FUEL INJECTOR GP
10R1267 FUEL INJECTOR GP Features and Benefits
Cat Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar? parts distribution system
Customer access regardless of location
Backed by Cat warranty
Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com
PELJ0493 CATERPILLAR? ?2005 Caterpillar

Have questions with 105407-5041?





Group cross 105407-5041 ZEXEL

9 420 613 207
NP-EP/RSV200-1300PQ44C312

GOVERNOR
9 420 612 437
NP-EP/RSV200-1300PQ44C312

GOVERNOR

Hino

9 420 613 476
NP-EP/RSV200-1450PQ43/312
223203230A
GOVERNOR
9 420 612 112
NP-EP/RSV200-1300PQ39C312
223203610A
GOVERNOR
9 420 612 112
NP-EP/RSV200-1300PQ39C312
223203640A
GOVERNOR
9 420 613 681
223203410A
GOVERNOR
105407-5041
9 420 610 906
NP-EP/RSV200-1300PQ44C312
223203411A
GOVERNOR
F 019 Z9E 496

GOVERNOR
F 019 Z3E 898
NP-EP/RSV200-1300PQ39C312

GOVERNOR


GOVERNOR
9 420 614 292

GOVERNOR


GOVERNOR
9 420 610 360
NP-EP/RSV200-1300PQ39C311

GOVERNOR


GOVERNOR
9 420 610 292
NP-EP/RSV200-1450PQ43C302

GOVERNOR
9 420 613 208
NP-EP/RSV200-1300PQ39C312

GOVERNOR
9 420 612 438

GOVERNOR
