105407-4830 ZEXEL F 019 Z4E 348 BOSCH GOVERNOR f019z4e348 1054074830 me730322

Information governor

BOSCH F 019 Z4E 348 f019z4e348

ZEXEL 105407-4830 1054074830

MITSUBISHI ME730322 me730322

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-4830 zexel genuine, new aftermarket engine parts with delivery

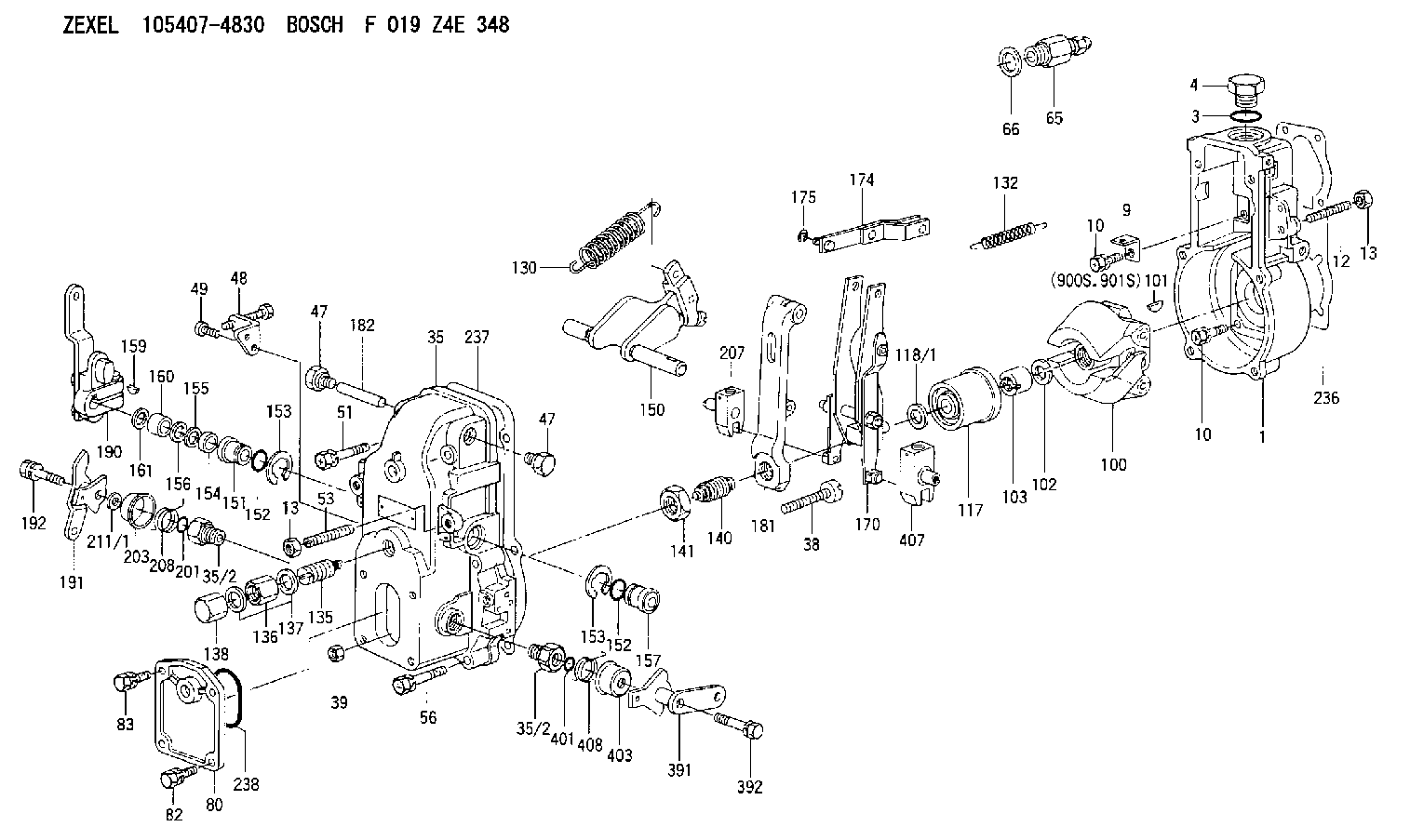

Scheme ###:

1.	[1]	154004-6100	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154501-0020	GOVERNOR COVER
35/2.	[2]	154321-0400	BUSHING
35/2.	[2]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154370-4120	BRACKET
49.	[2]	012255-1040	FLAT-HEAD SCREW M5P0.8L10
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153021-3020	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-4900	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-3420	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154176-7220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154217-9120	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154303-9920	CONTROL LEVER
191.	[1]	154380-1820	CONTROL LEVER
192.	[1]	020006-4040	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
391.	[1]	154380-4120	CONTROL LEVER
392.	[1]	020006-3540	BLEEDER SCREW
401.	[1]	029631-0030	O-RING &9.8W2.3
403.	[1]	154322-0100	CAP
407.	[1]	154324-2820	CONTROL LEVER
408.	[1]	154327-7300	COILED SPRING
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106861-2540 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-4830

F 019 Z4E 348
NP-EP/RSV200-1300PQ44/312

ME730322 MITSUBISHI

GOVERNOR
K

Information:

Fault Finding Chart
Key to Fault Finding Chart
1. Battery capacity low.2. Bad electrical connections.3. Faulty starter motor.4. Incorrect grade of lubricating oil.5. Low cranking speed.6. Fuel tank empty.7. Faulty stop control operation.8. Blocked fuel feed pipe.9. Faulty fuel lift pump.10. Choked fuel filter.11. Restriction in air cleaner or induction system.12. Air in fuel system.13. Faulty fuel injection pump.14. Faulty atomisers or incorrect type.15. Incorrect use of cold start equipment.16. Faulty cold starting equipment.17. Broken fuel injection pump drive.18. Incorrect fuel pump timing.19. Incorrect valve timing.20. Poor compression.21. Blocked fuel tank vent.22. Incorrect type or grade of fuel.23. Sticking throttle or restricted movement.24. Exhaust pipe restriction.25. Cylinder head gasket leaking.26. Overheating.27. Cold running.28. Incorrect tappet adjustment.29. Sticking valves.30. Incorrect high pressure pipes.31. Worn cylinder bores.32. Pitted valves and seats.33. Broken, worn or sticking piston ring/s.34. Worn valve stems and guides.35. Overfull air cleaner or use of incorrect grade of oil.36. Worn or damaged bearings.37. Insufficient oil in sump.38. Inaccurate gauge.39. Oil pump worn.40. Pressure relief valve sticking open.41. Pressure relief valve sticking closed.42. Broken relief valve spring.43. Faulty suction pipe.44. Choked oil filter.45. Piston seizure/pick up.46. Incorrect piston height.47. Damaged fan.48. Faulty engine mounting (Housing).49. Incorrect aligned flywheel housing, or flywheel.50. Faulty thermostat.51. Restriction in water jacket.52. Loose fan belt.53. Choked radiator.54. Faulty water pump.55. Choked breather pipe.56. Damaged valve stem oil deflectors (if fitted).57. Coolant level too low.58. Blocked sump strainer.59. Broken valve spring.60. Fault in exhauster or vacuum pipe leaks.61. Turbocharger impeller damaged or dirty.62. Turbocharger lubricating oil seal leaks.63. Induction system leaks (turbocharged engines).
