105407-3990 ZEXEL 9 420 610 137 BOSCH GOVERNOR 9420610137 1054073990 1910196868

Information governor

BOSCH 9 420 610 137 9420610137

ZEXEL 105407-3990 1054073990

NISSAN-DIESEL 1910196868 1910196868

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3990 zexel genuine, new aftermarket engine parts with delivery

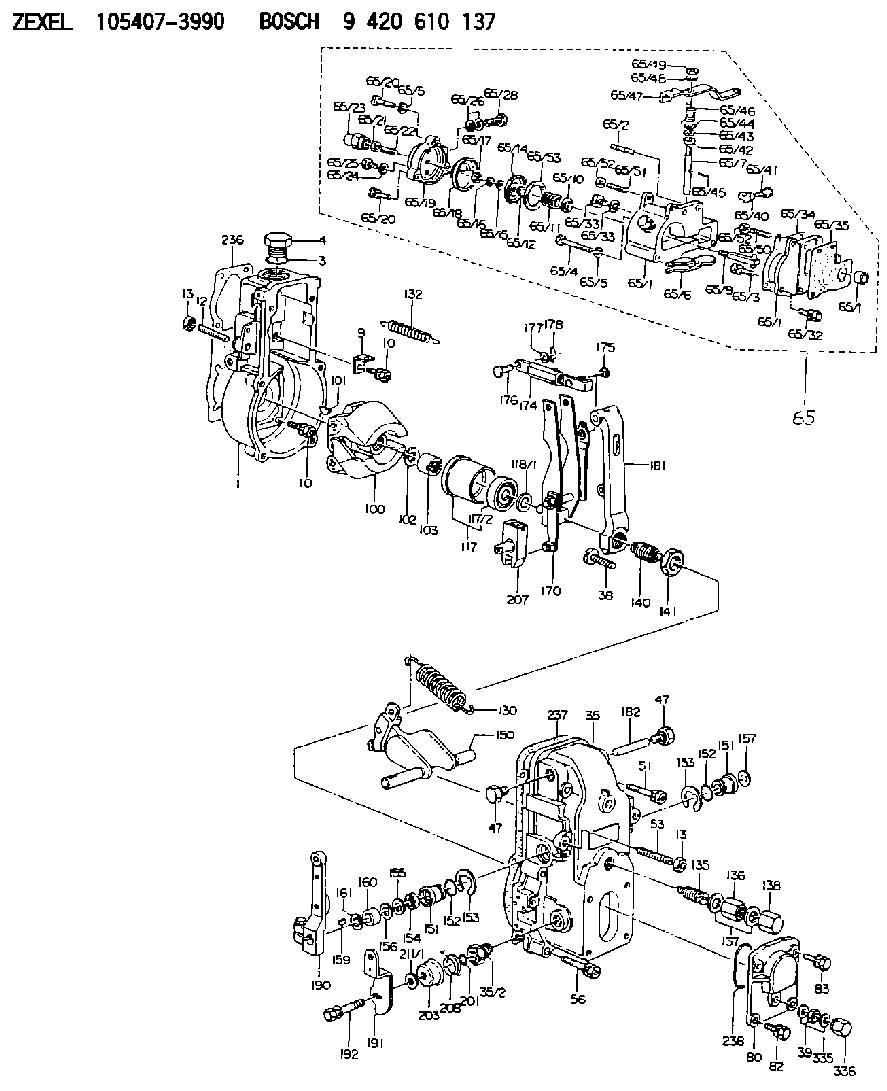

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154407-8820	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-6120	GOVERNOR HOUSING
65/1.	[1]	154408-6120	GOVERNOR HOUSING
65/1.	[1]	154408-6120	GOVERNOR HOUSING
65/1A.	[1]	154408-2400	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/2.	[2]	021006-2240	FLAT-HEAD SCREW
65/3.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
65/4.	[1]	029010-6220	BLEEDER SCREW
65/5.	[3]	014110-6440	LOCKING WASHER
65/5.	[3]	014110-6440	LOCKING WASHER
65/6.	[1]	154408-1100	CONTROL LEVER
65/7.	[1]	155004-2700	LEVER SHAFT
65/9.	[1]	154400-4720	STOP PIN
65/10.	[0]	029312-0180	SHIM D25.5&20T0.5
65/10B.	[0]	029312-0210	SHIM D25.5&20T0.2
65/11.	[1]	154402-2300	COILED SPRING
65/12.	[1]	029300-8260	PLAIN WASHER
65/14.	[1]	154400-0120	DIAPHRAGM
65/15.	[1]	029310-8560	SHIM D14&8.4T0.7
65/16.	[1]	139505-0000	PLAIN WASHER
65/17.	[1]	013030-6040	UNION NUT M6P1H3.6
65/18.	[1]	154404-3100	PLATE
65/19.	[1]	154404-3700	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20A.	[1]	020106-2240	BLEEDER SCREW
65/21.	[1]	023040-6040	UNION NUT
65/22.	[1]	154404-1100	FLAT-HEAD SCREW
65/23.	[1]	154035-0320	CAP NUT
65/24.	[1]	026506-1040	GASKET D9.9&6.2T1
65/25.	[1]	029010-6010	CAPSULE M6P1.0L7
65/26.	[2]	026510-1340	GASKET D13.4&10.2T1
65/28.	[1]	029731-0180	EYE BOLT
65/32.	[1]	029020-6210	BLEEDER SCREW
65/33.	[1]	029011-0120	BLEEDER SCREW
65/33.	[1]	029011-0120	BLEEDER SCREW
65/33A.	[1]	026510-1340	GASKET D13.4&10.2T1
65/34.	[1]	154390-0800	GASKET
65/35.	[1]	154390-0900	GASKET
65/40.	[1]	155003-1700	CONTROL LEVER
65/41.	[1]	155006-0700	BLEEDER SCREW
65/42.	[1]	139608-0000	PACKING RING
65/43.	[0]	029310-8040	SHIM D13.5&8T0.2
65/43.	[0]	029310-8050	SHIM D13.5&8T0.5
65/44.	[2]	029300-8320	SHIM
65/45.	[1]	025520-1210	SPLIT PIN
65/46.	[1]	155005-1900	COILED SPRING
65/47.	[1]	155400-1000	CONTROL LEVER
65/48.	[1]	014110-8440	LOCKING WASHER
65/49.	[1]	013020-8140	UNION NUT M8P1.25H6.5
65/50.	[1]	154037-2400	FLAT-HEAD SCREW
65/51.	[1]	154037-0300	FLAT-HEAD SCREW
65/52.	[2]	154038-0200	HEXAGON NUT
65/53.	[3]	154413-2600	GASKET
65/54.	[1]	139308-0700	LOCKING WASHER
80.	[1]	154063-1400	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-9920	FORK LEVER
174.	[1]	154230-5120	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	159231-4900	BEARING PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
178.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154309-6120	CONTROL LEVER
191.	[1]	154304-7100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-5390 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3990

9 420 610 137
NP-EP/RSV200-1450PQ2/302

1910196868 NISSAN-DIESEL

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
