105407-3980 ZEXEL 9 420 612 746 BOSCH GOVERNOR 9420612746 1054073980

Information governor

BOSCH 9 420 612 746 9420612746

ZEXEL 105407-3980 1054073980

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3980 zexel genuine, new aftermarket engine parts with delivery

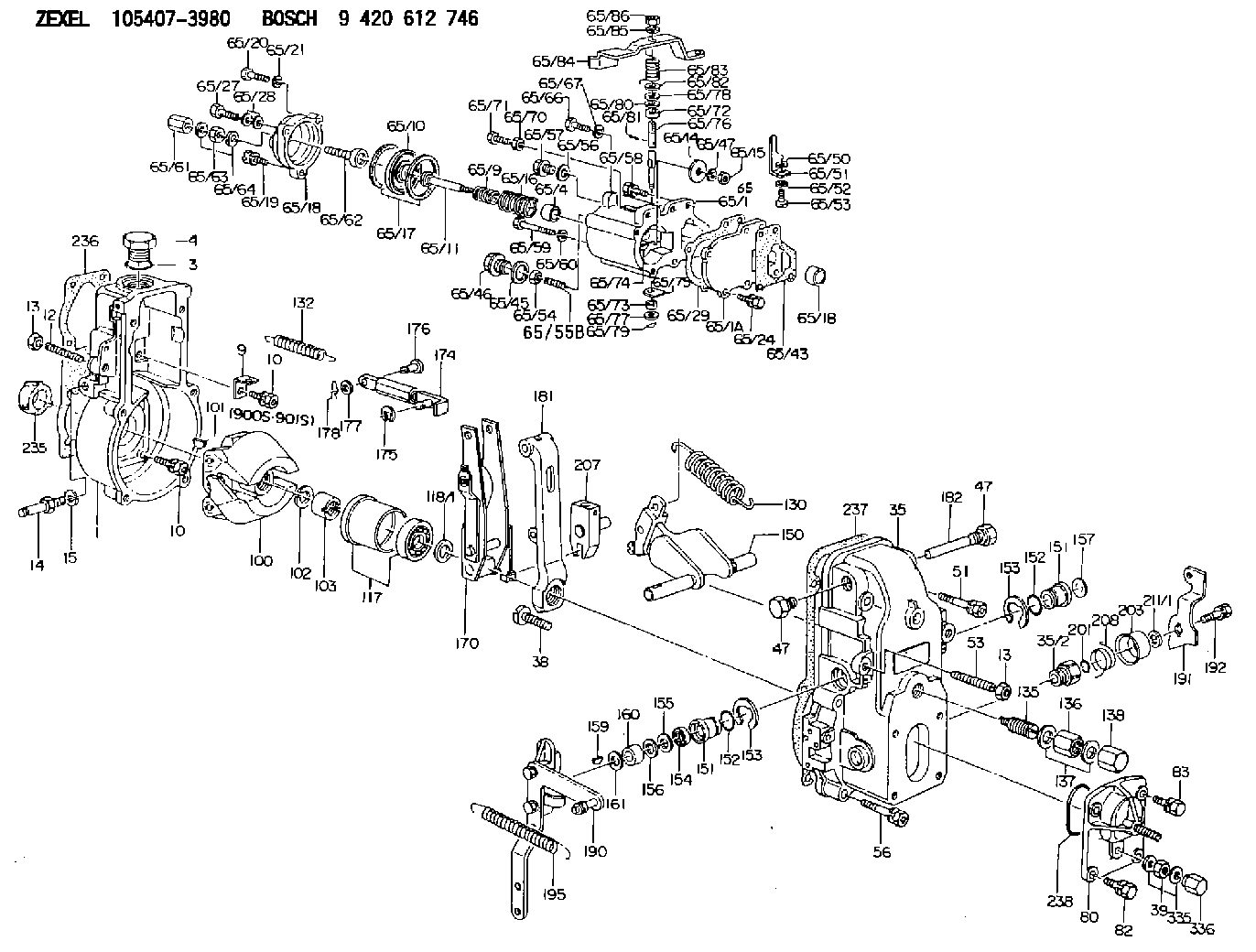

Scheme ###:

1.	[1]	154000-5720	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0500	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1720	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154419-0220	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-7820	DIAPHRAGM HOUSING
65/1A.	[1]	154408-2901	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-1400	BUSHING
65/9.	[1]	154403-9700	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154400-6101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-4800	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
65/20.	[2]	029010-6310	BLEEDER SCREW
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-1700	GASKET
65/43.	[1]	154390-1800	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154406-6901	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[1]	020106-2540	BLEEDER SCREW M6P1L25
65/59.	[2]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[2]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/66.	[1]	139006-0900	BLEEDER SCREW
65/67.	[1]	014110-6440	LOCKING WASHER
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	153141-1600	BLEEDER SCREW
65/72.	[1]	139608-0000	PACKING RING
65/73.	[1]	139605-0100	PACKING RING
65/74.	[1]	154408-9000	CONTROL LEVER
65/75.	[1]	154406-7500	CONTROL LEVER
65/76.	[1]	154406-8000	LEVER SHAFT
65/77.	[1]	029310-5200	SHIM
65/78.	[1]	014020-8120	PLAIN WASHER D16&8.5T1.2
65/79.	[1]	154372-6500	SAFETY PIN
65/80.	[0]	029310-8040	SHIM D13.5&8T0.2
65/80B.	[0]	029310-8050	SHIM D13.5&8T0.5
65/81.	[1]	025520-1210	SPLIT PIN
65/82.	[2]	029300-8320	SHIM
65/83.	[1]	154327-8300	COILED SPRING
65/84.	[1]	154406-7700	CONTROL LEVER
65/85.	[1]	014110-8440	LOCKING WASHER
65/86.	[1]	013020-8140	UNION NUT M8P1.25H6.5
80.	[1]	154063-4520	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4320	FORK LEVER
174.	[1]	154230-5120	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	159231-4900	BEARING PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
178.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154345-5320	CONTROL LEVER
191.	[1]	154304-2800	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2600	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4610 as GOVERNOR

106671-4612

106691-4050

106691-4052

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3980

9 420 612 746
NP-EP/RSV200-1300PQ39/312

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Tooling, Test, and Bulk Ground Fill Support Equipment
Diesel Exhaust Fluid (DEF)
Two container sizes of DEF are available through the Cat® dealers in North America. DEF must meet ISO 22241-1 specifications.
Table 1
Tool Part Number Description
350-8733 Diesel Exhaust Fluid 9.5 L (2.5 US gal) bottle
350-8734 Diesel Exhaust Fluid 1378 L (364 US gal) tote
443-0955 Removal Tool DEF filter removal tool Dispensing Equipment
Three different dispensing kits are offered to protect DEF quality. Optional flow meter and coupler are also available.
Table 2
Tool Part Number Description
422-1185 Pump Adapter (DEF DISPENSER) 12 V dispenser unit
423-7843 Pump Adapter (DEF DISPENSER) 110 V dispenser unit
423-7844 Pump Adapter (DEF DISPENSER) 230 V dispenser unit with"smart start"tote base
423-7795 Flow Meter In line DEF flow meter
423-7799 Coupler MicroMatic coupler Dispenser Unit Repair Parts
Table 3
Tool Part Number Description
436-6643 Repair Kit 12 V dispenser unit
436-6646 Diesel Exhaust Fluid Pump 12 V repair group
436-6642 Hose 20'/4'
436-6644 Swivel
436-6645 Repair Kit 1/2 hp pump
436-6647 Nozzle (DIESEL EXHAUST FLUID) Dispensing nozzle Storage and Transportation
Preventing DEF contamination does not stop at the pump. Protect your DEF supply with climate-specific enclosures and transportation tanks.
Table 4
Part Number Description
435-8671 Dispenser Warm-weather enclosure
435-8672 Dispenser Cold-weather enclosure
460-4077 Tank 121 L (32 US gal)
460-4078 Tank 269 L (71 US gal) Fast Fill Vehicle Interface
Illustration 1 g06516654
584-9979 Nozzle As
Table 5
584-9979 Nozzle As
Repair parts for 584-9979 Nozzle As
- 587-3371 Rear Cap
- 587-3372 Handle
- 587-3373 Hose (3/4")
- 587-3374 O-Ring Seal
- 587-3375 Handle (optional)
459-9296 Receiver As (Permanently mounted on vehicle)
For heated DEF hose repair connectors, kits, and instructions , refer to Service Magazine, M0103829, "Repair Kits for Quick Connect Diesel Exhaust Fluid (DEF) Line Fittings Are Now Available for Certain Cat® Machine Engines". Testing Equipment
Test your DEF supply and DEF injector with DEF-specific testing equipment. Complete kits or individual testing components are available for your needs.
Table 6
441-0451 Tool Gp (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 443-7055 Test Kit
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
450-1515 Tool Gp (DIESEL EXHAUST FLUID) (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
441-0454 Container
443-7055 Test Kit
431-7087 Tool Gp (REFRACTOMETER (DEF))
360-0774 Refractometer
372-5260 Test Lead Tool Group
576-6134 Test Strip
