105407-3923 ZEXEL 9 420 613 202 BOSCH GOVERNOR 9420613202 1054073923

Information governor

BOSCH 9 420 613 202 9420613202

ZEXEL 105407-3923 1054073923

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3923 zexel genuine, new aftermarket engine parts with delivery

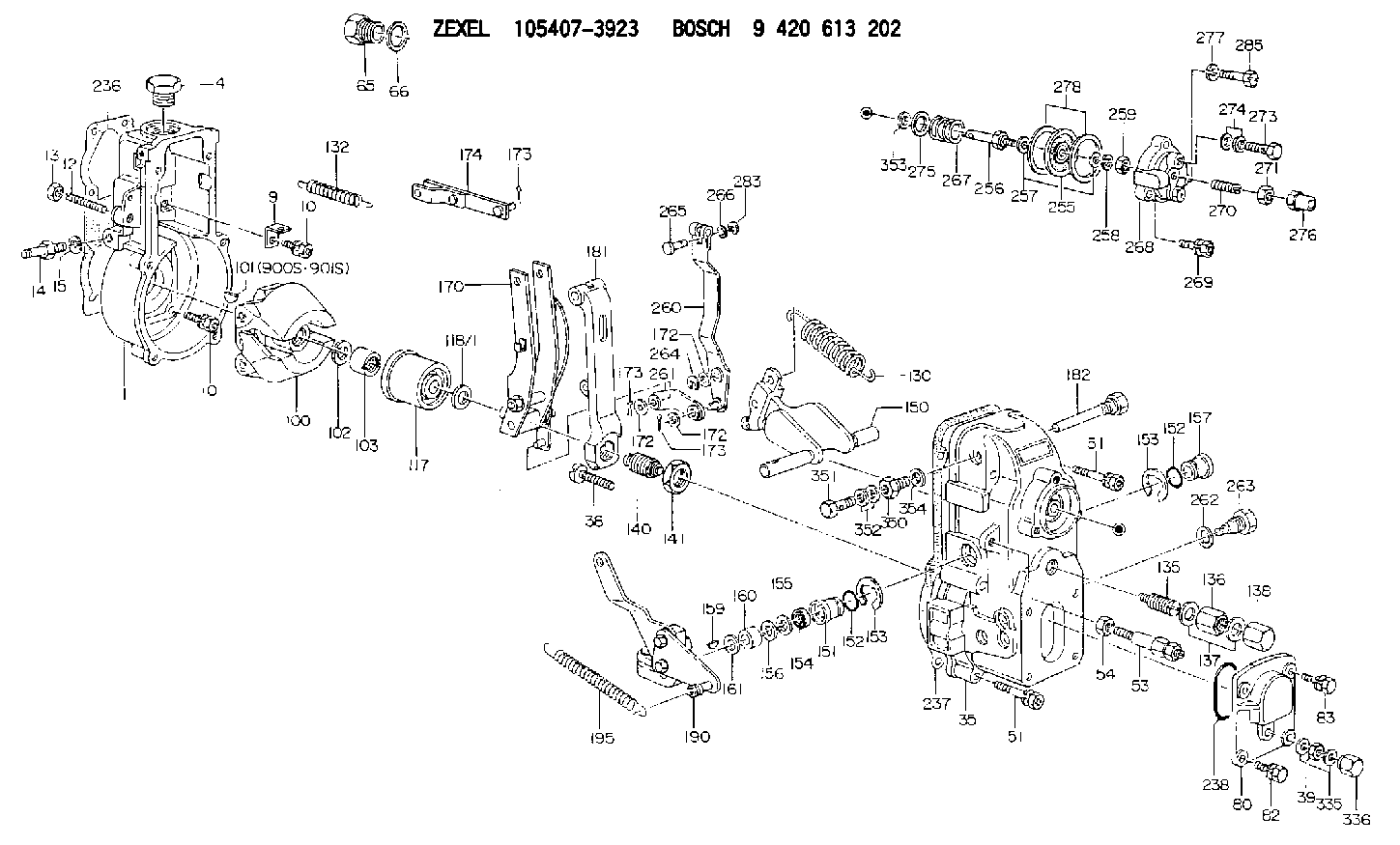

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154007-1600	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154022-5920	GOVERNOR COVER
38.	[1]	154031-4800	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
51.	[6]	020106-5040	BLEEDER SCREW
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-5220	HEADLESS SCREW
54.	[1]	154011-1900	UNION NUT
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0820	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-7220	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-2920	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1700	BEARING PIN
190.	[1]	154342-7020	CONTROL LEVER
195.	[1]	154314-2500	COILED SPRING
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3620	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154403-0200	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	023040-6040	UNION NUT
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-0320	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
350.	[1]	154036-1600	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[2]	029310-9080	SHIM D16&9T1.7
354.	[1]	029331-0090	GASKET
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106672-9603 as GOVERNOR

106672-9604

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3923

9 420 613 202
NP-EP/RSV200-1300PQ39C4

GOVERNOR
K
