105407-3850 ZEXEL 9 420 610 299 BOSCH GOVERNOR 9420610299 1054073850 1157209870

Information governor

BOSCH 9 420 610 299 9420610299

ZEXEL 105407-3850 1054073850

ISUZU 1157209870 1157209870

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3850 zexel genuine, new aftermarket engine parts with delivery

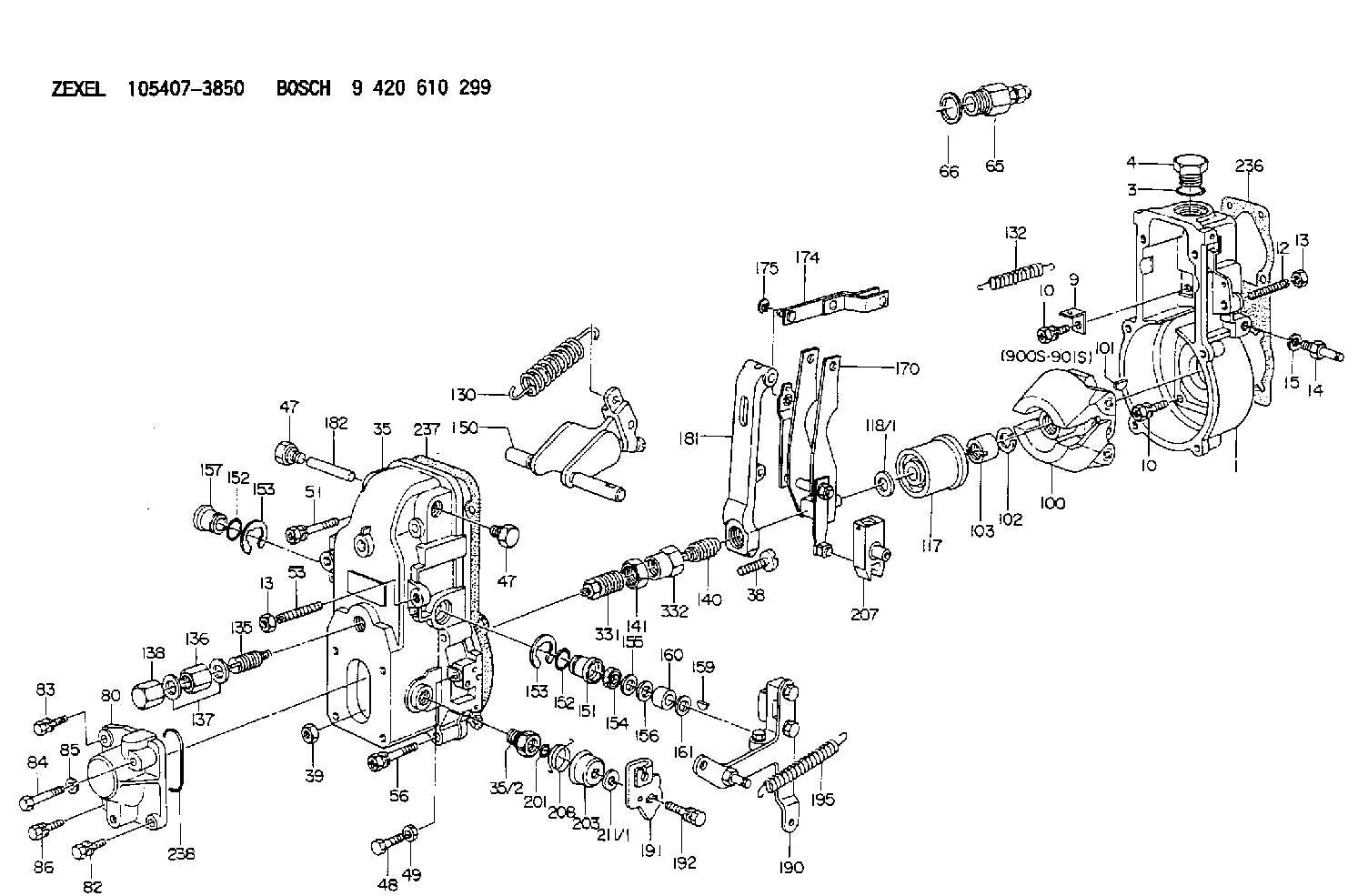

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW
10.	[8]	020106-2040	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
35.	[1]	154500-3720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153021-3020	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-0600	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	010006-3840	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1720	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-4020	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4320	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-3820	CONTROL LEVER
191.	[1]	154365-5000	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW
195.	[1]	154314-0200	COILED SPRING
201.	[1]	029631-0030	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-3420	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106671-1481 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3850

9 420 610 299
NP-EP/RSV200-1350PQ49/311

1157209870 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
