105407-3671 ZEXEL 9 420 613 148 BOSCH GOVERNOR 9420613148 1054073671

Information governor

BOSCH 9 420 613 148 9420613148

ZEXEL 105407-3671 1054073671

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3671 zexel genuine, new aftermarket engine parts with delivery

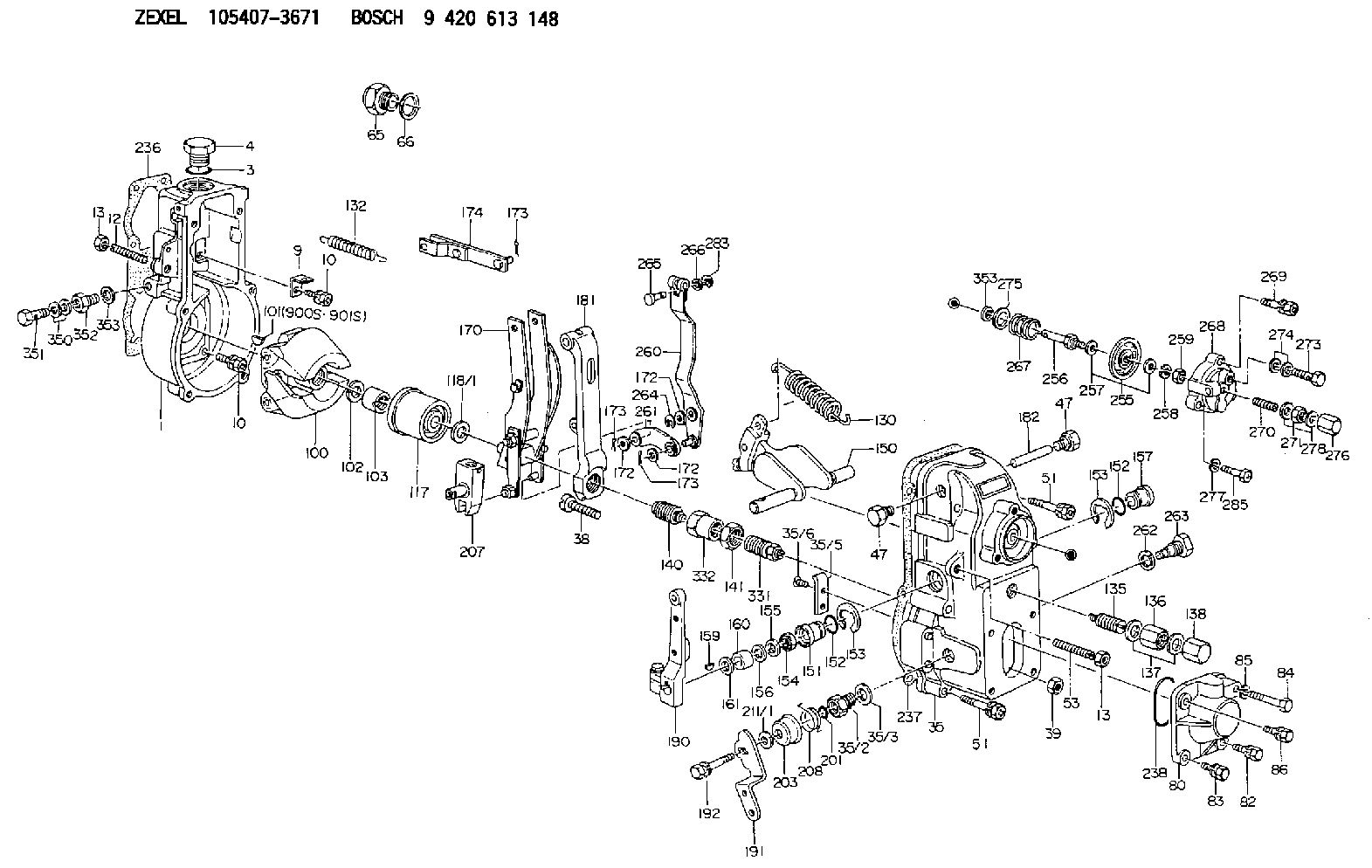

Scheme ###:

1.	[1]	154000-5900	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154509-1720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
35/3.	[1]	029331-6030	GASKET
35/5.	[1]	154357-1600	PLATE
35/6.	[2]	012255-1020	FLAT-HEAD SCREW
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
65.	[1]	153021-4520	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-7300	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	010006-3840	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	029201-2140	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-4720	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4620	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-5020	STRAP
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154309-6120	CONTROL LEVER
191.	[1]	154301-5700	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-0220	CONTROL LEVER
261.	[1]	154401-1220	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154402-0600	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154404-1100	FLAT-HEAD SCREW
271.	[1]	023040-6040	UNION NUT
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0010	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-0320	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
331.	[1]	154172-5720	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
350.	[2]	026506-1040	GASKET D9.9&6.2T1
351.	[1]	029730-6030	EYE BOLT
352.	[1]	155012-0700	ADAPTOR
353.	[2]	029310-9080	SHIM D16&9T1.7
353.	[2]	029310-9080	SHIM D16&9T1.7
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106871-0571 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3671

9 420 613 148

GOVERNOR
* K

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
There have been instances of the following diagnostic codes becoming active:
Table 1
J1939 Code CDL Code Code Description
1184-3 3782-3 Engine Turbocharger #1 Turbine Outlet Temperature : Voltage Above Normal
1184-4 3782-4 Engine Turbocharger #1 Turbine Outlet Temperature : Voltage Below Normal
3242-3 2452-3 DPF #1 Intake Temperature Sensor : Voltage Above Normal
3242-4 2452-4 DPF #1 Intake Temperature Sensor : Voltage Below Normal
4360-3 3105-3 Aftertreatment #1 SCR Catalyst Intake Gas Temperature Sensor : Voltage Above Normal
4360-4 3105-4 Aftertreatment #1 SCR Catalyst Intake Gas Temperature Sensor : Voltage Below Normal One root cause of the diagnostic codes has been identified as electrical noise overwriting data on the memory chip of the DPF/SCR intake temperature sensor. Improved sensor firmware has resolved this issue.A fault could not be found with some of the returned parts. A new troubleshooting procedure has been released. Refer to Troubleshooting, Sensor Signal (PWM) - Test.
