105407-3332 ZEXEL 9 420 612 766 BOSCH GOVERNOR 9420612766 1054073332 3256503322

Information governor

BOSCH 9 420 612 766 9420612766

ZEXEL 105407-3332 1054073332

MITSUBISHI-HEAV 3256503322 3256503322

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3332 zexel genuine, new aftermarket engine parts with delivery

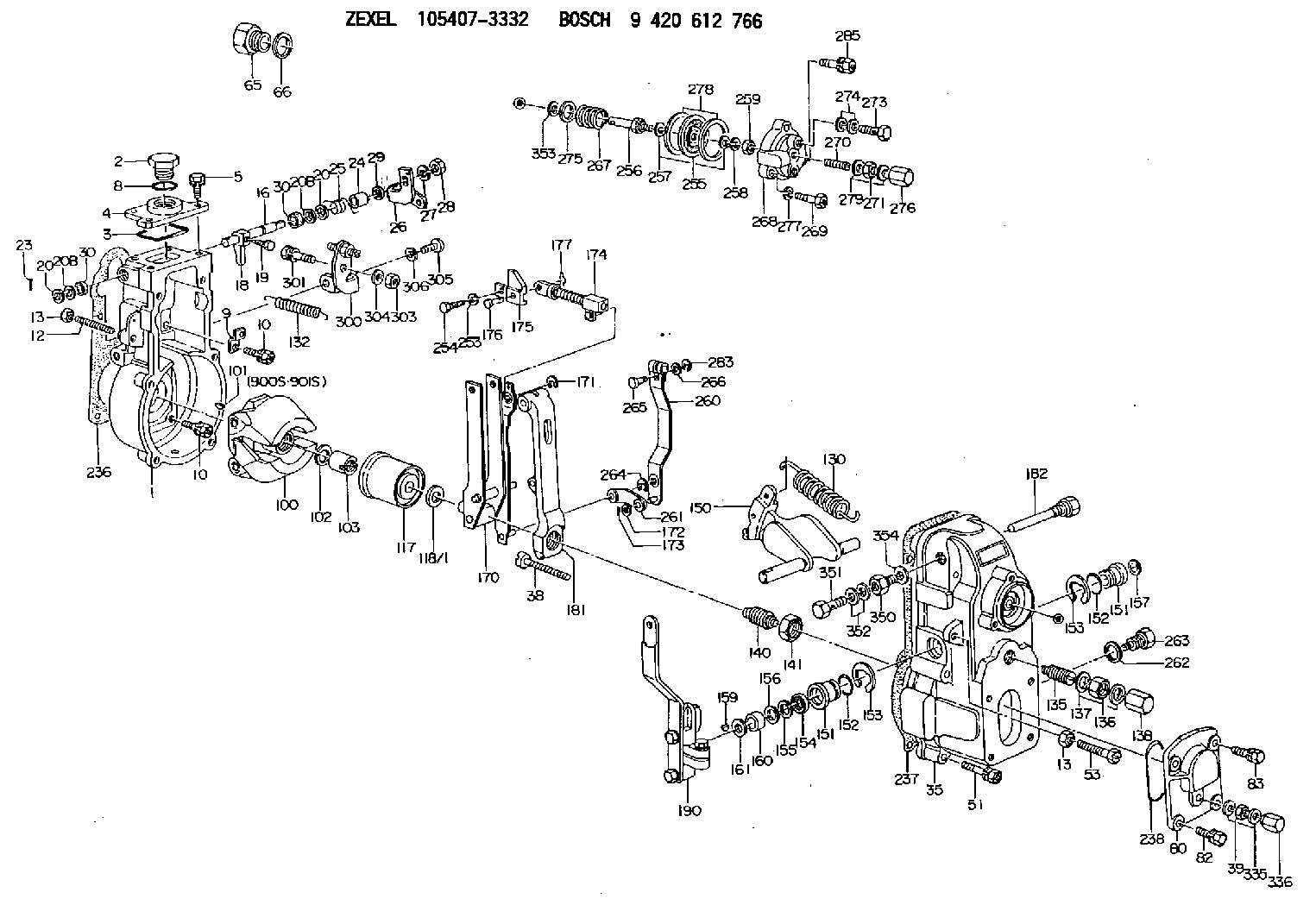

Scheme ###:

1.	[1]	154004-2822	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154358-2500	SEAL RING
4.	[1]	154063-7900	COVER
5.	[4]	020006-1640	BLEEDER SCREW M6P1L16 4T
8.	[1]	029632-5070	O-RING
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-4200	COILED SPRING
26.	[1]	154366-9800	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1500	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[2]	139608-0200	PACKING RING
30.	[2]	139608-0200	PACKING RING
35.	[1]	154022-4120	GOVERNOR COVER
38.	[1]	154031-4800	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[2]	154204-3000	BUSHING
151.	[2]	154204-3000	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154217-0320	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
172.	[4]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154234-6920	STRAP
175.	[1]	154232-2420	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1700	BEARING PIN
190.	[1]	154303-9920	CONTROL LEVER
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-0220	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154411-4400	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0180	EYE BOLT
274.	[2]	026510-1340	GASKET D13.4&10.2T1
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1900	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
300.	[1]	154358-9420	BRACKET
301.	[1]	020118-1640	BLEEDER SCREW
303.	[1]	154011-1100	UNION NUT
304.	[1]	029300-8320	SHIM
305.	[1]	154010-6100	BLEEDER SCREW
306.	[1]	014110-8440	LOCKING WASHER
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
350.	[1]	154036-2100	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[2]	029310-9080	SHIM D16&9T1.7
354.	[1]	026510-1340	GASKET D13.4&10.2T1
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4302 as GOVERNOR

106671-4303

106671-4304

106671-4305

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3332

9 420 612 766
NP-EP/RSV200-1350PQ49C302

3256503322 MITSUBISHI-HEAV

GOVERNOR
