105407-3022 ZEXEL 9 420 613 253 BOSCH GOVERNOR 9420613253 1054073022

Information governor

BOSCH 9 420 613 253 9420613253

ZEXEL 105407-3022 1054073022

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-3022 zexel genuine, new aftermarket engine parts with delivery

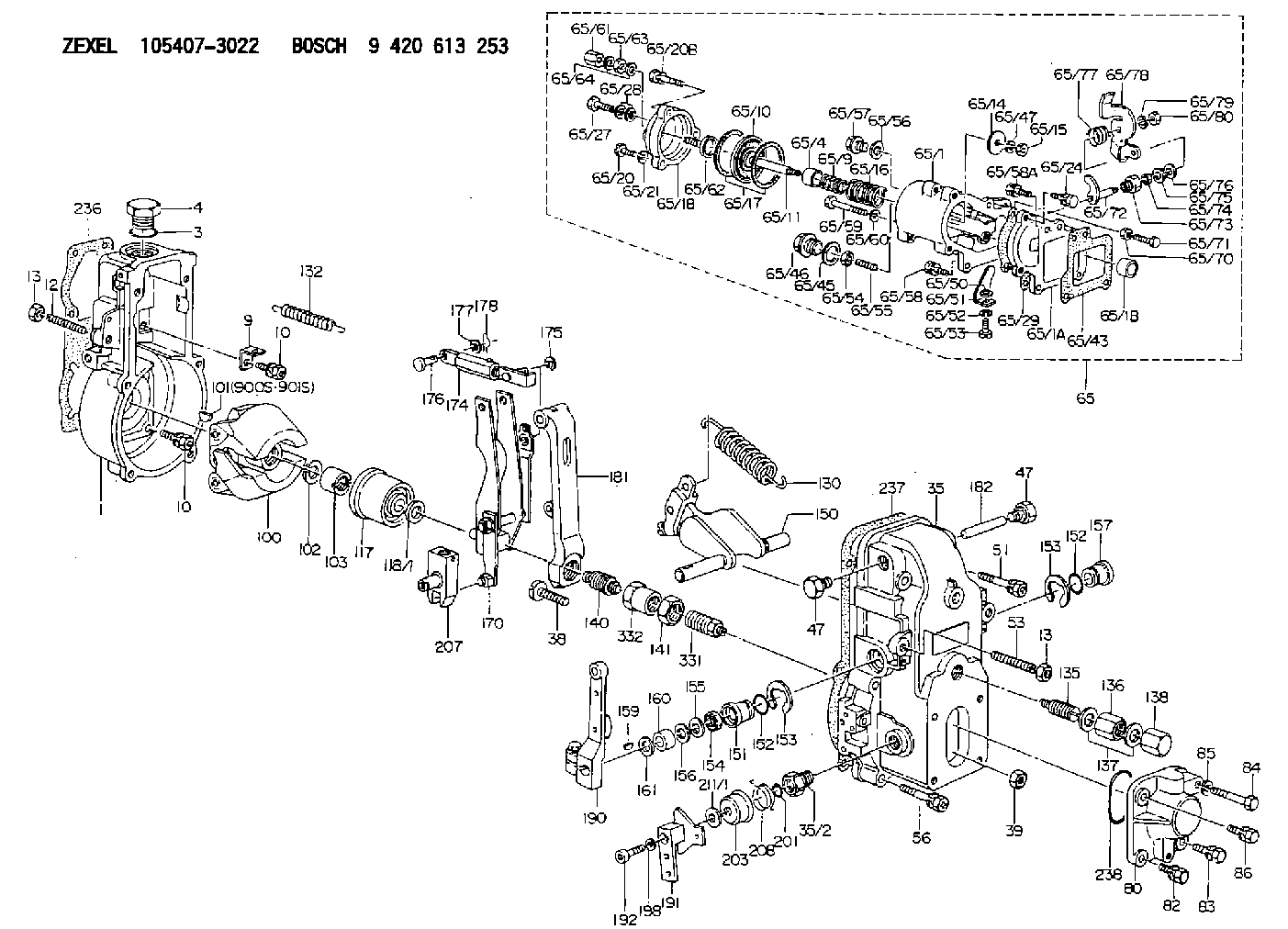

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154418-7320	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-9520	GOVERNOR HOUSING
65/1A.	[1]	154412-0201	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154402-3900	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154412-4101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-6300	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-2200	GASKET
65/43.	[1]	154390-2300	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154412-9800	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55.	[1]	154404-1500	FLAT-HEAD SCREW L22.00
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2840	BLEEDER SCREW
65/58A.	[1]	020106-1440	BLEEDER SCREW M6P1.0L14
65/59.	[1]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[1]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	029000-6290	BLEEDER SCREW M6P1.0L19
65/72.	[1]	154413-0021	LEVER SHAFT
65/73.	[1]	154413-0100	BUSHING
65/74.	[1]	139608-0000	PACKING RING
65/75.	[1]	154413-0200	PLAIN WASHER
65/76.	[0]	029310-8030	SHIM D13.5&8T0.1
65/76B.	[0]	029310-8040	SHIM D13.5&8T0.2
65/77.	[1]	154413-0301	COILED SPRING
65/78.	[1]	154413-0400	CONTROL LEVER
65/79.	[1]	014110-8440	LOCKING WASHER
65/80.	[1]	013020-8140	UNION NUT M8P1.25H6.5
80.	[1]	154063-0600	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	010006-3840	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0520	FLYWEIGHT
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1620	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-2720	FORK LEVER
174.	[1]	154230-5120	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	159231-4900	BEARING PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
178.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154309-6120	CONTROL LEVER
191.	[1]	154364-7520	CONTROL LEVER
192.	[1]	010206-1440	HEX-SOCKET-HEAD CAP SCREW M6P1L14
198.	[1]	029320-6010	LOCKING WASHER
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-3920	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-5161 as GOVERNOR

106661-5162

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-3022

9 420 613 253

GOVERNOR
* K 14JB GOV RSV GOV

Information:

Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The new 583-9296 Gasket replace the former 553-1133 Gasket.Note: The former part number listed is for reference only and may differ.The new gasket is adaptable to the above machines back to first production.
Illustration 1 g06432905
Cross pattern
Illustration 2 g06432913
Square pattern
Apply nickel anti-seize to the bolts.
Hand tighten all bolts.
Using the cross pattern (1-2-3-4), torque each bolt to 25 N m (18 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 65 N m (48 lb ft).
Using the cross pattern (1-2-3-4), torque each bolt to 125 N m (92 lb ft).
Using the square pattern (1-3-2-4), torque each bolt to 125 20 N m (92 15 lb ft).
