105407-2551 ZEXEL 9 420 614 141 BOSCH GOVERNOR 9420614141 1054072551

Information governor

BOSCH 9 420 614 141 9420614141

ZEXEL 105407-2551 1054072551

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-2551 zexel genuine, new aftermarket engine parts with delivery

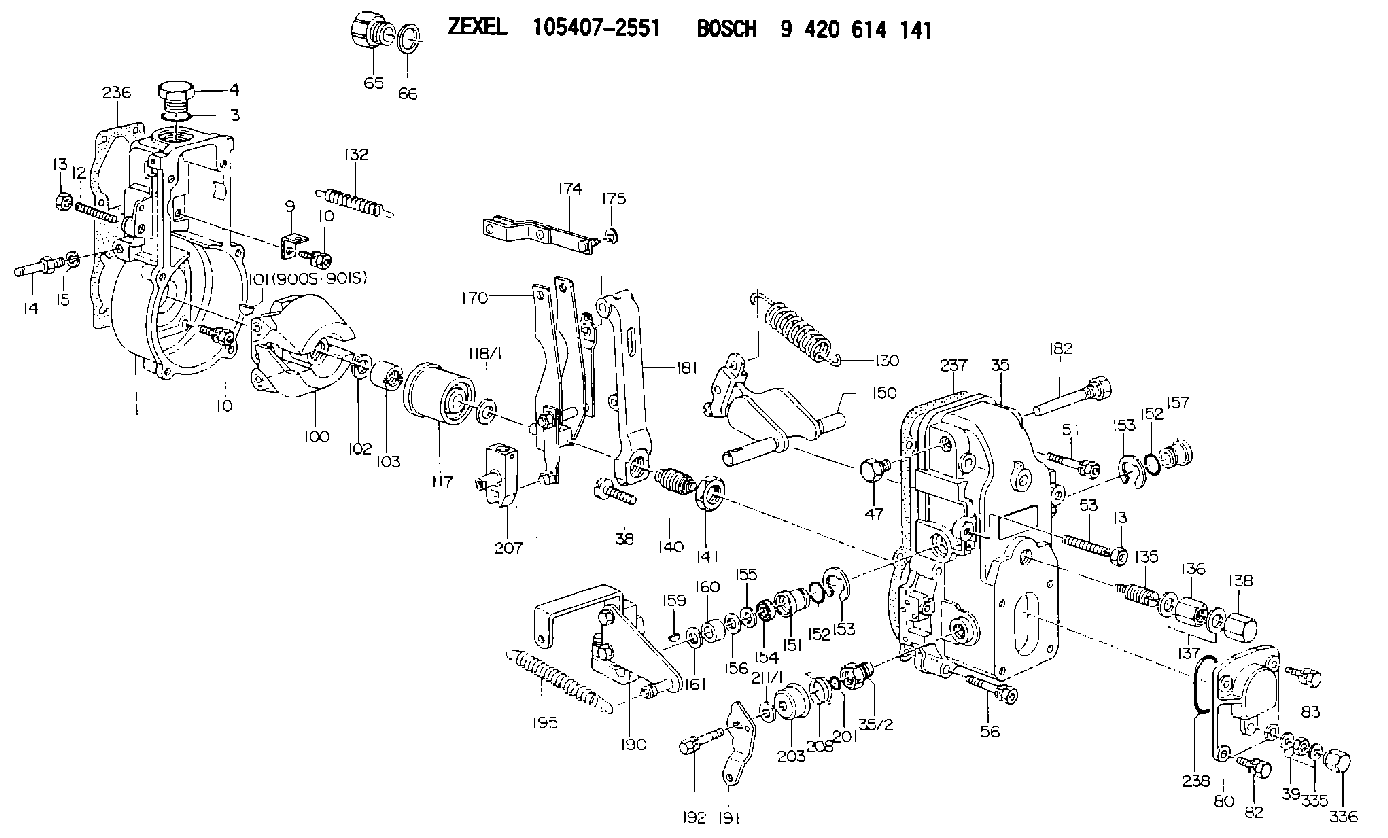

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-8120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-4300	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-1220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-2720	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154343-2520	CONTROL LEVER
191.	[1]	154365-0500	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2500	COILED SPRING
201.	[1]	139710-0500	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7400	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106692-4182 as GOVERNOR

106692-4930

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-2551
105407-2552

9 420 614 141

GOVERNOR
* K 14JB GOV RSV GOV

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
There have been some instances of the following active diagnostic codes:
651-6 Engine Injector Cylinder #01 : Current Above Normal
652-6 Engine Injector Cylinder #02 : Current Above Normal
653-6 Engine Injector Cylinder #03 : Current Above Normal
654-6 Engine Injector Cylinder #04 : Current Above NormalThe engine will be derated and will be difficult to start.Solution
Follow the correct troubleshooting procedure for the active diagnostic codes. Refer to Troubleshooting, Injector Solenoid - Test.
If the troubleshooting procedure identifies suspect injectors, use the electronic service tool to generate a Product Status Report (PSR). Select the "Histogram" option when generating the PSR.
Install replacement 418-3229 Fuel Injector Gp, as required. Refer to Disassembly and Assembly, Electronic Unit Injector - Remove and Disassembly and Assembly, Electronic Unit Injector - Install.
Use 169-7372 Fluid Sampling Bottles to obtain a fuel sample from the following locations:
Machine fuel tank ( 355 mL (12 oz)
Bulk fuel supply tank ( 355 mL (12 oz)Analyze the fuel sample. The fuel samples will need to be analyzed for the following properties:
Lubricity Wear Scar - "ASTM D6079" or "ISO 12156"
Density at 15° C (59° F) - "ASTM D1298", "ASTM D4052", "ISO 3675", or "ISO 12185"
Kinematic Viscosity at 40° C (104° F) - "ASTM D445", "ISO 3448", or "ISO 3104"
Sulfur - "ASTM D4294", "ASTM D5185", "ASTM D5453", "ASTM D26222", "ISO 20846", or "ISO 20884"
Water by Distillation - "ASTM D95", "ASTM D6304", "ASTM D2709", "ASTM D1796", or "ISO3734"
Cloud Point - "ASTM D2500" or "ISO 3015"
FAME - "EN 14078", "ASTM D7806", or "ASTM D7371"
Oxidation Stability - "EN 14112"
Copper - "ASTM D7111"
Sodium - "ASTM D7111"
Zinc - "ASTM D7111"
Calcium - "ASTM D7111"
Potassium - "ASTM D7111"Provide the results of the fuel sample.
Retain any removed injectors. The injectors will be requested for return through the "Send It Back" (SIB) process.
Submit the PSR along with TIB Media number, M0085259, and CPI number 386169 through "CPI Feedback" within the Service Information Management System (SIMSi).
