105407-1750 ZEXEL 9 420 612 100 BOSCH GOVERNOR 9420612100 1054071750 223202420a




Information governor

BOSCH 9 420 612 100 9420612100
ZEXEL 105407-1750 1054071750
HINO 223202420A 223202420a
105407-1750 GOVERNOR
Rating:
29
Buy GOVERNOR 105407-1750 zexel genuine, new aftermarket engine parts with delivery

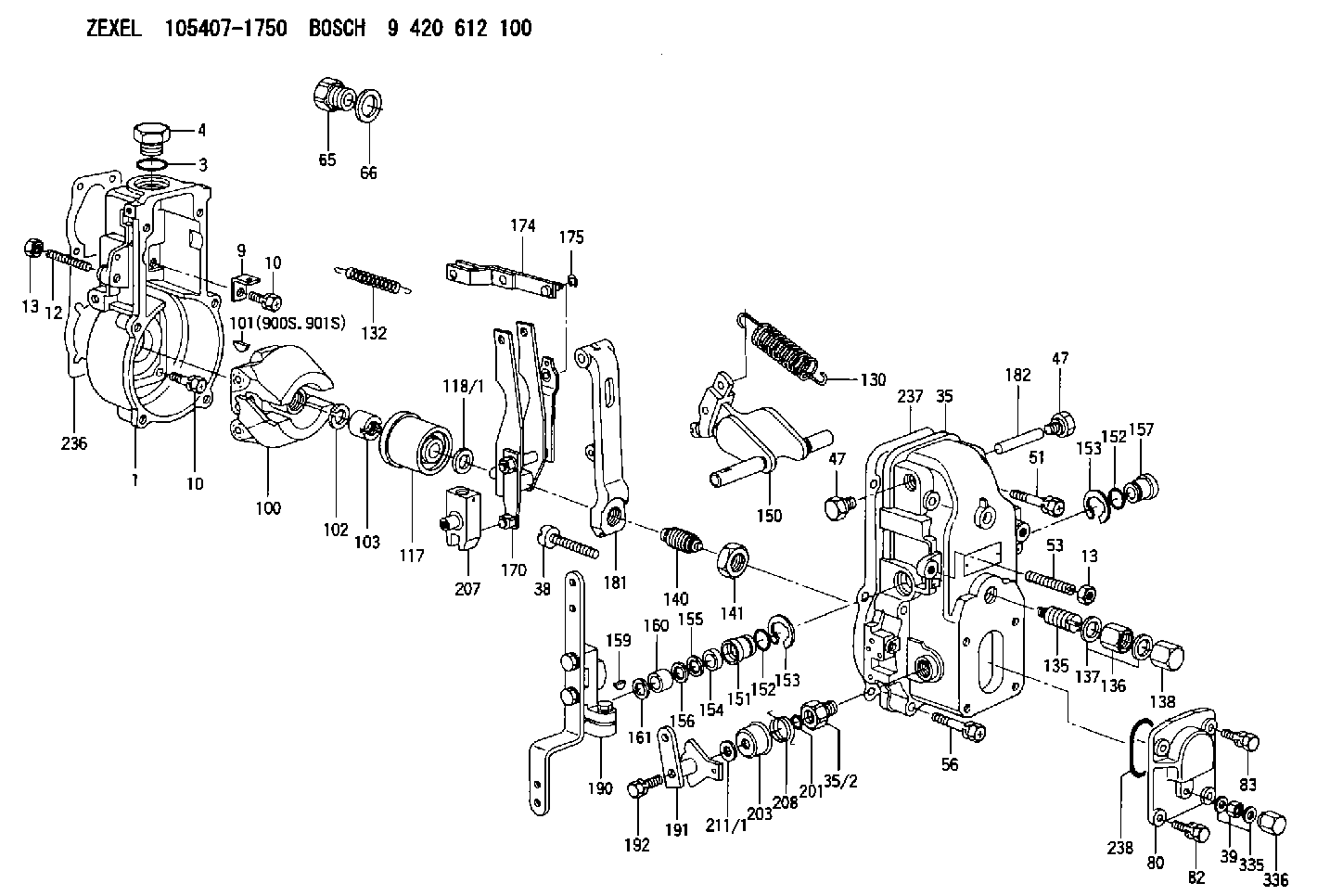

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-1100 FLAT-HEAD SCREW
12. [1] 154010-1100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-7420 GOVERNOR COVER
35. [1] 154500-7420 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-1700 CAP
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
66. [1] 026524-3040 GASKET
80. [1] 154063-1400 COVER
80. [1] 154063-1400 COVER
82. [2] 029020-6210 BLEEDER SCREW
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0720 FLYWEIGHT ASSEMBLY
100. [1] 154101-0720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-1320 HEADLESS SCREW
135. [1] 154158-1320 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-9920 FORK LEVER
170. [1] 154210-9920 FORK LEVER
174. [1] 154230-2920 STRAP
174. [1] 154230-2920 STRAP
175. [1] 016010-0540 LOCKING WASHER
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
182. [1] 154237-0100 BEARING PIN
190. [1] 154341-8120 CONTROL LEVER
190. [1] 154341-8120 CONTROL LEVER
191. [1] 154307-5920 CONTROL LEVER
191. [1] 154307-5920 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
192. [1] 020006-3540 BLEEDER SCREW
201. [1] 029631-0030 O-RING &9.8W2.3
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
336. [1] 154035-1600 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-3412 as GOVERNOR
106671-8650

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-1750
9 420 612 100
NP-EP/RSV200-1300PQ39/302NP165
223202420A  HINO
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the correct training.Before begining ANY work on the fuel system, refer to Operation and Maintenance Manual, "General Hazard Information and High Pressure Fuel Lines" for safety information.Refer to Systems Operation, Testing and Adjusting Manual, "Cleanliness of Fuel System Components" for detailed information on the standards of cleanliness that must be observed during ALL work on the fuel system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be

Have questions with 105407-1750?





Group cross 105407-1750 ZEXEL

105407-1700



Nissan-Diesel

105407-1710

1910196575
GOVERNOR
105407-1720
9 420 610 320
NP-EP/RSV200-1150P4/302NP163

GOVERNOR
105407-1730
F 019 Z9E 494
NP-EP/RSV200-1450PQ2/302NP164

GOVERNOR

Nissan-Diesel

105407-1740

105407-3990
F 019 Z1E 580
NP_EP/RSV200_1450PQ2/302NP613
1910196574
GOVERNOR

Hino

105407-1750
9 420 612 100
NP-EP/RSV200-1300PQ39/302NP165
223202420A
GOVERNOR

Nissan-Diesel

105407-1760
F 019 Z2F 586
1910196576
GOVERNOR
105407-1780

105407-1781

1910196578
GOVERNOR
105407-1781
9 420 610 531
NP-EP/RSV200-1450PQ2/302NP167

GOVERNOR
105407-1790
