105407-1480 ZEXEL 9 420 610 277 BOSCH GOVERNOR 9420610277 1054071480

Information governor

BOSCH 9 420 610 277 9420610277

ZEXEL 105407-1480 1054071480

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-1480 zexel genuine, new aftermarket engine parts with delivery

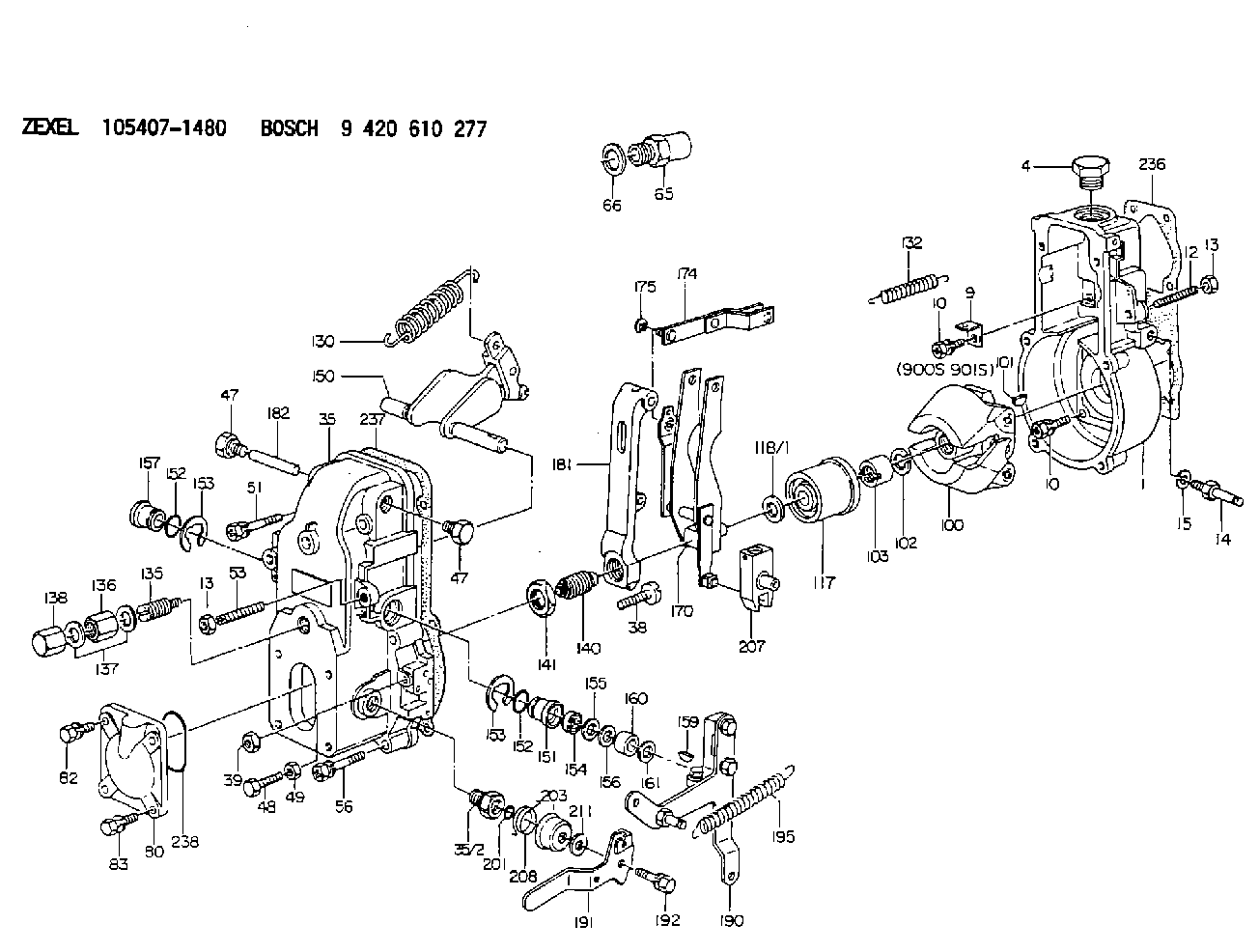

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154007-1600	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW
10.	[8]	020106-2040	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
35.	[1]	154500-3720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-3400	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-1800	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW
100.	[1]	154100-8520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET
138.	[1]	154159-1200	CAP NUT
140.	[1]	154178-9220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4320	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-3820	CONTROL LEVER
191.	[1]	154364-6500	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW
195.	[1]	154314-0200	COILED SPRING
201.	[1]	029631-0030	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106692-1060 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-1480

9 420 610 277

GOVERNOR
* K

Information:

Table 4
Cat Specification for Biodiesel Fuel
Property Test Method Test Method Units Limits
United States International Specific Properties of Fuel
Density at 15°C "ASTM D1298" "ISO 3675" g/cm3 0.86-0.90
Viscosity at 40°C "ASTM D445" "ISO 3104" mm2/s (cSt) 1.9-6.0
Flash Point "ASTM D93" "ISO 3679" °C 93 minimum
Pour Point
- Summer
- Winter "ASTM D97" "ISO 3016" °C 6 °C (10 °F) minimum below ambient temperature
Cloud Point "ASTM D2500" °C Report
Sulfur Content "ASTM D5453" "ISO 20846"
"ISO 20884" percent weight 0.0015 maximum
Distillation
- 10 percent Evaporation
- 90 percent Evaporation "ASTM D1160" °C To Be Determined
360
Carbon Residue, Conradson (CCR) "ASTM D4530" "ISO 10370" percent weight 0.05 maximum
Cetane Number "ASTM D613" "ISO 5165" 45 minimum
Sulfated Ash "ASTM D874" "ISO 3987" percent weight 0.02 maximum
Water/Sediment Content "ASTM D2709" "ISO 12937" percent volume 0.05 maximum
Copper Corrosion "ASTM D130" "ISO 2160" No. 1
Oxidation Stability "EN 14112" "EN 14112" hours 3 minimum
Esterification "EN 14103" "EN 14103" percent volume 97.5 minimum
Acid Value "ASTM D664" "EN 14104" mg KOH/g 0.5 maximum
Methanol Content "EN 14110" "EN 14110" percent weight 0.2 maximum
Monoglycerides "ASTM D6584" "EN 14105" percent weight 0.8 maximum
Diglycerides "ASTM D6584" "EN 14105" percent weight 0.2 maximum
Triglycerides "ASTM D6584" "EN 14105" percent weight 0.2 maximum
Free Glycerin "ASTM D6584" "EN 14105" percent weight 0.02 maximum
Total Glycerin "ASTM D6584" "EN 14105" percent weight 0.240 maximum
Phosphorus Content "ASTM D4951" "EN 14107" percent weight 0.001
Calcium and Magnesium combined "EN 14538" "EN 14538" ppm 5 maximum
Sodium and Potassium combined "EN 14538" "EN 14538" ppm 5 maximum
Cold Soak Filterability "ASTM D7501" -- seconds 360 maximum
Cleanliness "ASTM D7619" "ISO 4406" -- (1)
(1) Recommended cleanliness level for fuel as dispensed into machine or engine fuel tank is "ISO 18/16/13" or cleaner per "ISO 4406" or "ASTM D7619". Refer to the “Contamination Control” section in this Special Publication.Note: Fuels that meet the most current revision level of "ASTM D6751" or "EN 14214" may be used for blending with an acceptable distillate fuel. The conditions, recommendations, and limits that are noted in this Biodiesel section apply.Referenced Documents
Refer to the “Reference Material - Fuel” section of this Special Publication for the reference material for the information in this section.
