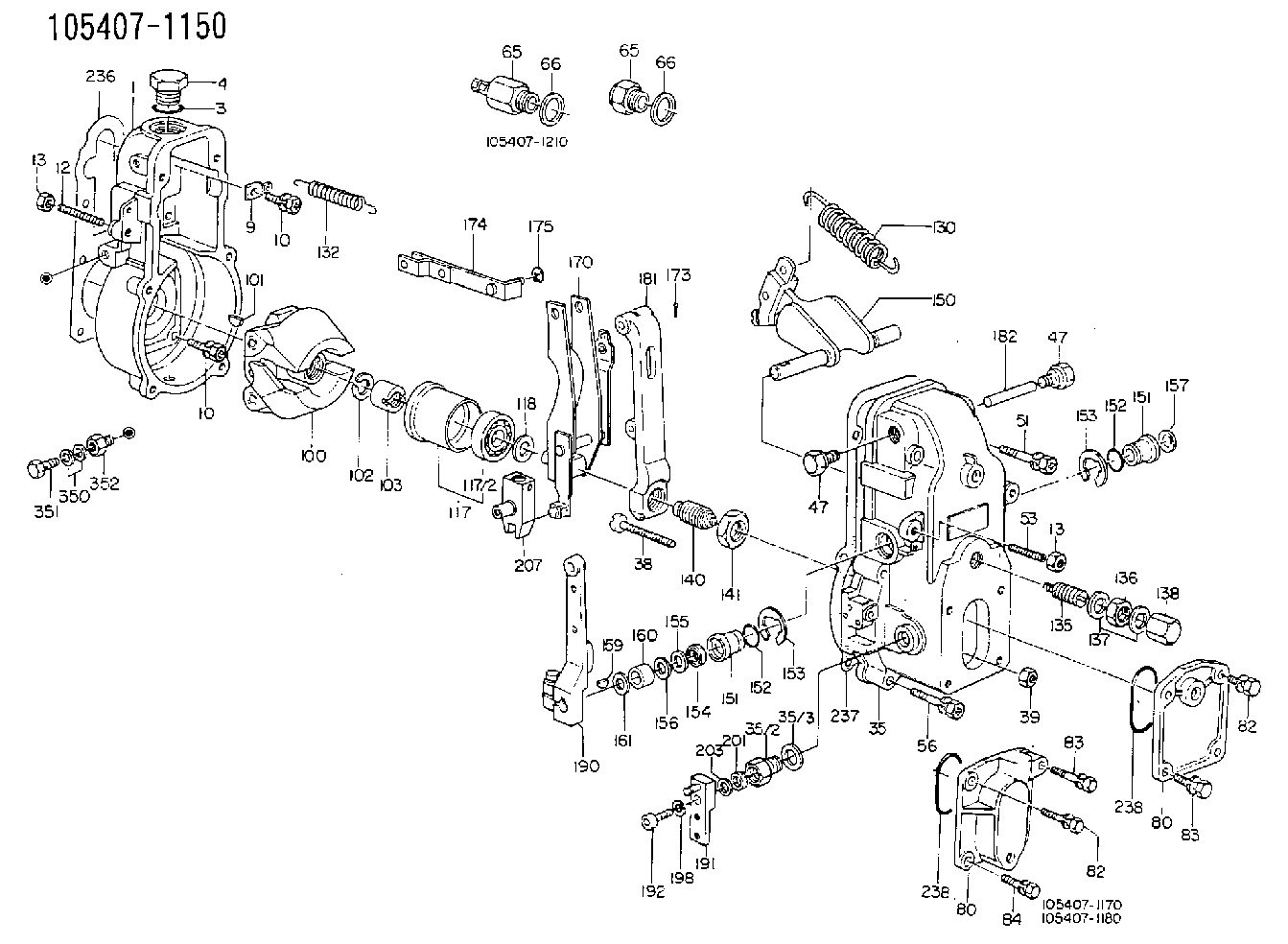

105407-1150 ZEXEL F 019 Z1E 577 BOSCH GOVERNOR f019z1e577 1054071150 1910197070

Table 1
Required Parts
Item Qty Part Number Description Former Part Number
1 1 560-4252 Bracket 431-8663
2 1 396-3862 (1) Control Harness As 396-3862 (1)
524-5527 (2) Control Harness As 524-5527 (2)
3 1 471-4176 Hose As 380-9241
4 - 7K-1181 Cable Strap NA
5 - 3E-6909 Clip NA
(1) FMC 1 - 772 (Not Equipped with DEF Quality Sensor)
(2) FMC 773 - Up (Equipped with DEF Quality Sensor)Note: These parts should be ordered and replaced only if there is evidence of damage to any part.Rework Procedure
Park the machine on level ground, lower all implements to the ground, shut off machine, and relieve all hydraulic system pressure.
Read and understand this Rework Procedure before starting work.
Illustration 1 g06340431
General location and reference Views
DEF tank cover not shown for clarity.
(A) Fuel tank
(B) Diesel Exhaust Fluid (DEF) module group
See Illustration for the general location of the DEF Module Group and reference views that will be used in future steps.
Illustration 2 g06340436
Location of hardware.
(C) Hardware
(D) DEF fill hose
(E) Clamp
Inspect control harness assembly (2) at location (AA) and hose assembly (3) at location (BB) for rubbing and or fouling on the DEF Tank Cover. If either item is damaged, replace the damaged part.Note: Hardware (C) holding the DEF Module Group to the fuel tank and clamp (E) holding DEF Fill Hose (D) to the tank will need to be loosened to reposition the DEF Module Group to access control harness assembly (2) and hose assembly (3).
After control harness assembly (2) and hose assembly (3) have been inspected and found without damage OR replaced, secure both parts using Steps 6 through 9.
Illustration 3 g06340441
Left view
Fuel tank not shown.
(F) Diesel exhaust fluid module
Illustration 4 g06340446
Location CC
(G) Harness bundled to avoid fouling
Illustration 5 g06340447
Location DD
(H) Terminating resistor
Secure control harness assembly (2) and hose assembly (3) to left side of DEF Module using tie straps (4).Reference: Refer to Illustrations 3, 4, and 5.Note: At location (CC), use tie straps to secure harness bundles to prevent harness from contacting the fuel tank. (See Illustration 4).Note: At location (DD), use tie straps (4) to secure control harness assembly (2) and hose assembly (3), and terminating resistor (H) at lower location. (See Illustration 5).
Illustration 6 g06340448
Location of hardware
(C) Hardware
(E) Clamp
Reposition the DEF Module Group, install bracket (1), and reinstall the remaining hardware (C), clamp (E) removed in Step 4. Check to make sure control harness assembly (2) and hose assembly (3) will not
