105407-0511 ZEXEL 9 420 610 529 BOSCH GOVERNOR 9420610529 1054070511

Information governor

BOSCH 9 420 610 529 9420610529

ZEXEL 105407-0511 1054070511

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-0511 zexel genuine, new aftermarket engine parts with delivery

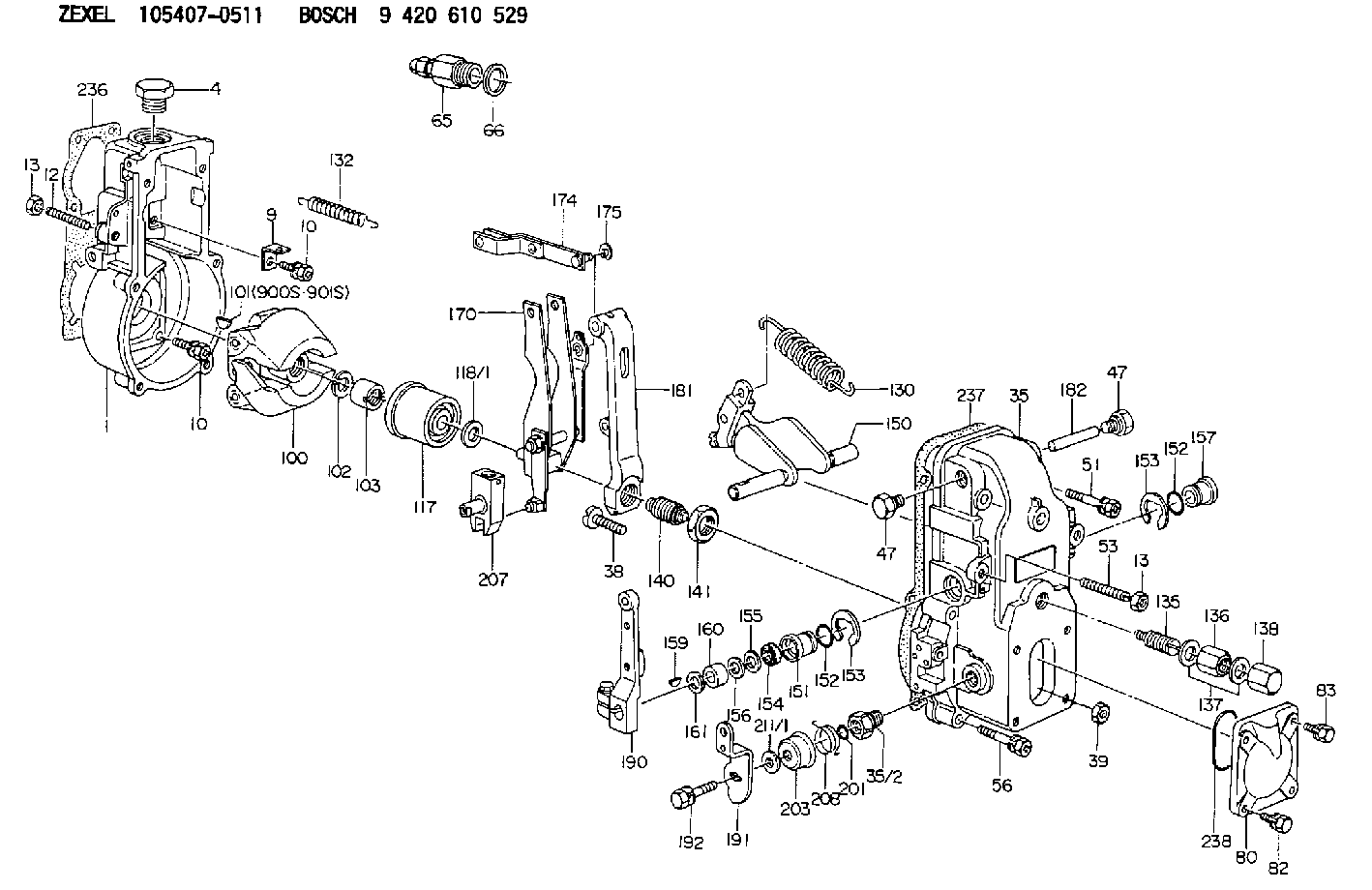

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154007-1600	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153021-8020	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-7100	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154157-0120	HEADLESS SCREW
136.	[1]	029201-2130	UNION NUT M12P1.0H6
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-1220	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154309-6120	CONTROL LEVER
191.	[1]	154304-7100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-0871 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-0511

9 420 610 529

GOVERNOR
* K

Information:

Table 1
Diagnostic Trouble Codes
J1939 Code and Description CDL Code and Description
4334–20
Aftertreatment #1 DEF #1 Pressure (absolute) : Data Drifted High 3090–20
Aftertreatment #1 DEF Pressure Sensor : Data Drifted High
4334-21
Aftertreatment #1 DEF #1 Pressure (absolute) : Data Drifted Low 3090-21
Aftertreatment #1 DEF Pressure Sensor : Data Drifted Low
3361-5
Aftertreatment #1 DEF Dosing Unit : Current Below Normal 3821-5
Aftertreatment #1 Diesel Exhaust Fluid Dosing Valve Actuator : Current Below Normal
3361-6
Aftertreatment #1 DEF Dosing Unit : Current Above Normal 3821-6
Aftertreatment #1 Diesel Exhaust Fluid Dosing Valve Actuator : Current Above Normal
3516-12
Aftertreatment #1 DEF Concentration : Failure 3100-12
Aftertreatment #1 DEF Tank Fluid Quality Sensor : Failure
Table 2
Event Codes
J1939 Code and Description CDL Code and Description
5392-31
Aftertreatment Diesel Exhaust Fluid Dosing Unit Loss of Prime E1370 (2)
Aftertreatment #1 DEF Dosing Unit Loss of Prime
4334-18
Aftertreatment #1 DEF #1 Pressure (absolute) : Low - moderate severity (2) E931 (2)
Low Aftertreatment #1 DEF Pressure
4334-16
Aftertreatment #1 DEF #1 Pressure (absolute) : High - moderate severity (2) E930 (2)
High Aftertreatment #1 DEF Pressure
3516-16
Aftertreatment #1 DEF Concentration : High - moderate severity (2) E1365 (2)
High Aftertreatment #1 DEF Concentration
3516-18
Aftertreatment #1 DEF Concentration : Low - moderate severity (2) E1364 (2)
Low Aftertreatment #1 DEF Concentration
5246-15
Aftertreatment SCR Operator Inducement Severity : High - least severe (1) E1389 (1)
Aftertreatment #1 SCR Operator Inducement
5246-16
Aftertreatment SCR Operator Inducement Severity : High - moderate severity (2) E1389 (2)
Aftertreatment #1 SCR Operator Inducement
5246-0
Aftertreatment SCR Operator Inducement Severity : High - most severe (3) E1389 (3)
Aftertreatment #1 SCR Operator Inducement Ensure that DEF fluid conforms to specification ISO 22241 requirements and fluid handling, filling, and storage procedures are strictly followed.All transfer equipment and storage containers should be used exclusively for DEF and should not be reused for other fluids. For example coolants, fuels, oils, and windshield washer fluid.If contamination of the DEF system is suspected, refer to Troubleshooting, DEF Concentration is Incorrect. Ensure that the correct troubleshooting steps are followed. To test for contamination of the DEF tank, refer to Systems Operation Testing and Adjusting, Diesel Exhaust Fluid Quality - Test.If the DEF is contaminated, Caterpillar recommends that the DEF tank is flushed. Refer to Systems Operation Testing and Adjusting, Diesel Exhaust Fluid Tank - Flush for the correct procedure.
