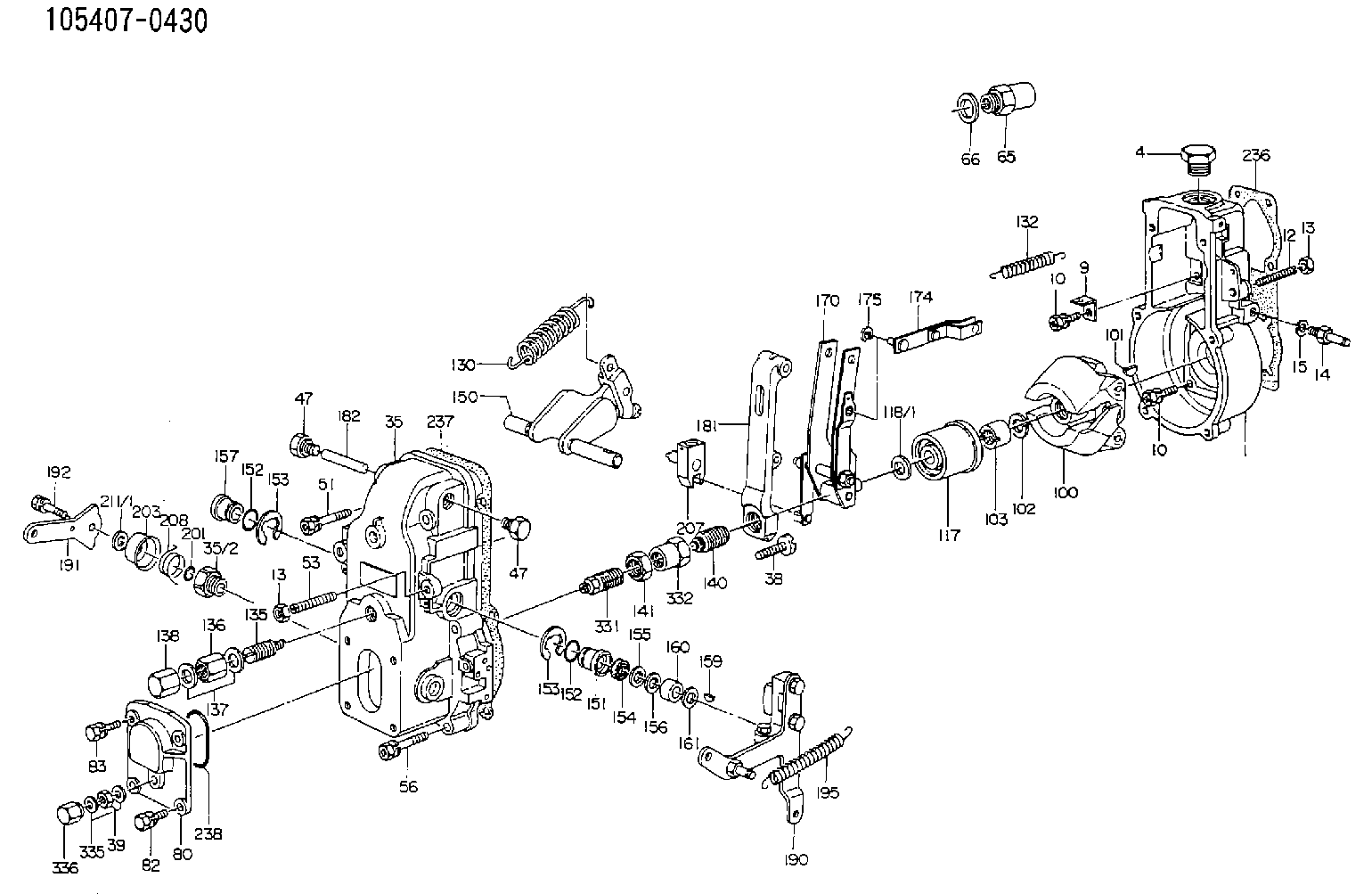

105407-0430 ZEXEL F 019 Z1E 016 BOSCH GOVERNOR f019z1e016 1054070430

When all details are filled in, select "Submit".Note: Two labels and a serial number plate will be sent to the dealer address. If two labels are not received, contact Global_Engine_Marking.
Illustration 14 g03159376
Install the new emissions certification film (6), information label (7), and serial number plate on the cylinder block according to the installation instructions received with the labels and plate.Note: Destroy the old emissions certification film and serial number plate.Operation and Maintenance information
There are several specific messages on this machine. The exact location of the messages and the description of the messages are reviewed in this section. Become familiarized with all messages.Make sure that all of the messages are legible. Clean the messages or replace the messages if you cannot read the words. Replace the illustrations if the illustrations are not legible. When you clean the messages, use a cloth, water, and soap. Do not use solvent, gasoline, or other harsh chemicals to clean the messages. Solvents, gasoline, or harsh chemicals could loosen the adhesive that secures the messages. Loose adhesive will allow the messages to fall.Replace any message that is damaged, or missing. If a message is attached to a part that is replaced, install a message on the replacement part. Any Cat® dealer can provide new messages.
Illustration 15 g03518298
Location of films (1) Engine Oil film (2) Diesel Fuel Requirements filmEngine Oil (1)
This film is located on the engine oil filler tube on the right side of the machine.
Illustration 16 g02448560
Cat® DEO-ULS oils and oils that satisfy the "API CJ-4"and/or "ACEA E9" requirements are required for engines that are equipped with a diesel particulate filter.Diesel Fuel Requirements (2)
This film is located by the fuel filler on the right side of the machine.
Illustration 17 g03619316
Use Ultralow Sulfur Diesel (ULSD) fuel.The Environmental Protection Agency (EPA) defines Ultra-Low Sulfur Diesel (ULSD - S15) as "a diesel fuel with a sulfur content not to exceed 15 parts per million (ppm(mg/kg)) or 0.0015 percent by weight". Engines are equipped with exhaust after-treatment systems are designed to run on ULSD only. Use of LSD or fuels higher than 15 ppm (mg/kg) sulfur in these engines will reduce engine efficiency and engine durability. Damage to the emissions control systems and/or shortened service interval will occur. Failures that result form the use of fuels are not Caterpillar factory defects. Therefore the cost of repairs would not be covered by a Caterpillar warranty.In Europe, ultra low sulfur diesel fuel will have a maximum of 0.0010 percent (10 ppm(mg/kg)) sulfur and is typically referred to as "sulfur-free". This sulfur level is defined in European Standard "EN 590:2004".Lubricant Viscosities - Fluids Recommendations
Engine Oil
Cat® oils have been developed and tested to provide the full performance and life that has been designed and built into Cat® engines.
Illustration 18 g02448560
Cat® DEO-ULS or oils that meet the Cat® ECF-3 specification and the API CJ-4 are required for use in the applications listed below. Cat® DEO-ULS and oils meeting Cat® ECF-3 specification and the API CJ-4 and ACEA E9 oil categories have been developed with limited sulfated ash,
