105404-6240 ZEXEL F 019 Z9E 535 BOSCH GOVERNOR f019z9e535 1054046240

Information governor

BOSCH F 019 Z9E 535 f019z9e535

ZEXEL 105404-6240 1054046240

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105404-6240 zexel genuine, new aftermarket engine parts with delivery

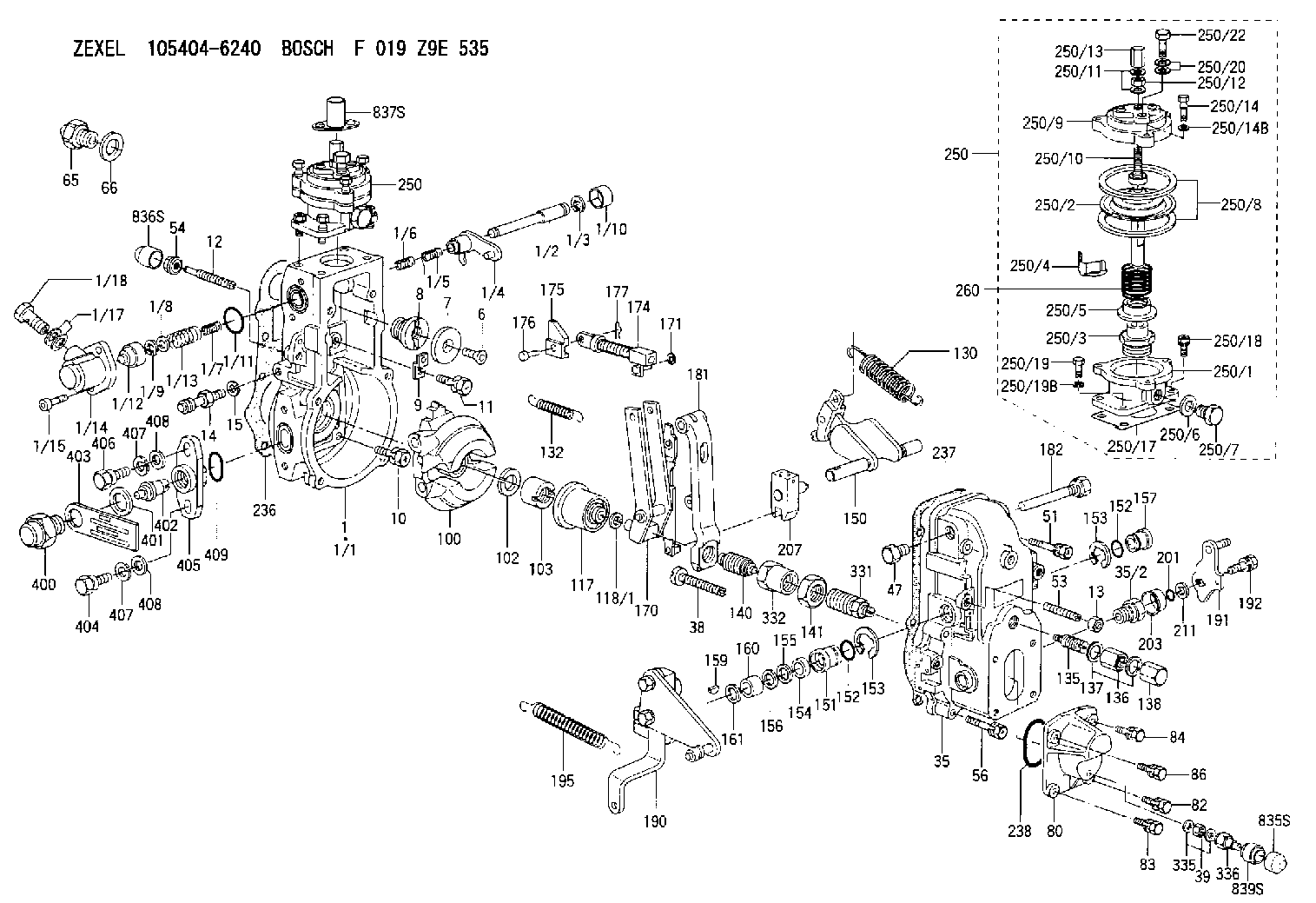

Scheme ###:

1.	[1]	154620-0820	GOVERNOR HOUSING
1/1.	[1]	154620-0020	GOVERNOR HOUSING
1/2.	[1]	154621-3701	LEVER SHAFT
1/3.	[1]	016010-0740	LOCKING WASHER
1/4.	[1]	154415-3320	CONTROL LEVER
1/5.	[1]	154415-3400	COILED SPRING
1/6.	[1]	154621-3800	COILED SPRING
1/7.	[1]	154621-4400	COILED SPRING
1/8.	[1]	139406-1400	SHIM
1/9.	[1]	016010-0540	LOCKING WASHER
1/10.	[1]	154621-3600	CAP
1/11.	[1]	016520-2210	O-RING
1/12.	[1]	154621-3500	BUSHING
1/13.	[1]	154621-3900	COILED SPRING
1/14.	[1]	154620-1600	COVER
1/15.	[2]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
1/17.	[2]	029341-0110	GASKET
1/18.	[1]	029731-0120	EYE BOLT
6.	[1]	154621-4300	BLEEDER SCREW
7.	[1]	154621-4100	PLAIN WASHER
8.	[1]	154620-7900	ADAPTOR
9.	[1]	154375-9020	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154013-6000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
14.	[1]	154013-2320	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	139006-7100	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5120	STOPPING DEVICE
66.	[1]	026518-2240	GASKET D21.9&18.2T1
80.	[1]	154063-5100	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154621-2120	FLYWEIGHT ASSEMBLY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-4100	GOVERNOR SPRING
132.	[1]	154154-5200	COILED SPRING
135.	[1]	154158-5120	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-7020	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154218-1620	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-4720	STRAP
175.	[1]	154232-3200	CONNECTOR
176.	[1]	154222-5800	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154395-8920	CONTROL LEVER
191.	[1]	154382-3720	CONTROL LEVER
192.	[1]	020006-1840	BLEEDER SCREW M6P1L18
195.	[1]	154314-2500	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0600	CAP
207.	[1]	154326-5120	CONTROL LEVER
211.	[0]	029311-0220	SHIM D18&10.3T0.2
211B.	[0]	029311-0230	SHIM D18&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
250.	[1]	154422-7820	MANIFOLD-PRESSURE COMP.
250.	[1]	154422-7820	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154422-7101	DIAPHRAGM HOUSING
250/2.	[1]	154400-9520	DIAPHRAGM
250/3.	[1]	154415-1200	BUSHING
250/4.	[1]	146711-0000	PLATE
250/5.	[1]	154415-1300	UNION NUT
250/6.	[1]	029331-2130	GASKET
250/7.	[1]	029111-2090	CAPSULE
250/8.	[2]	154413-2600	GASKET
250/9.	[1]	154404-5600	COVER
250/10.	[1]	154415-1800	FLAT-HEAD SCREW
250/11.	[2]	026506-1040	GASKET D9.9&6.2T1
250/12.	[1]	013030-6040	UNION NUT M6P1H3.6
250/13.	[1]	154035-1600	CAP NUT
250/14.	[3]	154062-2900	BLEEDER SCREW
250/14B.	[3]	014110-6440	LOCKING WASHER
250/17.	[1]	154620-3200	GASKET
250/18.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/19.	[1]	154062-5001	BLEEDER SCREW
250/19B.	[1]	014110-6440	LOCKING WASHER
250/20.	[2]	029341-0110	GASKET
250/22.	[1]	029731-0120	EYE BOLT
260.	[1]	154425-2500	COILED SPRING
331.	[1]	154179-1820	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-2800	CAP NUT
400.	[1]	154620-8700	CAPSULE
401.	[1]	154620-3100	GASKET D21.9&18.2T1
402.	[1]	154620-8800	BEARING PIN
403.	[1]	154620-8901	PLATE
404.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
405.	[1]	154620-1500	FLANGE BUSHING
406.	[1]	154620-4700	BLEEDER SCREW
407.	[2]	014110-8440	LOCKING WASHER
407.	[2]	014110-8440	LOCKING WASHER
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
409.	[1]	154621-3200	O-RING
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
837S.	[1]	154062-2720	CAP
839S.	[1]	154062-3800	ADAPTOR

Include in #1:

101609-3850 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105404-6240

F 019 Z9E 535
NP-EP/RSV200-1500AQ45A302

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
