Information governor
BOSCH
F 019 Z9E 189
f019z9e189
ZEXEL
105404-6130
1054046130

Rating:

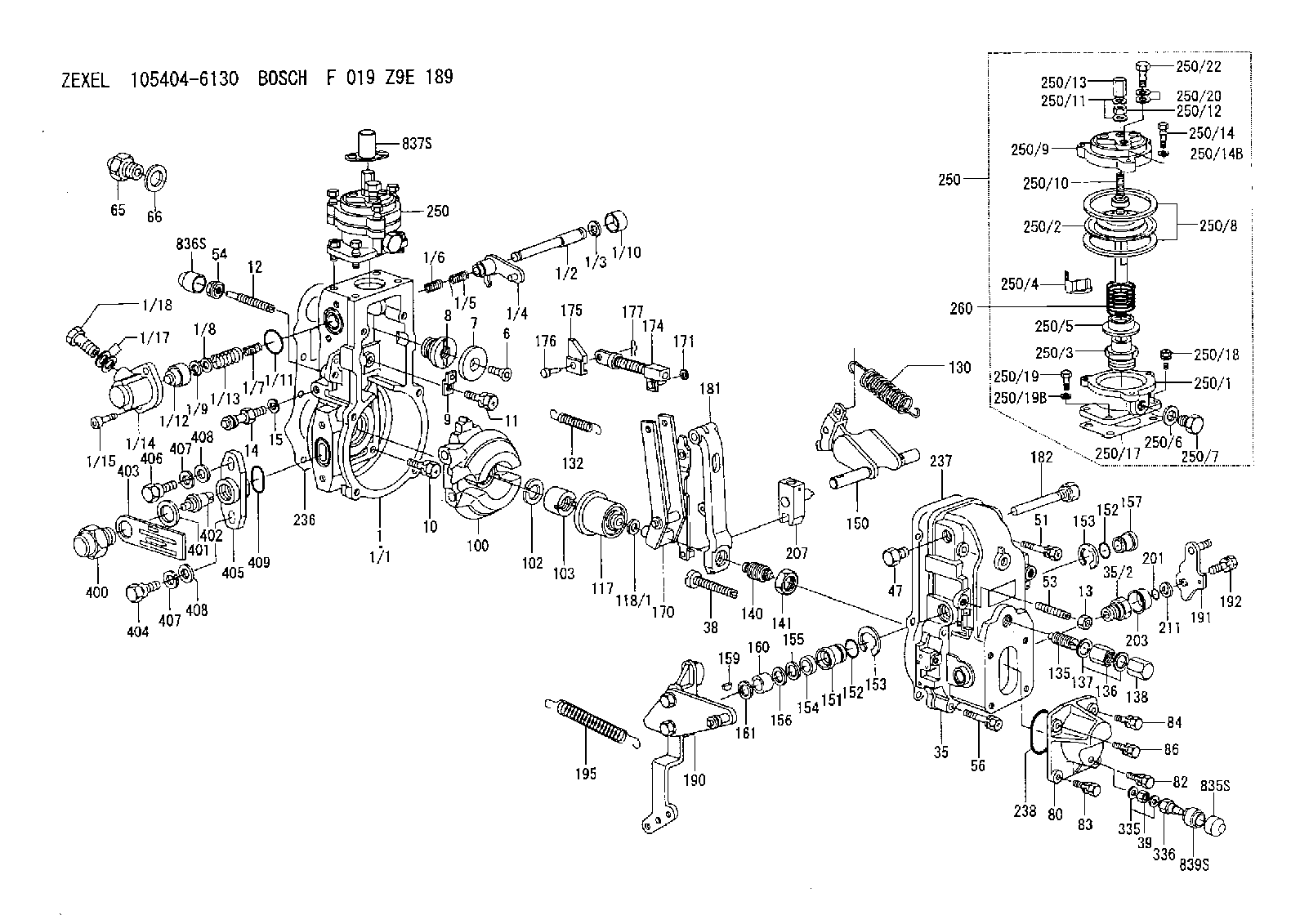

Scheme ###:
1. | [1] | 154620-0820 | GOVERNOR HOUSING |
1/1. | [1] | 154620-0020 | GOVERNOR HOUSING |
1/2. | [1] | 154621-3701 | LEVER SHAFT |
1/3. | [1] | 016010-0740 | LOCKING WASHER |
1/4. | [1] | 154415-3320 | CONTROL LEVER |
1/5. | [1] | 154415-3400 | COILED SPRING |
1/6. | [1] | 154621-3800 | COILED SPRING |
1/7. | [1] | 154621-4400 | COILED SPRING |
1/8. | [1] | 139406-1400 | SHIM |
1/9. | [1] | 016010-0540 | LOCKING WASHER |
1/10. | [1] | 154621-3600 | CAP |
1/11. | [1] | 016520-2210 | O-RING |
1/12. | [1] | 154621-3500 | BUSHING |
1/13. | [1] | 154621-3900 | COILED SPRING |
1/14. | [1] | 154620-1600 | COVER |
1/15. | [2] | 010235-1640 | HEX-SOCKET-HEAD CAP SCREW |
1/17. | [2] | 029341-0110 | GASKET |
1/18. | [1] | 029731-0120 | EYE BOLT |
6. | [1] | 154621-4300 | BLEEDER SCREW |
7. | [1] | 154621-4100 | PLAIN WASHER |
8. | [1] | 154620-7900 | ADAPTOR |
9. | [1] | 154375-9020 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1840 | BLEEDER SCREW M6P1L18 |
12. | [1] | 154013-5000 | FLAT-HEAD SCREW |
13. | [1] | 154011-0100 | HEXAGON NUT |
14. | [1] | 154013-2320 | BLEEDER SCREW |
15. | [1] | 014110-8440 | LOCKING WASHER |
35. | [1] | 154500-8020 | GOVERNOR COVER |
35/2. | [1] | 154321-0400 | BUSHING |
38. | [1] | 154031-4700 | FLAT-HEAD SCREW |
39. | [1] | 139208-0400 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
51. | [2] | 139006-7100 | BLEEDER SCREW |
53. | [1] | 154010-0200 | FLAT-HEAD SCREW |
54. | [1] | 154011-4900 | UNION NUT |
56. | [4] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 155404-5120 | STOPPING DEVICE |
66. | [1] | 026518-2240 | GASKET D21.9&18.2T1 |
80. | [1] | 154063-8400 | COVER |
82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154621-2420 | FLYWEIGHT ASSEMBLY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-6400 | GOVERNOR SPRING |
132. | [1] | 154154-4000 | COILED SPRING |
135. | [1] | 154158-1520 | HEADLESS SCREW |
136. | [1] | 154011-1700 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154177-0620 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-7020 | SWIVELLING LEVER |
151. | [1] | 154204-4300 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-4400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154218-1620 | FORK LEVER |
171. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154235-4720 | STRAP |
175. | [1] | 154232-3200 | CONNECTOR |
176. | [1] | 154222-5800 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154236-4100 | TENSIONING LEVER |
182. | [1] | 154237-1100 | BEARING PIN |
190. | [1] | 154396-8520 | CONTROL LEVER |
191. | [1] | 154382-6720 | CONTROL LEVER |
192. | [1] | 020006-1840 | BLEEDER SCREW M6P1L18 |
195. | [1] | 154314-2600 | COILED SPRING |
201. | [1] | 029631-0030 | O-RING &9.8W2.3 |
203. | [1] | 154322-0600 | CAP |
207. | [1] | 154326-5120 | CONTROL LEVER |
211. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
211B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
250. | [1] | 154422-7820 | MANIFOLD-PRESSURE COMP. |
250. | [1] | 154422-7820 | MANIFOLD-PRESSURE COMP. |
250/1. | [1] | 154422-7101 | DIAPHRAGM HOUSING |
250/2. | [1] | 154400-9520 | DIAPHRAGM |
250/3. | [1] | 154415-1200 | BUSHING |
250/4. | [1] | 146711-0000 | PLATE |
250/5. | [1] | 154415-1300 | UNION NUT |
250/6. | [1] | 029331-2130 | GASKET |
250/7. | [1] | 029111-2090 | CAPSULE |
250/8. | [2] | 154413-2600 | GASKET |
250/9. | [1] | 154404-5600 | COVER |
250/10. | [1] | 154415-1800 | FLAT-HEAD SCREW |
250/11. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
250/12. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
250/13. | [1] | 154035-1600 | CAP NUT |
250/14. | [3] | 154062-2900 | BLEEDER SCREW |
250/14B. | [3] | 014110-6440 | LOCKING WASHER |
250/17. | [1] | 154620-3200 | GASKET |
250/18. | [3] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
250/19. | [1] | 154062-5001 | BLEEDER SCREW |
250/19B. | [1] | 014110-6440 | LOCKING WASHER |
250/20. | [2] | 029341-0110 | GASKET |
250/22. | [1] | 029731-0120 | EYE BOLT |
260. | [1] | 154411-7300 | COILED SPRING |
335. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
336. | [1] | 154035-2900 | CAP NUT |
400. | [1] | 154620-8700 | CAPSULE |
401. | [1] | 154620-3100 | GASKET D21.9&18.2T1 |
402. | [1] | 154620-8800 | BEARING PIN |
403. | [1] | 154620-8901 | PLATE |
404. | [1] | 010038-1840 | BLEEDER SCREW M8P1.25L18 |
405. | [1] | 154620-1500 | FLANGE BUSHING |
406. | [1] | 154620-4700 | BLEEDER SCREW |
407. | [2] | 014110-8440 | LOCKING WASHER |
407. | [2] | 014110-8440 | LOCKING WASHER |
408. | [2] | 014010-8140 | PLAIN WASHER D18&8.5T1.6 |
408. | [2] | 014010-8140 | PLAIN WASHER D18&8.5T1.6 |
409. | [1] | 154621-3200 | O-RING |
835S. | [1] | 154062-4020 | CAP |
836S. | [1] | 154062-3520 | CAP |
837S. | [1] | 154062-2720 | CAP |
839S. | [1] | 154062-3900 | ADAPTOR |
Include in #1:
101609-3790
as GOVERNOR
