105404-6050 ZEXEL F 01G 003 00B BOSCH GOVERNOR f01g00300b 1054046050




Information governor

BOSCH F 01G 003 00B f01g00300b
ZEXEL 105404-6050 1054046050
105404-6050 GOVERNOR
Rating:
51
Buy GOVERNOR 105404-6050 zexel genuine, new aftermarket engine parts with delivery

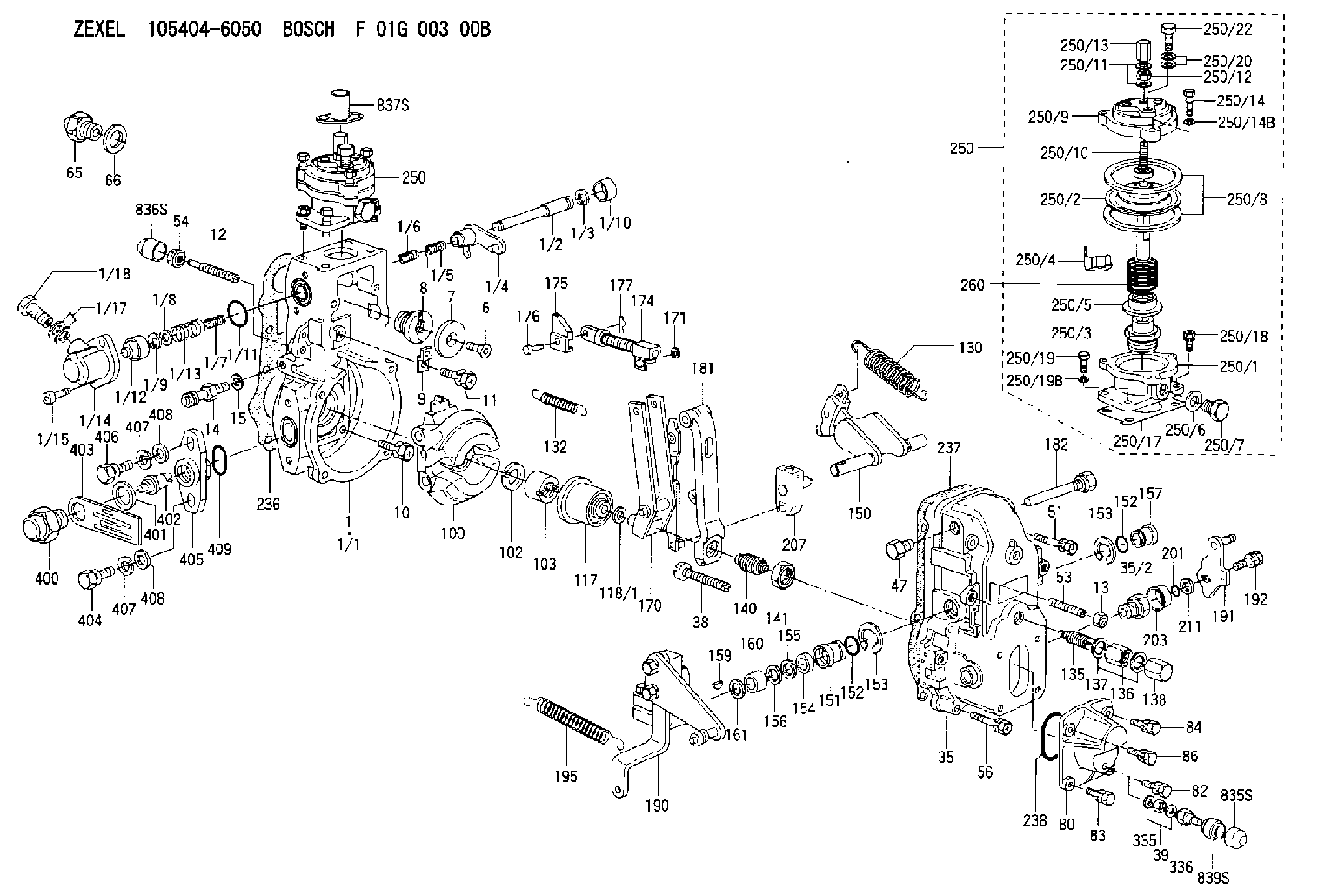

Scheme ###:

GOVERNOR HOUSING
1. [1] 154620-0820 GOVERNOR HOUSING
1/1. [1] 154620-0020 GOVERNOR HOUSING
1/2. [1] 154621-3701 LEVER SHAFT
1/3. [1] 016010-0740 LOCKING WASHER
1/4. [1] 154415-3320 CONTROL LEVER
1/5. [1] 154415-3400 COILED SPRING
1/6. [1] 154621-3800 COILED SPRING
1/7. [1] 154621-4400 COILED SPRING
1/8. [1] 139406-1400 SHIM
1/9. [1] 016010-0540 LOCKING WASHER
1/10. [1] 154621-3600 CAP
1/11. [1] 016520-2210 O-RING
1/12. [1] 154621-3500 BUSHING
1/13. [1] 154621-3900 COILED SPRING
1/14. [1] 154620-1600 COVER
1/15. [2] 010235-1640 HEX-SOCKET-HEAD CAP SCREW
1/17. [2] 029341-0110 GASKET
1/18. [1] 029731-0120 EYE BOLT
6. [1] 154621-4300 BLEEDER SCREW
7. [1] 154621-4100 PLAIN WASHER
8. [1] 154620-7900 ADAPTOR
9. [1] 154375-9020 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154013-6100 FLAT-HEAD SCREW
13. [1] 154011-0100 HEXAGON NUT
14. [1] 154013-2320 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-8020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-4700 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 139006-7100 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
54. [1] 154011-4900 UNION NUT
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 153020-5220 STOPPING DEVICE
66. [1] 026518-2240 GASKET D21.9&18.2T1
80. [1] 154063-8400 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154621-2120 FLYWEIGHT ASSEMBLY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-5200 COILED SPRING
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-1520 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154218-1620 FORK LEVER
171. [1] 016010-0540 LOCKING WASHER
174. [1] 154235-4720 STRAP
175. [1] 154232-3200 CONNECTOR
176. [1] 154222-5800 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154396-2320 CONTROL LEVER
191. [1] 154382-3720 CONTROL LEVER
192. [1] 020006-1840 BLEEDER SCREW M6P1L18
195. [1] 154314-2500 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0600 CAP
207. [1] 154326-5120 CONTROL LEVER
211. [0] 029311-0220 SHIM D18&10.3T0.2
211B. [0] 029311-0230 SHIM D18&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
250. [1] 154422-7820 MANIFOLD-PRESSURE COMP.
250. [1] 154422-7820 MANIFOLD-PRESSURE COMP.
250/1. [1] 154422-7101 DIAPHRAGM HOUSING
250/2. [1] 154400-9520 DIAPHRAGM
250/3. [1] 154415-1200 BUSHING
250/4. [1] 146711-0000 PLATE
250/5. [1] 154415-1300 UNION NUT
250/6. [1] 029331-2130 GASKET
250/7. [1] 029111-2090 CAPSULE
250/8. [2] 154413-2600 GASKET
250/9. [1] 154404-5600 COVER
250/10. [1] 154415-1800 FLAT-HEAD SCREW
250/11. [2] 026506-1040 GASKET D9.9&6.2T1
250/12. [1] 013030-6040 UNION NUT M6P1H3.6
250/13. [1] 154035-1600 CAP NUT
250/14. [3] 154062-2900 BLEEDER SCREW
250/14B. [3] 014110-6440 LOCKING WASHER
250/17. [1] 154620-3200 GASKET
250/18. [3] 020106-1640 BLEEDER SCREW M6P1.0L14
250/19. [1] 154062-5001 BLEEDER SCREW
250/19B. [1] 014110-6440 LOCKING WASHER
250/20. [2] 029341-0110 GASKET
250/22. [1] 029731-0120 EYE BOLT
260. [1] 154425-2800 COILED SPRING
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2900 CAP NUT
400. [1] 154620-8700 CAPSULE
401. [1] 154620-3100 GASKET D21.9&18.2T1
402. [1] 154620-8800 BEARING PIN
403. [1] 154620-8901 PLATE
404. [1] 010038-1840 BLEEDER SCREW M8P1.25L18
405. [1] 154620-1500 FLANGE BUSHING
406. [1] 154620-4700 BLEEDER SCREW
407. [2] 014110-8440 LOCKING WASHER
407. [2] 014110-8440 LOCKING WASHER
408. [2] 014010-8140 PLAIN WASHER D18&8.5T1.6
408. [2] 014010-8140 PLAIN WASHER D18&8.5T1.6
409. [1] 154621-3200 O-RING
835S. [1] 154062-4020 CAP
836S. [1] 154062-3520 CAP
837S. [1] 154062-2720 CAP
839S. [1] 154062-3900 ADAPTOR

Include in #1:

101609-3720 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105404-6050
F 01G 003 00B
NP-EP/RSV200-1300AQ39C302

GOVERNOR
K




Information:


Illustration 3 g01007381
Modified 2P-5494 crowfoot wrench
Remove the hose assembly (6) and the two connectors (7). Discard these parts.
Illustration 4 g01043882
(5) HEUI pump (6) Flexible oil line (7) Connector (8) Injection actuation pressure control valveInstallation of the 240-0717 Engine Oil Lines Gp
Illustration 5 g01043862
(5) HEUI pump (8) Injection actuation pressure control valve (9) Connector (10) Clip (11) Washer (12) Bolt (13) Spacer (14) Tube assembly (15) O-ring (16) O-ring (17) ElbowNote: Some engines may not have a fuel filter mounting bracket. The existence of the fuel filter mounting bracket on the air inlet cover helps to determine the proper spacer to use. If the fuel filter bracket is mounted on the air inlet cover then the 135-5096 Spacer must be used. If the fuel filter bracket is not mounted on the air inlet cover then the

Have questions with 105404-6050?





Group cross 105404-6050 ZEXEL

105404-6000


GOVERNOR
105404-6001

105404-6002
F 019 Z4E 012

GOVERNOR
105404-6002
F 01G 003 005
NP-EP/RSV200-1050AQ37C312K

GOVERNOR
105404-6010
F 019 Z3E 492
NP-EP/RSV200-1300AQ39A302

GOVERNOR
105404-6020
F 01G 003 00F
NP-EP/RSV200-1200AQ36A312

GOVERNOR
105404-6030
F 01G 003 00D
NP-EP/RSV200-1500AQ45A302

GOVERNOR
105404-6040
F 019 Z3E 638

GOVERNOR
105404-6050
F 01G 003 00B
NP-EP/RSV200-1300AQ39C302

GOVERNOR
105404-6060

105404-6061
F 019 Z3E 755

GOVERNOR
105404-6061
F 019 Z3E 855
NP-EP/RSV200-1200AQ36A312

GOVERNOR
105404-6070
F 019 Z3E 707
NP-EP/RSV200-1300AQ39A302

GOVERNOR
105404-6080
F 019 Z3E 964
NP-EP/RSV200-1200AQ36C312K

GOVERNOR
105404-6090
F 019 Z3E 952
NP-EP/RSV200-1200AQ36C312K

GOVERNOR
