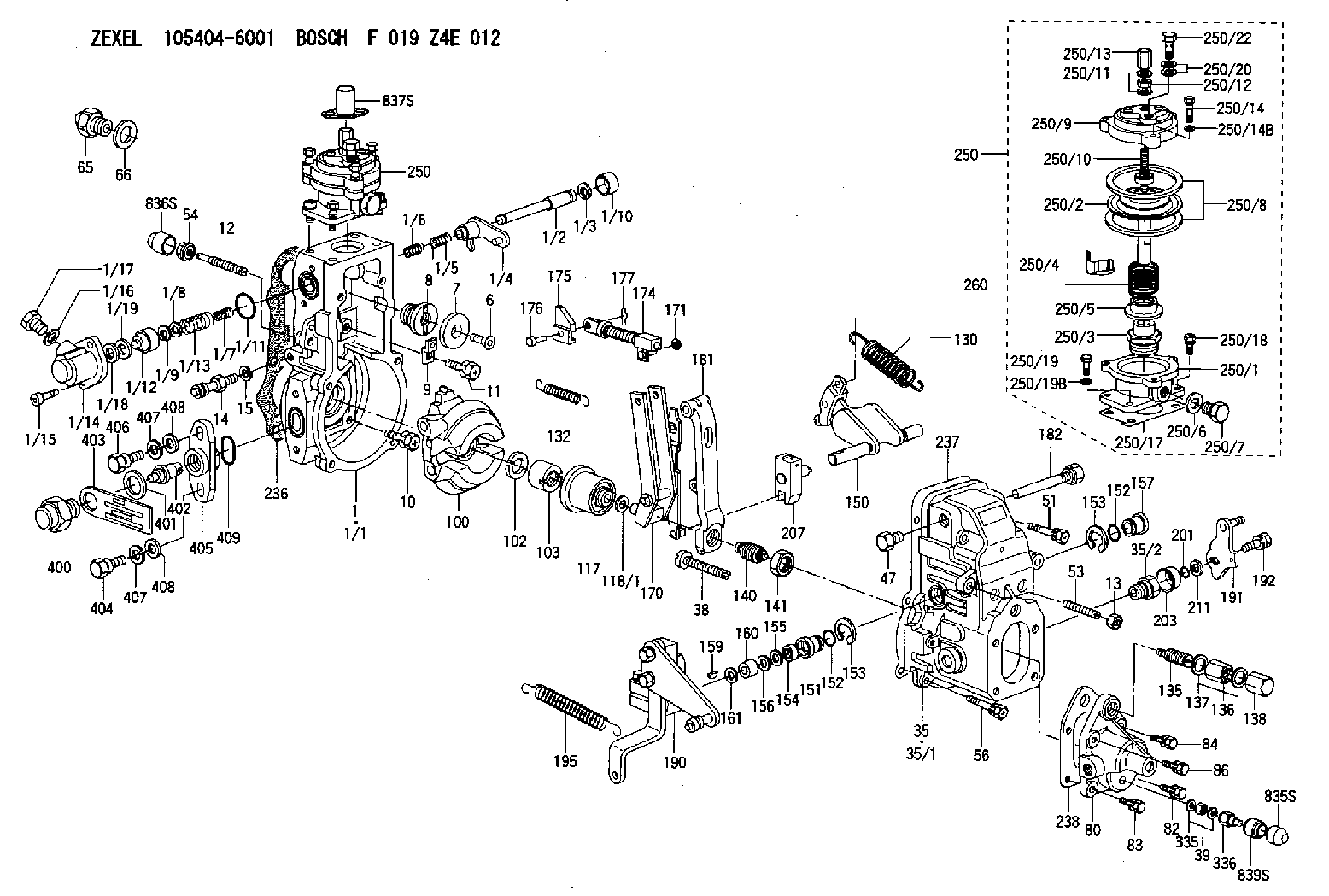

105404-6001 ZEXEL F 019 Z4E 012 BOSCH GOVERNOR f019z4e012 1054046001

Not following the recommendations found in this Special Publication can lead to reduced performance and compartment failure.
Cat Fluids
Cat fluids have been developed and tested by Caterpillar in order to increase the performance of Cat components and the life of Cat components. The quality of finished oil is dependent on the quality of the base stock, the quality of the additives and the compatibility of the base stock and additives. Cat fluids are formulated of high quality refined oil base stocks and additives of optimal chemistry and quantity to provide high performance in engines and machine components. Cat fluids are used for factory fill of Cat engines and components and are offered by Caterpillar dealers for service fills and as aftermarket products. Consult your Caterpillar dealer for more information on these Cat fluids.
Table 1
Cat lubricants for on-highway applications
Compartment or System     Oil Type     Oil Viscosity Grade     Typical Application Temp C (1)     Typical Application Temp F (1)
Min Max     Min     Max
Engine Oils     Cat DEO-ULS     SAE 15W-40     -9.5     50     15     122
SAE 10W-30 -18     40     0     104
Cat DEO-ULS SYN SAE 5W-40     -30     50     -22     122
Cat DEO SAE 15W-40     -9.5     50     15     122
SAE 10W-30 -18     40     0     104
Cat DEO SYN SAE 5W-40     -30     50     -22     122
Cat Arctic DEO SYN SAE 0W-30     -40     30     -40     86
Transmission and Drive Train Oils (On-Highway applications)     Cat ATF-HD     Multi-Grade Synthetic     (2)         (2)
Hydraulic Oils     Cat HYDO Advanced     SAE 10W     -20     40     -4     104
SAE 30 10     50     50     122
Cat Bio HYDO (HEES) ISO 46 Multi-grade     -25     45     -13     113
( 1 ) The application temperatures will vary per machine application. Follow the recommendations provided in the "Lubricant Viscosity" section of this Special Publication and your Operation and Maintenance Manual for fluid temperature recommendations of the specific application and machine compartment.
( 2 ) If the temperature is less than -23° C (-10° F), warm up the engine for 20 minutes. As an alternative to the warm up, you may install an appropriate transmission oil heater.
Table 2
Caterpillar Grease and Coolant products
Grease     Cat Multipurpose Grease
Cat Advanced 3Moly Grease
Cat Ultra 5Moly Grease
Cat Desert Gold Grease
Cat Arctic Platinum Grease
Cat High Speed Ball Bearing Grease
Cat White Assembly Grease
Coolants     Cat ELC (Extended Life Coolant)
Cat ELC Extender (for use with Cat ELC)
Cat DEAC (Diesel Engine Antifreeze/Coolant)
Cat SCA (Supplemental Coolant Additive, for use with Cat DEAC) This information is only for Caterpillar on-highway diesel engines. For more lubricant recommendations see the following Special Publications:
Special Publication, SEBU6251, "Caterpillar Commercial Diesel Engine Fluid Recommendations"
Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations"
Special Publication,
