105404-5960 ZEXEL F 01G 003 006 BOSCH GOVERNOR f01g003006 1054045960

Information governor

BOSCH F 01G 003 006 f01g003006

ZEXEL 105404-5960 1054045960

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105404-5960 zexel genuine, new aftermarket engine parts with delivery

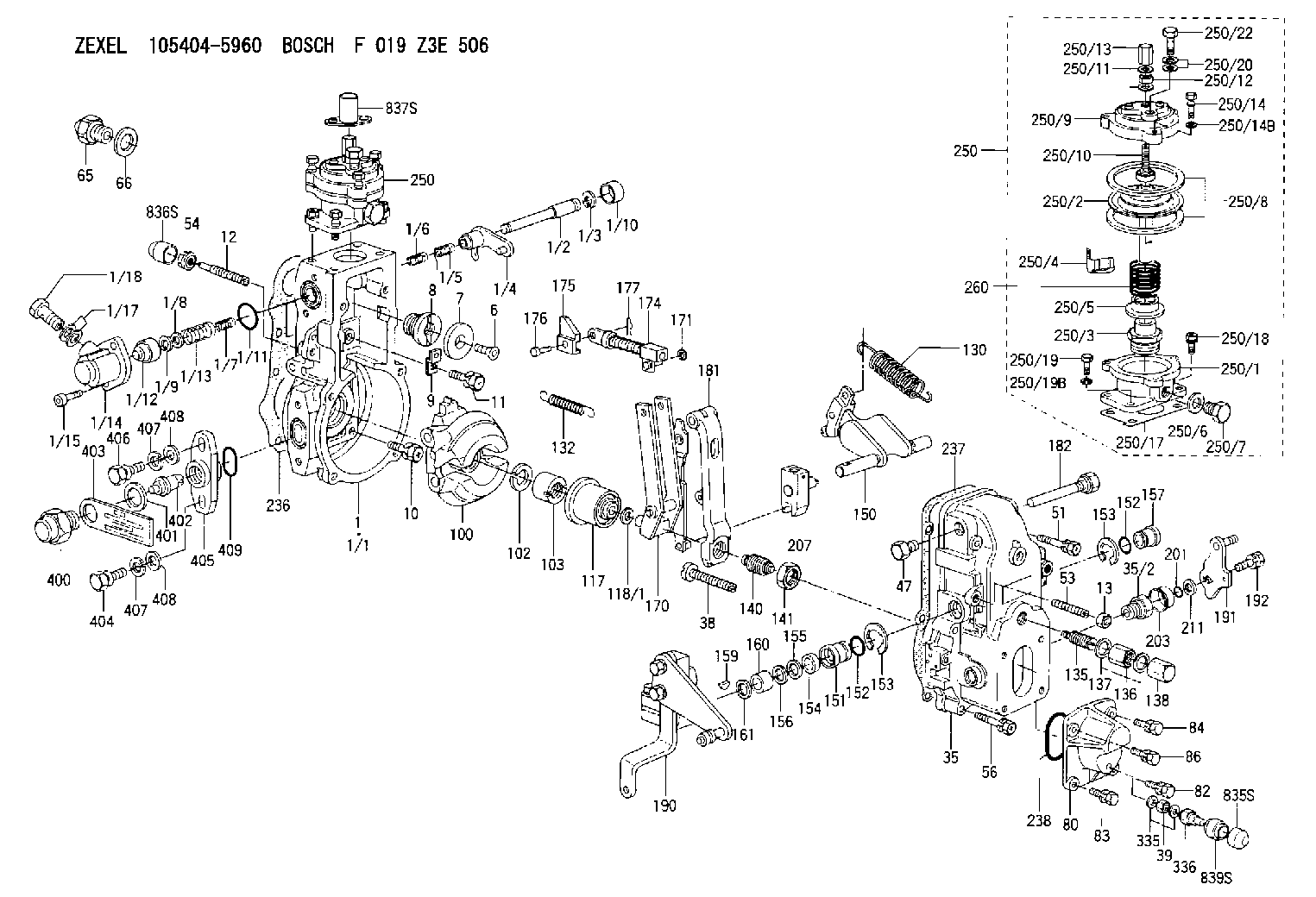

Scheme ###:

1.	[1]	154620-0820	GOVERNOR HOUSING
1/1.	[1]	154620-0020	GOVERNOR HOUSING
1/2.	[1]	154621-3701	LEVER SHAFT
1/3.	[1]	016010-0740	LOCKING WASHER
1/4.	[1]	154415-3320	CONTROL LEVER
1/5.	[1]	154415-3400	COILED SPRING
1/6.	[1]	154621-3800	COILED SPRING
1/7.	[1]	154621-4400	COILED SPRING
1/8.	[1]	139406-1400	SHIM
1/9.	[1]	016010-0540	LOCKING WASHER
1/10.	[1]	154621-3600	CAP
1/11.	[1]	016520-2210	O-RING
1/12.	[1]	154621-3500	BUSHING
1/13.	[1]	154621-3900	COILED SPRING
1/14.	[1]	154620-1600	COVER
1/15.	[2]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
1/17.	[2]	029341-0110	GASKET
1/18.	[1]	029731-0120	EYE BOLT
6.	[1]	154621-4300	BLEEDER SCREW
7.	[1]	154621-4100	PLAIN WASHER
8.	[1]	154620-7900	ADAPTOR
9.	[1]	154375-9020	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154013-6000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154500-8020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-4700	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	139006-7100	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5120	STOPPING DEVICE
66.	[1]	026518-2240	GASKET D21.9&18.2T1
80.	[1]	154063-8400	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154621-2120	FLYWEIGHT ASSEMBLY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-5200	COILED SPRING
135.	[1]	154158-1220	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0620	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154218-1620	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-4720	STRAP
175.	[1]	154232-3200	CONNECTOR
176.	[1]	154222-5800	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154396-8020	CONTROL LEVER
191.	[1]	154382-3720	CONTROL LEVER
192.	[1]	020006-1840	BLEEDER SCREW M6P1L18
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0600	CAP
207.	[1]	154326-5120	CONTROL LEVER
211.	[0]	029311-0220	SHIM D18&10.3T0.2
211B.	[0]	029311-0230	SHIM D18&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
250.	[1]	154422-7820	MANIFOLD-PRESSURE COMP.
250.	[1]	154422-7820	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154422-7101	DIAPHRAGM HOUSING
250/2.	[1]	154400-9520	DIAPHRAGM
250/3.	[1]	154415-1200	BUSHING
250/4.	[1]	146711-0000	PLATE
250/5.	[1]	154415-1300	UNION NUT
250/6.	[1]	029331-2130	GASKET
250/7.	[1]	029111-2090	CAPSULE
250/8.	[2]	154413-2600	GASKET
250/9.	[1]	154404-5600	COVER
250/10.	[1]	154415-1800	FLAT-HEAD SCREW
250/11.	[2]	026506-1040	GASKET D9.9&6.2T1
250/12.	[1]	013030-6040	UNION NUT M6P1H3.6
250/13.	[1]	154035-1600	CAP NUT
250/14.	[3]	154062-2900	BLEEDER SCREW
250/14B.	[3]	014110-6440	LOCKING WASHER
250/17.	[1]	154620-3200	GASKET
250/18.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/19.	[1]	154062-5001	BLEEDER SCREW
250/19B.	[1]	014110-6440	LOCKING WASHER
250/20.	[2]	029341-0110	GASKET
250/22.	[1]	029731-0120	EYE BOLT
260.	[1]	154411-7300	COILED SPRING
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2900	CAP NUT
400.	[1]	154620-8700	CAPSULE
401.	[1]	154620-3100	GASKET D21.9&18.2T1
402.	[1]	154620-8800	BEARING PIN
403.	[1]	154620-8901	PLATE
404.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
405.	[1]	154620-1500	FLANGE BUSHING
406.	[1]	154620-4700	BLEEDER SCREW
407.	[2]	014110-8440	LOCKING WASHER
407.	[2]	014110-8440	LOCKING WASHER
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
409.	[1]	154621-3200	O-RING
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
837S.	[1]	154062-2720	CAP
839S.	[1]	154062-3900	ADAPTOR

Include in #1:

101609-3690 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105404-5960

F 01G 003 006
NP-EP/RSV200-1300AQ39C302

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

If equipped with an air inlet heater (AIH) for cold weather starting, do not use types of starting aids such as ether. Such use could result in an explosion and injury.
When starting the engine with ether, follow these starting procedure instructions carefully. Use ether sparingly and spray it ONLY WHILE CRANKING THE ENGINE. Excessive ether use can cause piston and ring damage. Ether should be used only for cold weather starting.
Table 1
Medium and Heavy-Duty On-Highway Engines (1)
Cold Weather Recommendations
Starting Aids
Expected Coldest Temperature Ether Injection (2)
OR
Air Inlet Heater Cylinder Block Coolant Heater Larger Battery
Larger Alternator
Above
−7 °C (19 °F) Available Available Available
−7 °C (19 °F) to
−18 °C (0 °F) Available Available Available
−18 °C (0 °F) to
−28 °C (−18 °F) Recommended Required Recommended
−28 °C (−18 °F) to
−40 °C (−40 °F) Recommended Required Required
Less than
−40 °C (−40 °F) Required Required Required
( 1 ) Options may not be available for all models.
( 2 ) If the engine is equipped with an air inlet heater (AIH) for cold weather starting, do not use types of starting aids such as ether. Such use could result in an explosion and injury.
Table 2
Medium and Heavy-Duty On-Highway Engines (1)
Cold Weather Recommendations
Improvements for Engine Warm-Up
Improvements for Idle Temperature
Expected Coldest Temperature Hand Throttles Winter Fronts
Shutters Air Cleaners
Located Under the Hood On/Off
Fan Drives BrakeSavers
Exhaust Restrictors
Above
−7 °C (19 °F) Available Available Available Available Available
−7 °C (19 °F) to
−18 °C (0 °F) Available Recommended Recommended Recommended Available
−18 °C (0 °F) to
−28 °C (−18 °F) Recommended Required Recommended Required Recommended
−28 °C (−18 °F) to
−40 °C (−40 °F) Required Required Recommended Required Recommended
Less than
−40 °C (−40 °F) Required Required Recommended Required Required
( 1 ) Options may not be available for all models.
