105404-5861 ZEXEL F 019 Z2E 958 BOSCH GOVERNOR f019z2e958 1054045861

Information governor

BOSCH F 019 Z2E 958 f019z2e958

ZEXEL 105404-5861 1054045861

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105404-5861 zexel genuine, new aftermarket engine parts with delivery

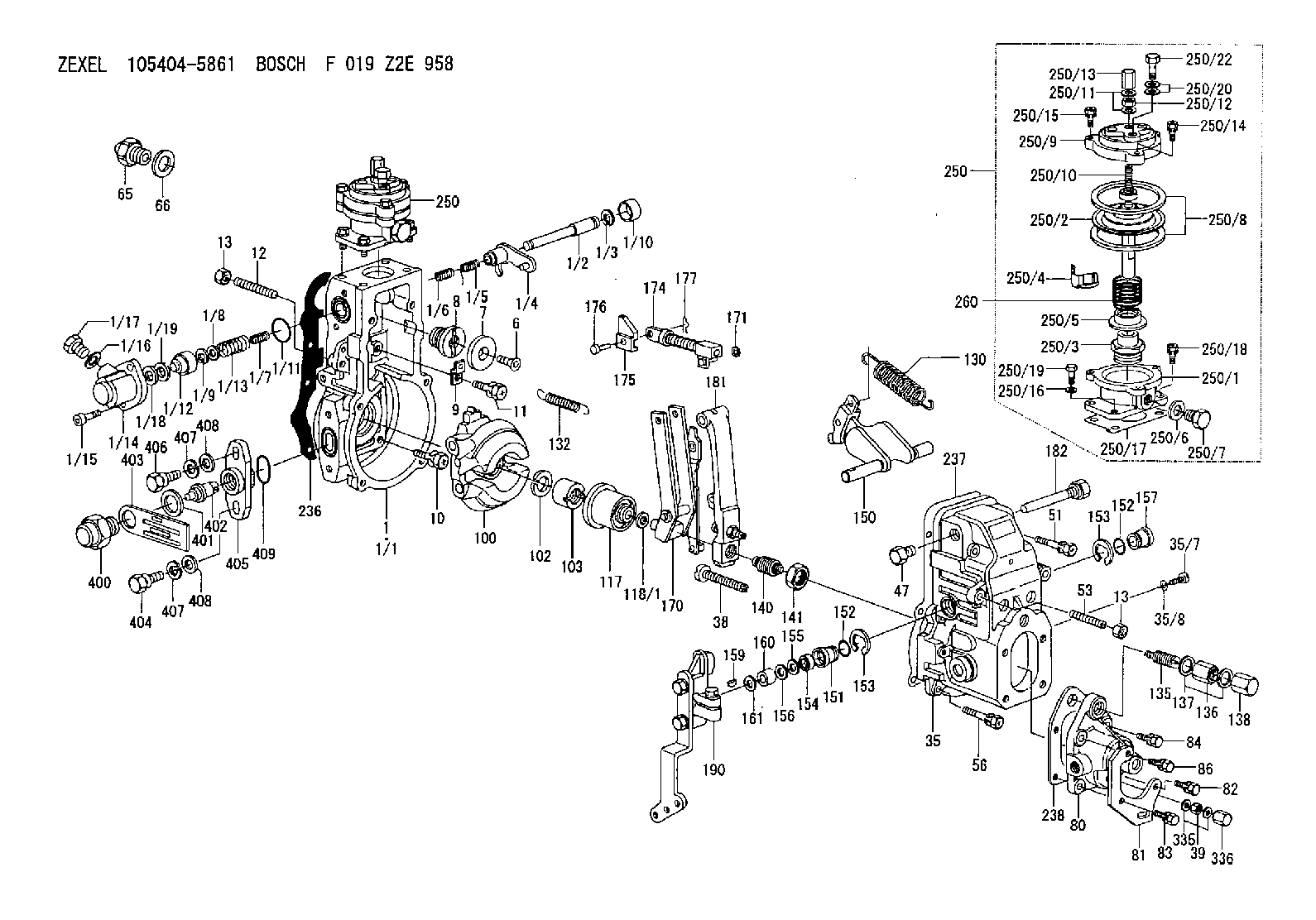

Scheme ###:

1.	[1]	154620-0720	GOVERNOR HOUSING
1/1.	[1]	154620-0020	GOVERNOR HOUSING
1/2.	[1]	154621-3701	LEVER SHAFT
1/3.	[1]	016010-0740	LOCKING WASHER
1/4.	[1]	154415-3320	CONTROL LEVER
1/5.	[1]	154415-3400	COILED SPRING
1/6.	[1]	154621-3800	COILED SPRING
1/7.	[1]	154621-4400	COILED SPRING
1/8.	[1]	139406-1400	SHIM
1/9.	[1]	016010-0540	LOCKING WASHER
1/10.	[1]	154621-3600	CAP
1/11.	[1]	016520-2210	O-RING
1/12.	[1]	154621-3500	BUSHING
1/13.	[1]	154621-3900	COILED SPRING
1/14.	[1]	154620-1600	COVER
1/15.	[2]	010235-1640	HEX-SOCKET-HEAD CAP SCREW
1/16.	[1]	026510-1440	GASKET D13.9&10.2T1
1/17.	[1]	029111-0010	CAPSULE
1/18.	[1]	139308-1500	PLAIN WASHER D18&8T1.0
1/19.	[4]	029300-7020	PLAIN WASHER
6.	[1]	154621-4300	BLEEDER SCREW
7.	[1]	154621-4100	PLAIN WASHER
8.	[1]	154620-7900	ADAPTOR
9.	[1]	154375-9020	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154022-8720	GOVERNOR COVER
35/7.	[1]	154222-2700	FLAT-HEAD SCREW
35/8.	[1]	014110-3440	LOCKING WASHER
38.	[1]	154031-4700	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	139006-7100	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153020-5220	STOPPING DEVICE
66.	[1]	026518-2240	GASKET D21.9&18.2T1
80.	[1]	154064-4200	COVER
81.	[1]	154376-3000	BRACKET
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
100.	[1]	154621-2520	FLYWEIGHT ASSEMBLY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154151-1300	GOVERNOR SPRING
132.	[1]	154154-5200	COILED SPRING
135.	[1]	154158-5820	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-2920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154218-7320	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-4720	STRAP
175.	[1]	154232-3200	CONNECTOR
176.	[1]	154222-5800	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154239-5120	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154395-8620	CONTROL LEVER
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154390-5000	GASKET
250.	[1]	154422-7520	MANIFOLD-PRESSURE COMP.
250.	[1]	154422-7520	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154422-7101	DIAPHRAGM HOUSING
250/2.	[1]	154400-9520	DIAPHRAGM
250/3.	[1]	154413-3600	BUSHING
250/4.	[1]	146711-0000	PLATE
250/5.	[1]	146716-0000	UNION NUT
250/6.	[1]	029331-2130	GASKET
250/7.	[1]	029111-2090	CAPSULE
250/8.	[2]	154413-2600	GASKET
250/9.	[1]	154404-5600	COVER
250/10.	[1]	154415-1800	FLAT-HEAD SCREW
250/11.	[2]	026506-1040	GASKET D9.9&6.2T1
250/12.	[1]	013030-6040	UNION NUT M6P1H3.6
250/13.	[1]	154035-1600	CAP NUT
250/14.	[2]	020106-2240	BLEEDER SCREW
250/15.	[1]	029010-6310	BLEEDER SCREW
250/16.	[1]	014110-6440	LOCKING WASHER
250/17.	[1]	154620-3200	GASKET
250/18.	[3]	020106-1640	BLEEDER SCREW M6P1.0L14
250/19.	[1]	029020-6210	BLEEDER SCREW
250/20.	[2]	029341-0110	GASKET
250/22.	[1]	029731-0120	EYE BOLT
260.	[1]	154411-8700	COILED SPRING
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
400.	[1]	154620-8700	CAPSULE
401.	[1]	154620-3100	GASKET D21.9&18.2T1
402.	[1]	154620-8800	BEARING PIN
403.	[1]	154620-8901	PLATE
404.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
405.	[1]	154620-1500	FLANGE BUSHING
406.	[1]	154620-4700	BLEEDER SCREW
407.	[2]	014110-8440	LOCKING WASHER
407.	[2]	014110-8440	LOCKING WASHER
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
409.	[1]	154621-3200	O-RING

Include in #1:

101609-3621 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105404-5861

F 019 Z2E 958
NP-EP/RSV200-1200AQ36C22K

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
