105404-5470 ZEXEL F 019 Z9E 663 BOSCH GOVERNOR f019z9e663 1054045470

Information governor

BOSCH F 019 Z9E 663 f019z9e663

ZEXEL 105404-5470 1054045470

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105404-5470 zexel genuine, new aftermarket engine parts with delivery

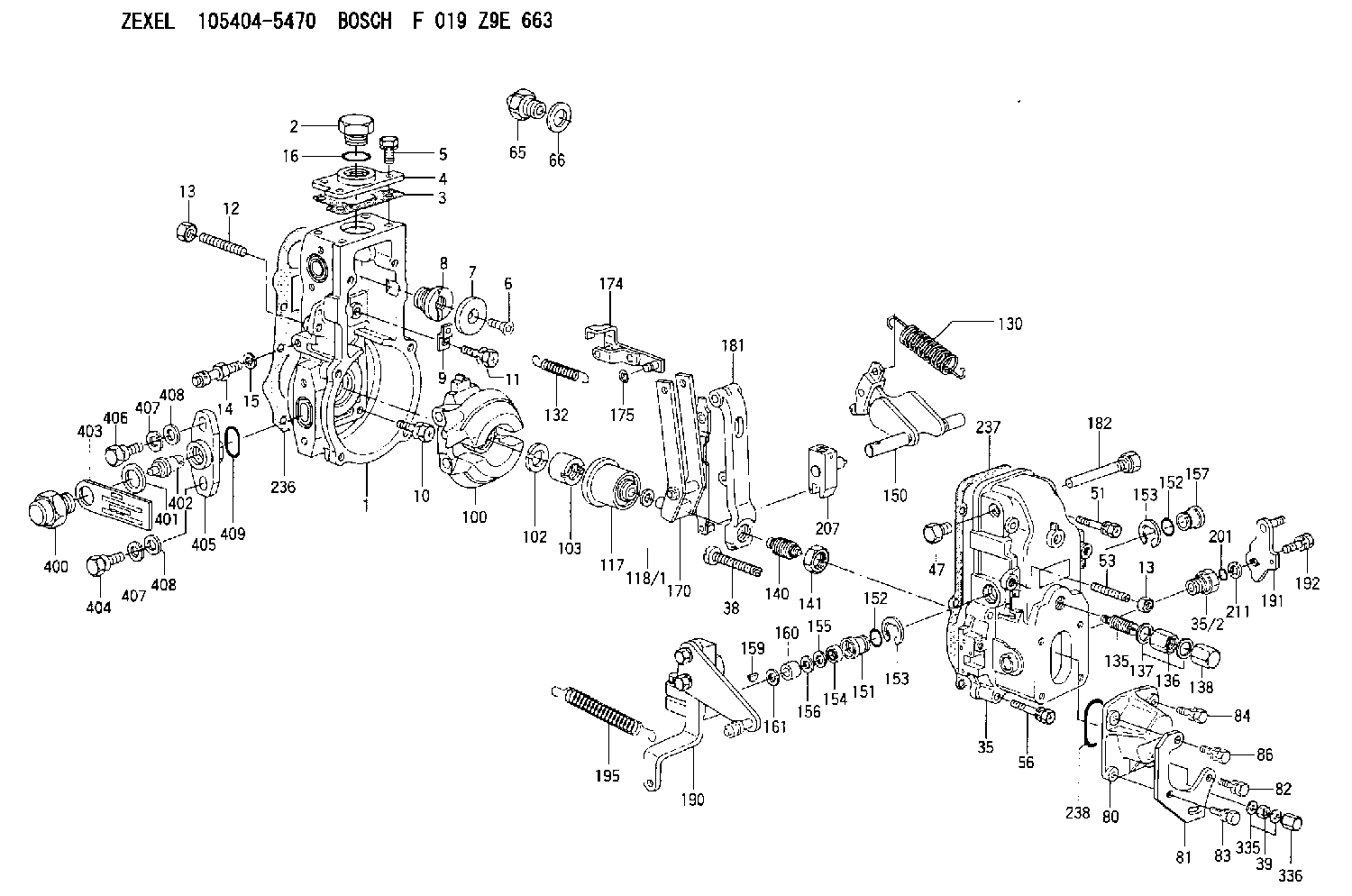

Scheme ###:

1.	[1]	154620-0200	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154620-3200	GASKET
4.	[1]	154620-1401	COVER
5.	[4]	020006-1640	BLEEDER SCREW M6P1L16 4T
6.	[1]	154621-4300	BLEEDER SCREW
7.	[1]	154621-4100	PLAIN WASHER
8.	[1]	154620-7900	ADAPTOR
9.	[1]	154375-9020	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154013-2320	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
16.	[1]	029632-5070	O-RING
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	139006-7100	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5120	STOPPING DEVICE
66.	[1]	026518-2240	GASKET D21.9&18.2T1
80.	[1]	154063-5100	COVER
81.	[1]	154358-7200	BRACKET
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
100.	[1]	154621-2120	FLYWEIGHT ASSEMBLY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-4100	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
135.	[1]	154158-3220	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-1020	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4420	FORK LEVER
174.	[1]	154620-2520	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154396-2320	CONTROL LEVER
191.	[1]	154382-3720	CONTROL LEVER
192.	[1]	020006-1840	BLEEDER SCREW M6P1L18
195.	[1]	154314-2500	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
207.	[1]	154326-5120	CONTROL LEVER
211.	[0]	029311-0220	SHIM D18&10.3T0.2
211B.	[0]	029311-0230	SHIM D18&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
400.	[1]	154620-8700	CAPSULE
401.	[1]	154620-3100	GASKET
402.	[1]	154620-8800	BEARING PIN
403.	[1]	154620-8901	PLATE
404.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
405.	[1]	154620-1500	FLANGE BUSHING
406.	[1]	154620-4700	BLEEDER SCREW
407.	[2]	014110-8440	LOCKING WASHER
407.	[2]	014110-8440	LOCKING WASHER
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
408.	[2]	014010-8140	PLAIN WASHER D18&8.5T1.6
409.	[1]	154620-9000	O-RING

Include in #1:

101609-3430 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105404-5470

F 019 Z9E 663
NP-EP/RSV200-1500AQ45A302

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
