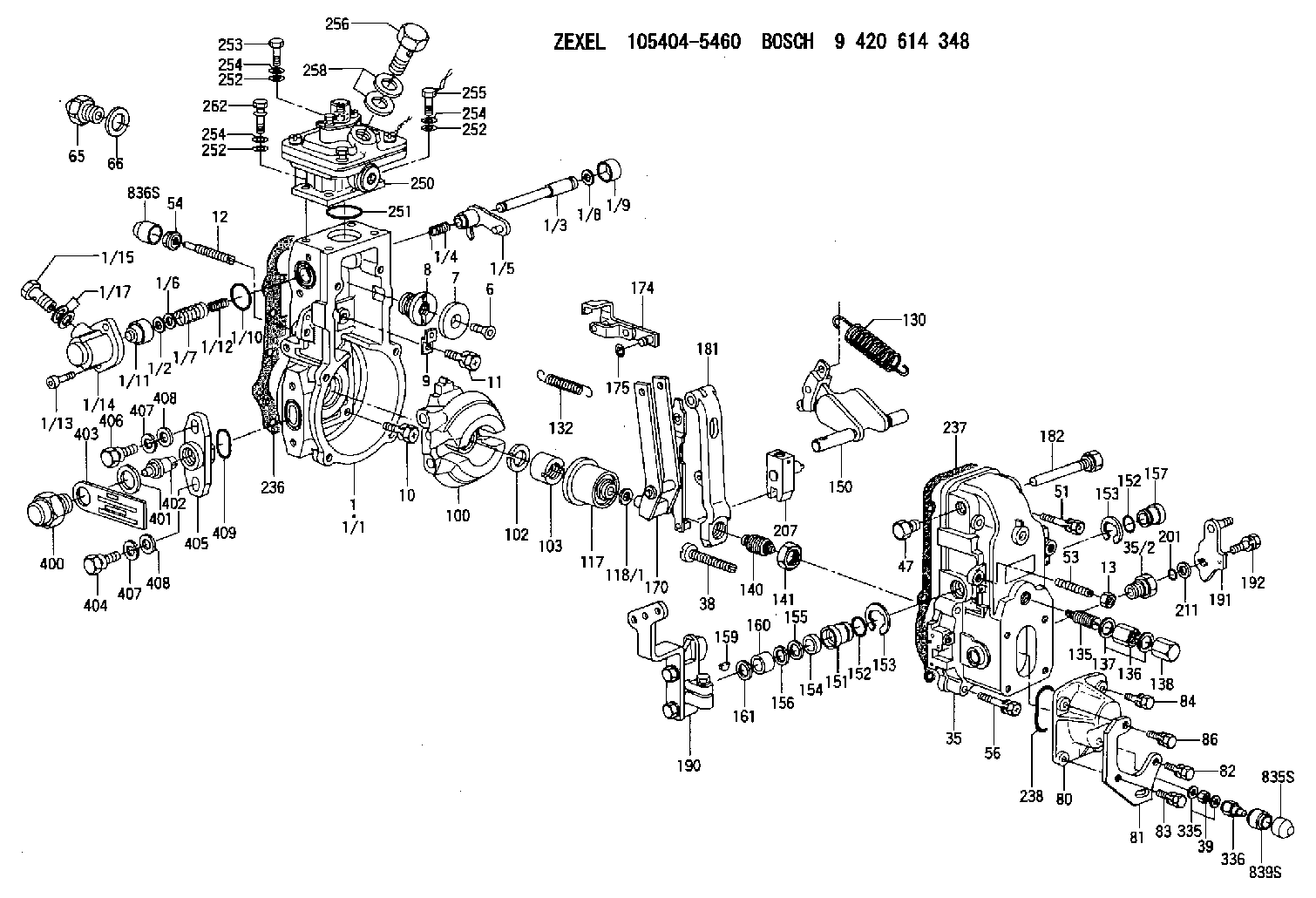

105404-5460 ZEXEL 9 420 614 348 BOSCH GOVERNOR 9420614348 1054045460

Table 1
FAULT IDENTIFIERS (FID)
FID    Signed Byte    Unsigned Byte    Signed Word    Unsigned Word    Signed Long Word    Unsigned Long Word    Fault Description
0 - 1     $80 - $81     $E0 - $E1     $8000 - $8001     $FFE0 - $FFE1     $8000000 - $8000001     $FFFFFFE0 $FFFFFFE1     Not Used
2     $82
$E2     $8002     $FFE2     $8000002     $FFFFFFE2     Data erratic, intermittent or incorrect
3     $83
$E3     $8003     $FFE3     $8000003     $FFFFFFE3     Shorted high or open circuit
4     $84     $E4     $8004     $FFE4     $8000004     $FFFFFFE4     Shorted low
5     $85     $E5     $8005     $FFE5     $8000005     $FFFFFFE5     Open circuit or current below normal
6     $86     $E6     $8006     $FFE6     $8000006     $FFFFFFE6     Current above normal or grounded circuit
7     $87     $E7     $8007     $FFE7     $8000007     $FFFFFFE7     Not Used
8     $88     $E8     $8008     $FFE8     $8000008     $FFFFFFE8     Abnormal frequency, pulse width, or period
9     $89     $E9     $8009     $FFE9     $8000009     $FFFFFFE9     Abnormal update
10     $8A     $EA     $800A     $FFEA     $800000A     $FFFFFFEA     Not used
11     $8B     $EB     $800B     $FFEB     $800000B     $FFFFFFEB     Failure mode not identified
12     $8C     $EC     $800C     $FFEC     $800000C     $FFFFFFEC     Bad device or component
13 - 15     $8D - $8F     $ED - $EF     $800D- $800F     $FFED - $FFEF     $800000D - $800000F     $FFFFFFED - $FFFFFFEF     Not used
16     $90     $F0     $8010     $FFF0     $8000010     $FFFFFFF0     Parameter not available
17     $91     $F1     $8011     $FFF1     $8000011     $FFFFFFF1     Module not responding
18     $92     $F2     $8012     $FFF2     $800012     $FFFFFFF2     Sensor supply fault
19 - 31     $93 - $9F     $F3 - $FF     $8013 - $801F     $FFF3 - $FFFF     $8000013 $800001F     $FFFFFFF3 - $FFFFFFFF     Not used
