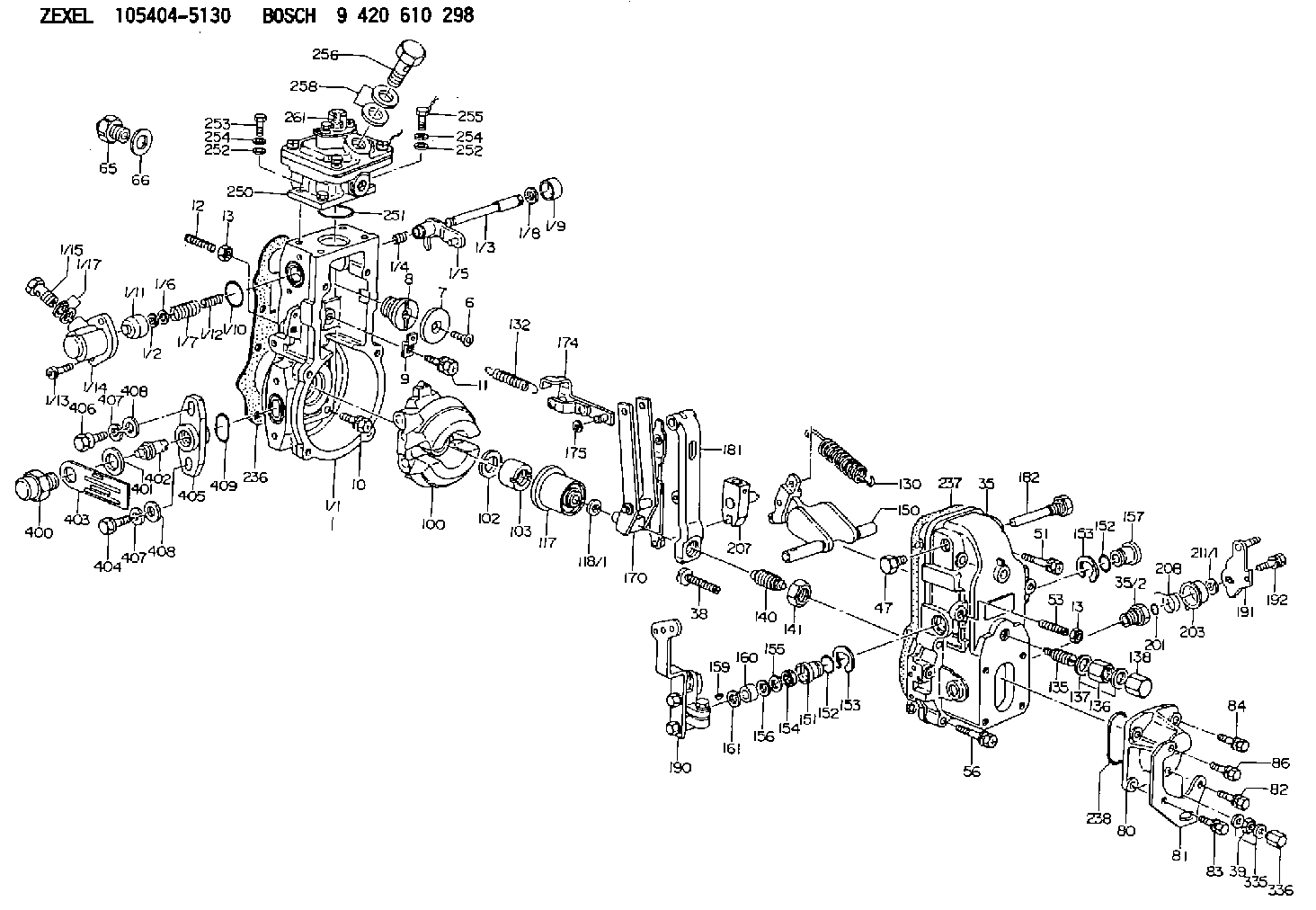

105404-5130 ZEXEL 9 420 610 298 BOSCH GOVERNOR 9420610298 1054045130

Table 1
Conversion Table
Current    Hertz    RPM
4.0     0     0
4.5     159     38
5.0     319     75
5.5     478     113
6.0     638     150
6.5     797     188
7.0     956     225
7.5     1116     263
8.0     1275     300
8.5     1434     338
9.0     1594     375
9.5     1753     413
10.0     1913     450
10.5     2072     488
11.0     2231     525
11.5     2391     563
12.0     2550     600
12.5     2709     638
13.0     2869     675
13.5     3028     713
14.0     3188     750
14.5     3347     788
15.0     3506     825
15.5     3666     863
16.0     3825     900
16.5     3984     938
17.0     4144     975
17.5     4303     1013
18.0     4463     1050
18.5     4622     1088
19.0     4781     1125
19.5     4941     1163
20.0     5100     1200
Illustration 5 g00562935
Calibrate the transmitter.
Disconnect the wiring from the transmitter.
Ensure that the resistor is located on the input side of the transmitter. The resistor should be across the positive terminal and the negative terminal.
Connect an ammeter and a signal generator as you are shown in illustration 5.
Ensure that the signal generator is not generating a signal (zero Hertz).
Adjust the zero dial until the ammeter reads 4 mA.
Adjust the signal generator in order to produce an output of 5100 HZ.
Adjust the span dial until the ammeter reads 20 mA.
Adjust the signal generator in order to produce an output of zero hertz. Verify that the ammeter reads 4 mA.
The ammeter reads 4 mA. STOP.
The ammeter does not read 4 mA. Proceed to 3.
Readjust the frequency input.
Adjust the signal generator in order to produce zero Hertz.
Adjust the zero dial until the ammeter reads 4 mA.
Adjust the signal generator in order to produce an output of 5100 HZ.
Adjust the span dial until the ammeter reads 20 mA.
Adjust the signal generator in order to produce an output of zero hertz. Verify that the ammeter reads 4 mA.Note: Repeat the procedure in order to calibrate a frequency transmitter properly. Continue until both the 4 mA and the 20 mA readings are correct.
The ammeter reads 4 mA and 20 mA at the desired input frequency. STOP.
The ammeter does not read 4 mA and 20 mA. Replace the transmitter. Verify that this repair eliminates the problem.Magnetic Pickup Sensor
The magnetic pickup sensor sends the engine speed signal to the engine speed switch and to the transmitter.
Illustration 6 g00562936
Setting and Adjustment
Adjust the sensor's clearance from the flywheel.
The engine is secured. Install the sensor until the sensor contacts the flywheel.
Back off the sensor (1.2 0.1 turns).
Measure clearance between the flywheel and the
