105402-2860 ZEXEL 9 420 614 904 BOSCH GOVERNOR 9420614904 1054022860 me217236

Information governor

BOSCH 9 420 614 904 9420614904

ZEXEL 105402-2860 1054022860

MITSUBISHI ME217236 me217236

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105402-2860 zexel genuine, new aftermarket engine parts with delivery

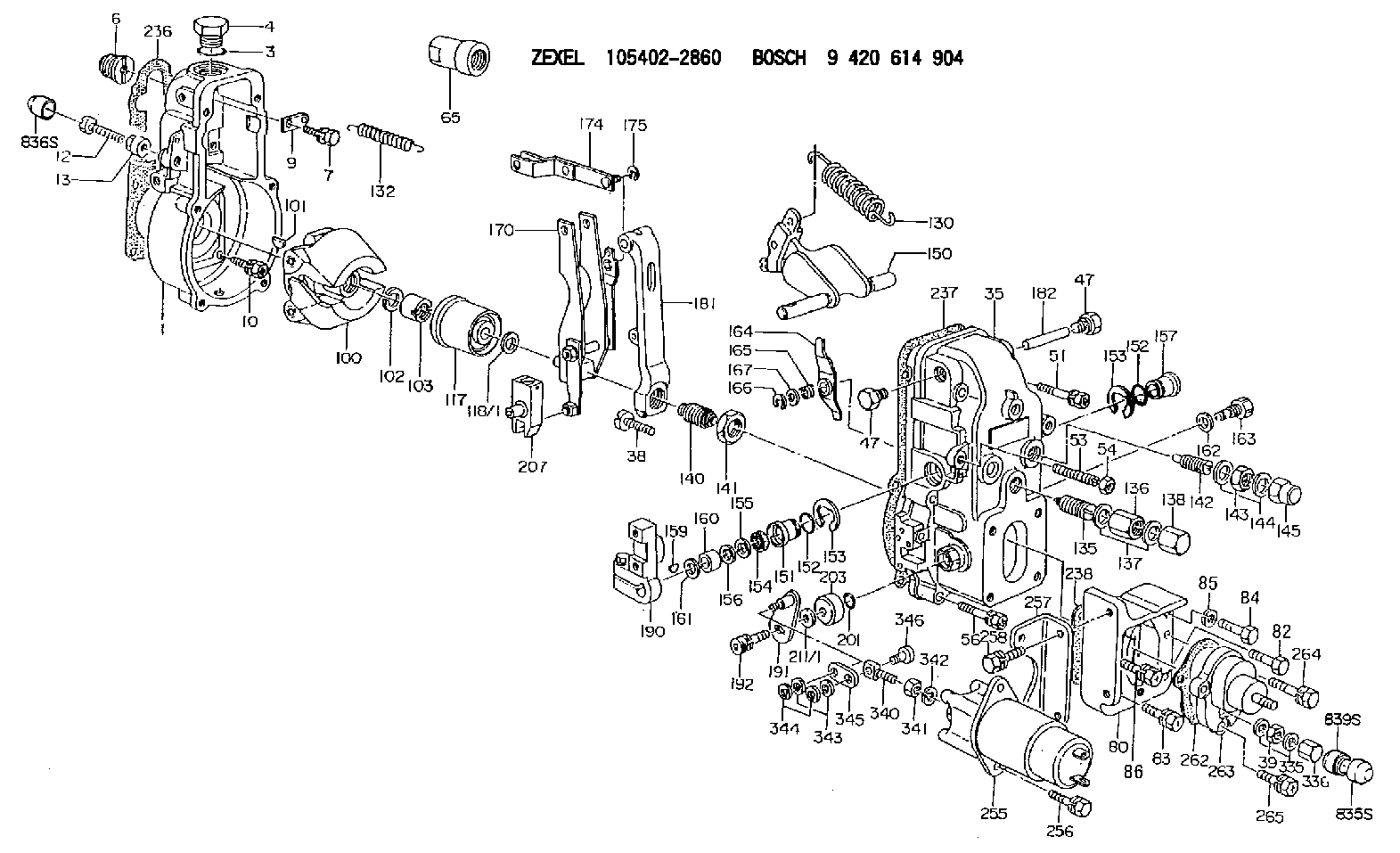

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154013-5000	FLAT-HEAD SCREW
12B.	[1]	154013-4500	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154026-0620	GOVERNOR COVER
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	029240-6010	UNION NUT M6P1.0H5*
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154064-3300	COVER
82.	[1]	139006-1200	BLEEDER SCREW
83.	[1]	020106-3040	BLEEDER SCREW
84.	[1]	139006-1200	BLEEDER SCREW
85.	[2]	014110-6440	LOCKING WASHER
86.	[1]	020106-3040	BLEEDER SCREW
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0820	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-0820	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0320	CONTROL LEVER
165.	[1]	154327-2000	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-3720	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3520	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0020	CONTROL LEVER
191.	[1]	154382-2720	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-8920	LEVER GROUP
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154375-4800	GASKET
255.	[1]	154375-5500	SOLENOID
256.	[2]	020106-1240	BLEEDER SCREW M6P1.0L12
257.	[1]	154375-5000	BRACKET
258.	[2]	020118-1640	BLEEDER SCREW
262.	[1]	154375-5100	GASKET
263.	[1]	154064-4720	COVER
264.	[2]	020006-2240	BLEEDER SCREW M6P1L22
265.	[1]	020106-1840	BLEEDER SCREW M6P1L18
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-2800	CAP NUT
340.	[1]	154375-5200	RACK
341.	[1]	013030-6040	UNION NUT M6P1H3.6
342.	[1]	014110-6440	LOCKING WASHER
343.	[2]	014010-6140	PLAIN WASHER D13&6.5T1
344.	[2]	016010-0640	LOCKING WASHER
345.	[1]	154375-5700	STRAP
346.	[1]	154375-5600	BEARING PIN
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
839S.	[1]	154062-4800	ADAPTOR

Include in #1:

101401-1860 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105402-2860

9 420 614 904
NP-EP/RSV200-1450AQ43A312

ME217236 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
