105402-2720 ZEXEL 9 420 610 405 BOSCH GOVERNOR 9420610405 1054022720 me742616

Information governor

BOSCH 9 420 610 405 9420610405

ZEXEL 105402-2720 1054022720

MITSUBISHI ME742616 me742616

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105402-2720 zexel genuine, new aftermarket engine parts with delivery

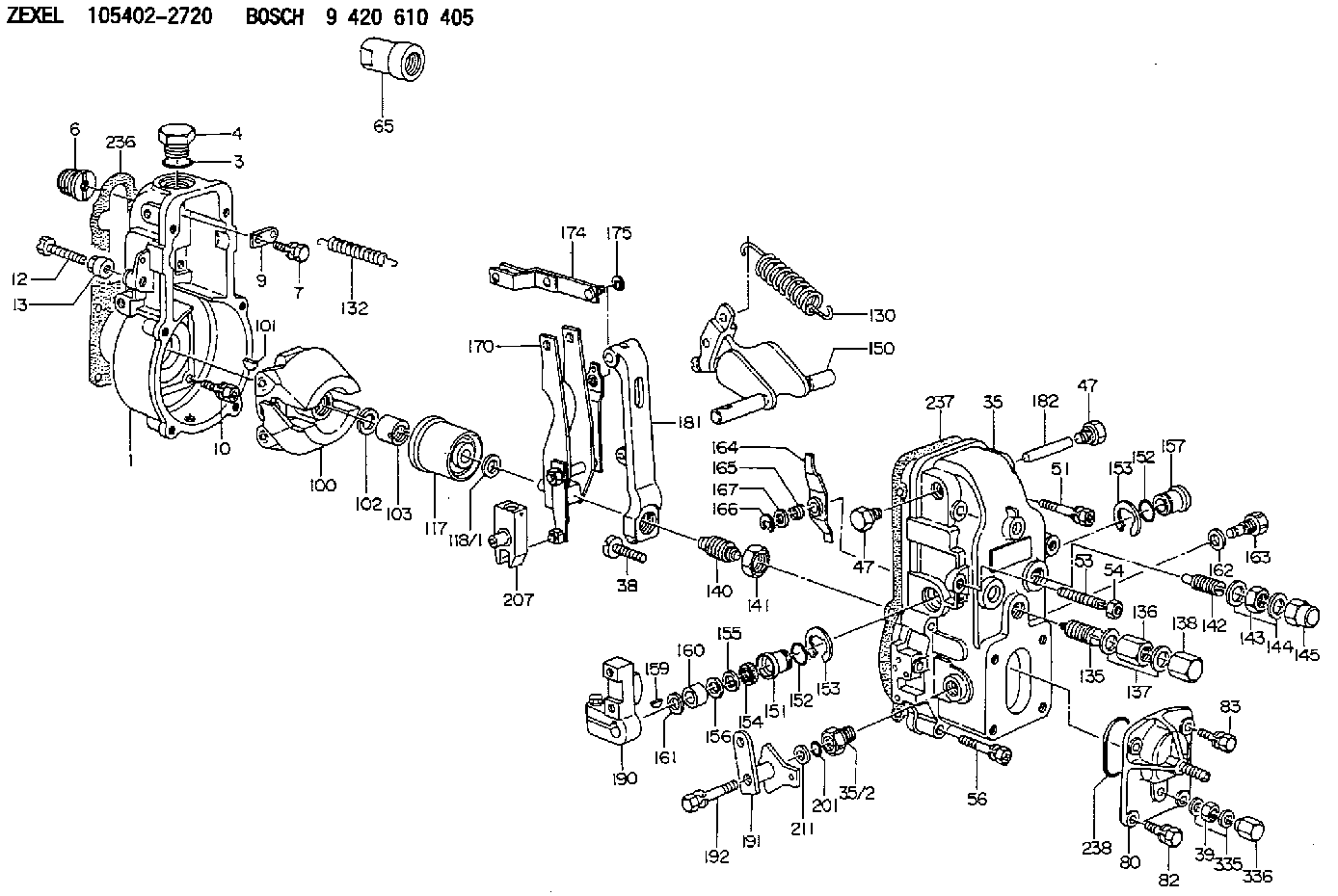

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-8100	BLEEDER SCREW M8P1.25L65
12B.	[1]	154010-8900	BLEEDER SCREW M8P1.25L67.5
13.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154500-1220	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-2300	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154063-5420	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-0820	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0320	CONTROL LEVER
165.	[1]	154327-2000	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-3720	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3320	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0020	CONTROL LEVER
191.	[1]	154382-7520	CONTROL LEVER
192.	[1]	020006-4540	BLEEDER SCREW M6P1L45
201.	[1]	029631-0030	O-RING &9.8W2.3
207.	[1]	154326-5720	CONTROL LEVER
211.	[0]	029311-0220	SHIM D18&10.3T0.2
211B.	[0]	029311-0230	SHIM D18&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101401-1711 as GOVERNOR

101401-1712

101401-1713

Cross reference number

Zexel num

Bosch num

Firm num

Name

105402-2720

9 420 610 405

ME742616 MITSUBISHI

GOVERNOR
* K

Information:

AFFECTED PRODUCT
Model Identification Number
C9 LFE00178-00180, 182, 193-194, 196, 2025, 2372-2375, 2585-2588, 2594-2595, 2710, 2714-2716, 2718-2722, 2725-2727, 2729, 2731-2741, 2743-2747, 2765-2784, 2831, 2833-2836, 2838-2839, 2841-2843, 2847-2852, 2855, 2857-2858, 2862, 2879, 2881-2886, 2888, 2890-2892, 2894-2896, 2898-2907, 2909, 2914, 2916-2918, 2920-2921, 2923-2924, 2926, 2928, 2931, 2934, 2937, 2986, 2988-2993, 2995-3043, 3045-3065, 3101-3106, 3110-3111, 3113, 3116, 3118, 3120, 3122, 3125, 3127-3129, 3132-3133, 3138, 3149-3168, 3204-3242, 3250, 3258-3343, 3345-3386, 3582-3584, 3590-3604, 3681-3730, 3732-3735, 3738-3739, 3741-3742, 3744-3749, 3791, 3793-3794, 3812-3831, 3866-3880, 3882-3897, 3899-3919, 3950-4020, 4026-4083, 4085-4118, 4121-4122, 4124-4151, 4153-4240, 4242, 4253-4278, 4281-4316, 4383-4384, 4387-4390, 4392-4395, 4398-4492, 4495-4497
PARTS NEEDED
Qty
Part Number Description
1 5734235 INJECTOR GP
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 1% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
****Parts Stock ****
Remove all 387-9435 Fuel Injectors from dealer parts stock. Refer to the Parts Disposition.
****Affected Product****
Replace the failed 387-9435 Fuel Injector with a 573-4235 Fuel Injector. Refer to the Disassembly and Assembly, RENR7460, "Unit Injector - Remove", and "Unit Injector - Install", for rework instructions.
SERVICE CLAIM ALLOWANCES
****Parts Stock****
Submit one claim for all parts removed from dealer parts stock.
****Affected Product****
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-6000 hrs,
0-192 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 3.0-hour job
PARTS DISPOSITION
****Parts Stock****
Hold all 387-9435 Fuel Injectors for a Parts Return Request (PRR). A Parts Return Request (PRR) will be issued to you through the Send-It-Back process after the claim is submitted. Make sure to list the service letter program number on the packing slip and include the closed work order paperwork. Handle all other parts in accordance with your Warranty Bulletin on warranty parts handling.
If a Parts Return Request (PRR) is not issued to you after 30 days through the Send-It-Back process, handle the parts in accordance with your warranty bulletin on warranty parts handling.
****Affected Product****
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
