105402-2270 ZEXEL 9 420 611 587 BOSCH GOVERNOR 9420611587 1054022270 me723830

Information governor

BOSCH 9 420 611 587 9420611587

ZEXEL 105402-2270 1054022270

MITSUBISHI ME723830 me723830

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105402-2270 zexel genuine, new aftermarket engine parts with delivery

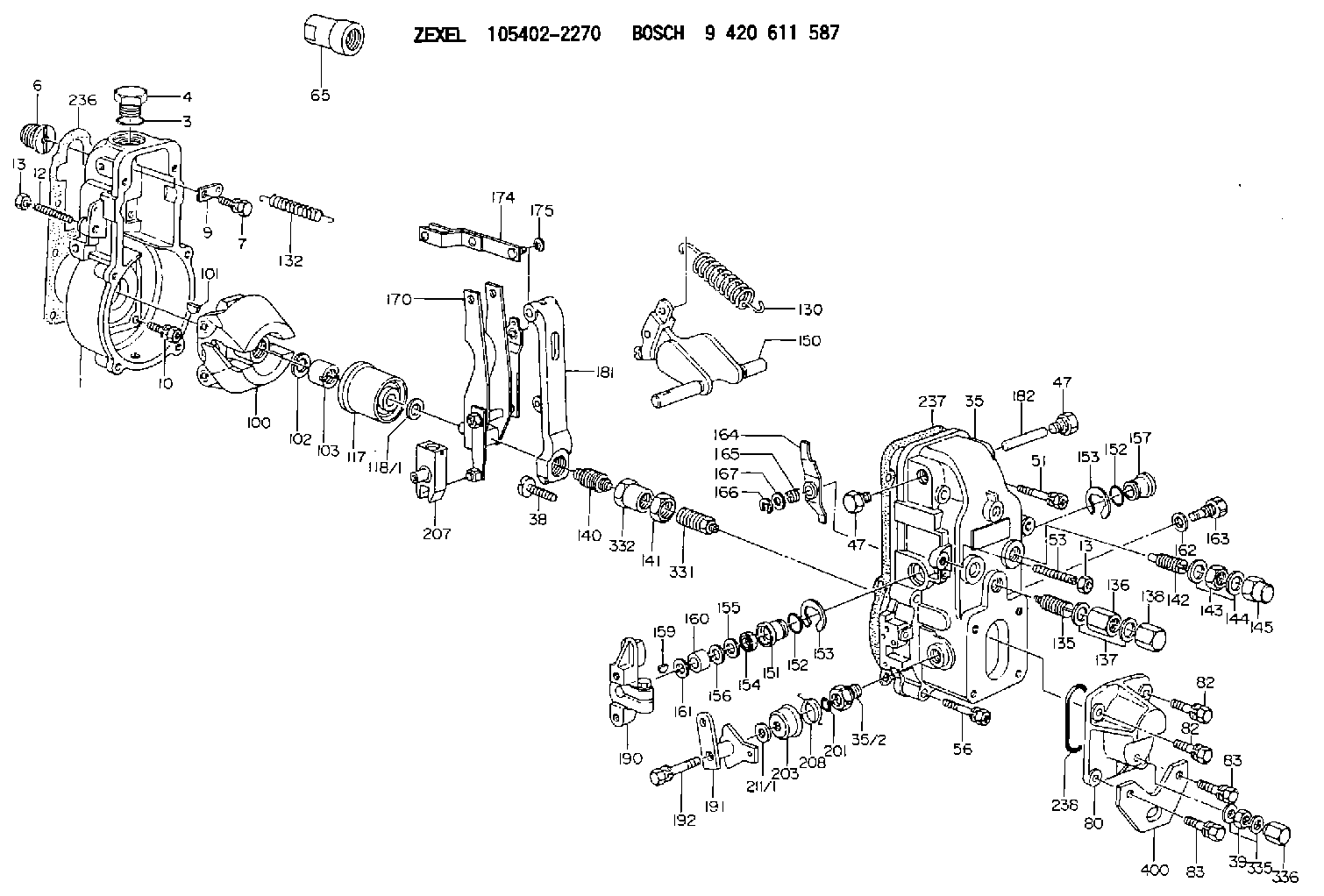

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1220	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154063-5100	COVER
82.	[2]	029020-6260	BLEEDER SCREW
82.	[2]	029020-6260	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1120	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
142.	[1]	154242-1220	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0320	CONTROL LEVER
165.	[1]	154327-2000	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-3720	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3320	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0120	CONTROL LEVER
191.	[1]	154364-8320	CONTROL LEVER
192.	[1]	020006-4540	BLEEDER SCREW M6P1L45
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-8920	LEVER GROUP
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154172-8520	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
400.	[1]	154371-1600	BRACKET

Include in #1:

101691-6020 as GOVERNOR

101691-6070

Cross reference number

Zexel num

Bosch num

Firm num

Name

105402-2270

9 420 611 587
NP-EP/RSV200-1300AQ44A312

ME723830 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

4N8735 Oil Pump (Two Section Gear)
Before operation, the pump must be lubricated with clean engine oil and the pump must turn freely by hand or damage to parts can be the result.
Section A:Rotation (viewed from the drive end) ... counterclockwiseTest on test stand, with SAE 10W oil at 49°C (120°F)Output ... 193 liter/min (51 U.S. gpm)With pump at ... 2550 rpm Section B:Rotation (viewed from the drive end) ... counterclockwiseTest on test stand, with SAE 10W oil at 49°C (120°F)Output ... 272 liter/min (72 U.S. gpm)At a pressure of ... 310 kPa (45 psi)With pump at ... 2550 rpmOutput ... 144 liter/min (38 U.S. gpm) At a pressure of ... 560 kPa (81 psi)With pump at ... 2550 rpm(1) Diameter of drive shaft (new) ... 20.320 0.005 mm (.8000 .0002 in) Bore in bearings for drive shaft (new) ... 20.361 0.008 mm (.8016 .0003 in)(2) Diameter of idler shaft (new) ... 20.320 0.005 mm (.8000 .0002 in) Bore in bearings for drive shaft (new) ... 20.361 0.008 mm (.8016 .0003 in)(3) Length of gears (new) ... 57.158 0.025 mm (2.2503 .0010 in) Depth of bores for gears (new) ... 57.285 0.020 mm (2.2553 .0008 in)(4) Diameter of drive shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(5) Diameter of idler shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(6) Length of gears (new) ... 79.375 0.025 mm (3.1250 .0010 in) Depth of bores for gears (new) ... 79.502 0.020 mm (3.1300 .0008 in)(7) Diameter of drive shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in)(8) Diameter of idler shaft (new) ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for drive shaft (new) ... 22.258 0.008 mm (.8763 .0003 in) (9) 2S2760 Spring (oil pressure relief valve): Length under test force ... 117.9 mm (4.64 in)Test force ... 490 27 N (110 6 lb)Free length after test ... 152.9 mm (6.02 in)Outside diameter ... 27.00 mm (1.063 in)
Pump Body - Section A(10) Install bearings to depth ... 1.52 mm (.060 in)(11) Bearing junction.(12) Position of bearing junction from the centerline through
