105402-2221 ZEXEL F 019 Z1E 284 BOSCH GOVERNOR f019z1e284 1054022221 223202460a




Information governor

BOSCH F 019 Z1E 284 f019z1e284
ZEXEL 105402-2221 1054022221
HINO 223202460A 223202460a
105402-2221 GOVERNOR
Rating:
11
Buy GOVERNOR 105402-2221 zexel genuine, new aftermarket engine parts with delivery

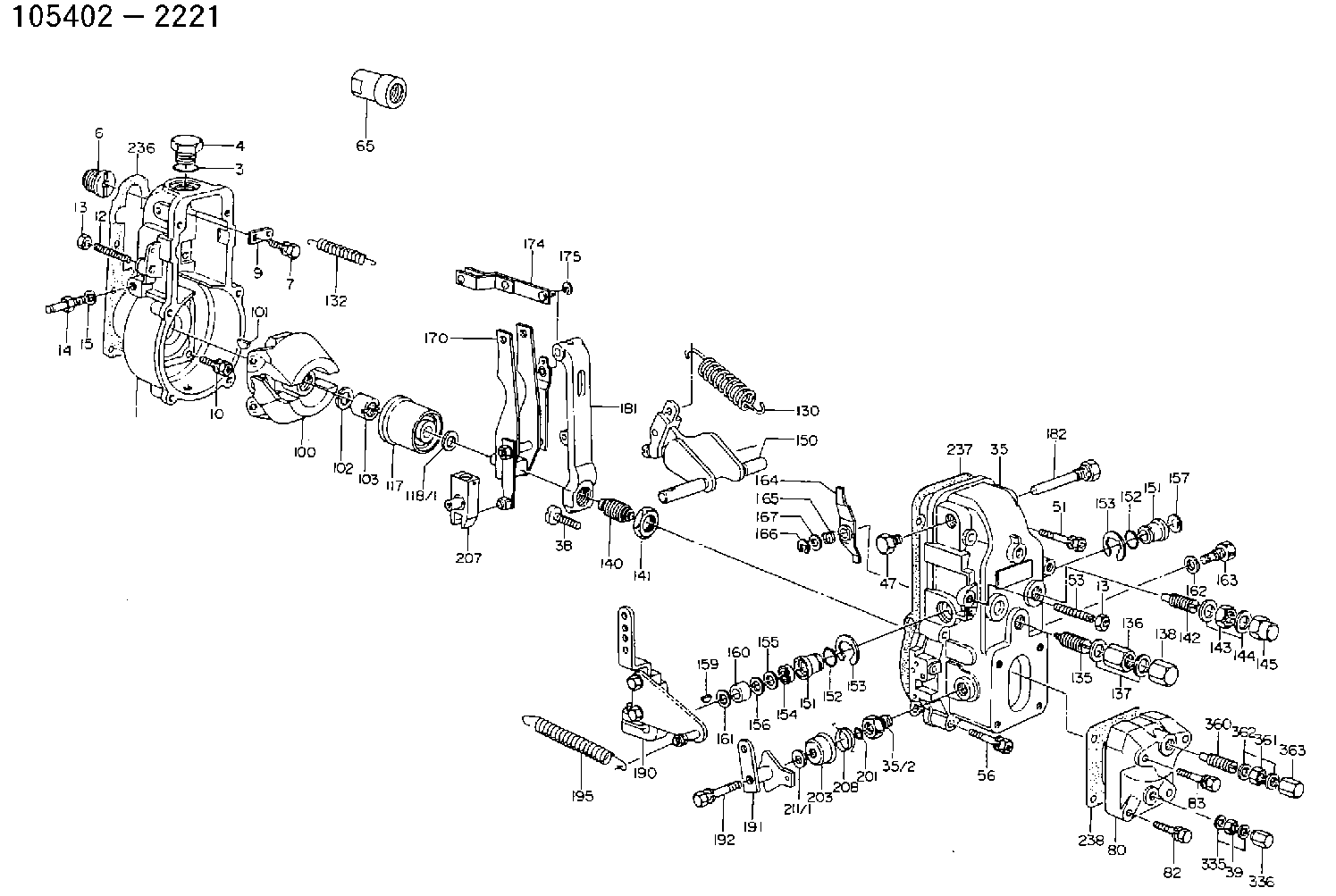

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 154012-2220 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-1720 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-6120 STOPPING DEVICE
80. [1] 154063-1900 COVER
82. [2] 020506-1440 BLEEDER SCREW
83. [2] 020006-3240 BLEEDER SCREW
85. [2] 014110-6440 LOCKING WASHER
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-3920 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
142. [1] 154242-0620 HEADLESS SCREW
143. [1] 029201-6150 UNION NUT
144. [2] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1100 CAP NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
162. [1] 029331-0240 GASKET
163. [1] 154401-2700 BLEEDER SCREW
164. [1] 154243-0320 CONTROL LEVER
165. [1] 154327-2000 COILED SPRING
166. [1] 016010-0710 LOCKING WASHER
167. [1] 029310-8020 PLAIN WASHER D15&8.4T0.3
170. [1] 154217-3720 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-3320 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154343-8720 CONTROL LEVER
191. [1] 154367-6620 CONTROL LEVER
192. [1] 020006-3240 BLEEDER SCREW
195. [1] 154314-2600 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-8920 LEVER GROUP
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-3500 GASKET
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
360. [1] 154158-2320 HEADLESS SCREW
361. [1] 029201-2130 UNION NUT M12P1.0H6
362. [2] 026512-1540 GASKET D15.4&12.2T1.50
363. [1] 154159-1200 CAP NUT

Include in #1:

101602-2331 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105402-2221
F 019 Z1E 284
NP-EP/RSV200-1300AQ44A312
223202460A  HINO
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
