105402-2080 ZEXEL F 019 Z2F 154 BOSCH GOVERNOR f019z2f154 1054022080 me722682

Information governor

BOSCH F 019 Z2F 154 f019z2f154

ZEXEL 105402-2080 1054022080

MITSUBISHI ME722682 me722682

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105402-2080 zexel genuine, new aftermarket engine parts with delivery

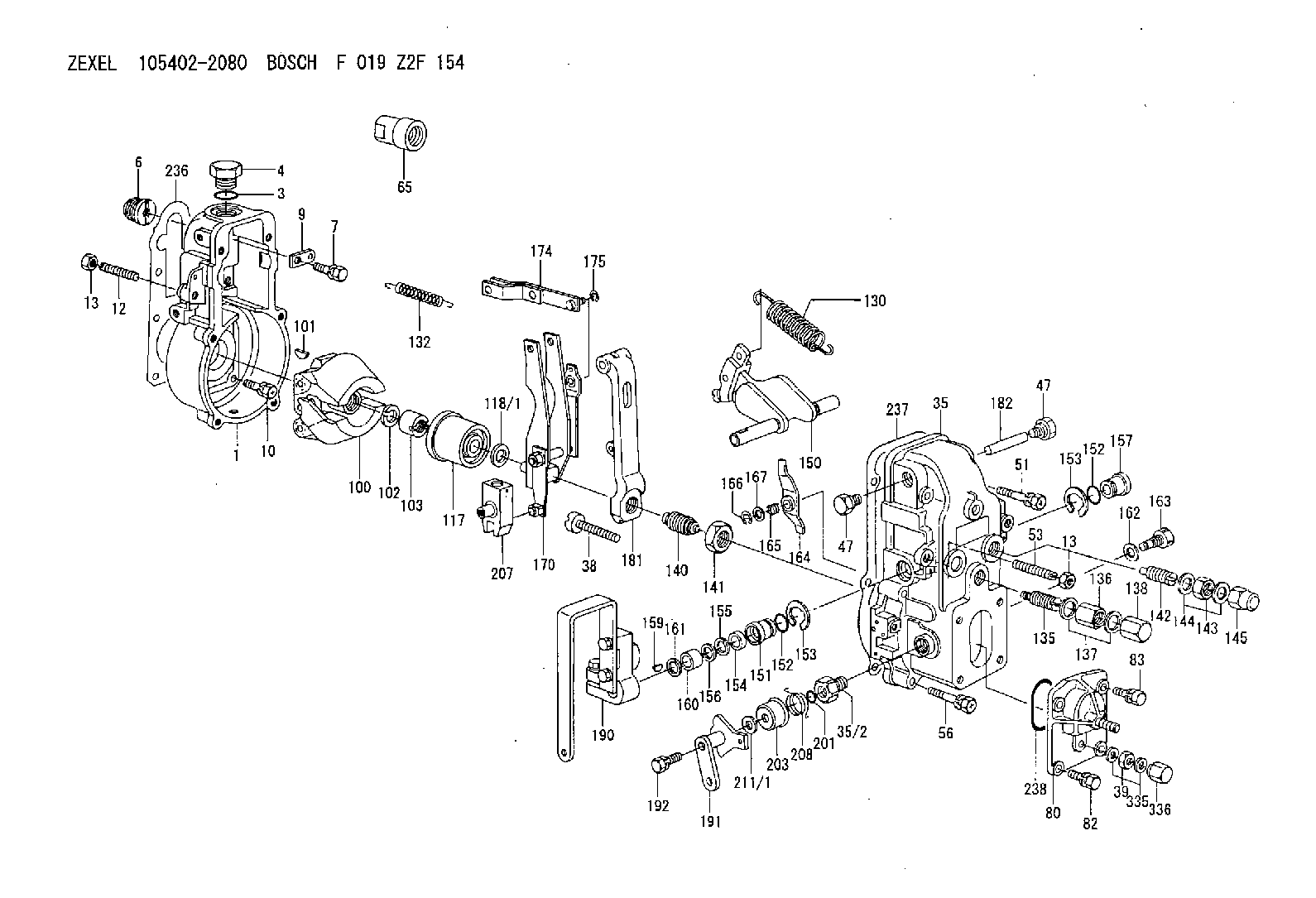

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1220	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154063-5420	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0520	FLYWEIGHT
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-1220	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0320	CONTROL LEVER
165.	[1]	154327-2000	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-3720	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3520	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154347-2920	CONTROL LEVER
191.	[1]	154366-3720	CONTROL LEVER
192.	[1]	020006-3540	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-8920	LEVER GROUP
208.	[1]	154327-7700	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101691-1900 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105402-2080

F 019 Z2F 154

ME722682 MITSUBISHI

GOVERNOR
* K

Information:

(1) 7S7144 Spring for valves (new): Length under test force ... 44.86 mm (1.766 in)Test force ... 257 25 N (57.7 4.5 lb)Free length after test ... 52.07 mm (2.050 in)Outside diameter ... 35.21 mm (1.386 in)103-2454 Spring for valves (new): Length under test force ... 44.93 mm (1.769 in)Test force ... 379 19 N (85.2 4.3 lb)Free length after test ... 54.37 mm (2.141 in)Outside diameter ... 35.56 mm (1.400 in)(2) Height to top of valve guide ... 22.23 0.25 mm (.875 .010 in)(3) Diameter of valve stem (new) ... 9.441 0.008 mm (.3717 .0003 in) Use again minimum diameter ... 9.408 mm (.3704 in)Bore in valve guide with guide installed in the head.Minimum permissible (new) ... 9.456 mm (.3723 in)Maximum permissible (worn) ... 9.581 mm (.3772 in)(4) Valve lip thickness: Exhaust Valve Use again minimum ... 2.69 mm (.106 in)Intake Valve Use again minimum ... 2.69 mm (.106 in)(5) Diameter of valve head: Exhaust valve ... 48.16 0.13 mm (1.896 .005 in)Intake valve ... 51.31 0.13 mm (2.020 .005 in)(6) Angle of valve face ... 29 1/4 1/4 degrees (7) Depth of bore in head for valve seat insert ... 12.28 0.13 mm (.483 .005 in)(8) Diameter of valve seat insert for exhaust valve ... 50.889 0.013 mm (2.0035 .0005 in) Bore in head for valve seat insert for exhaust valve ... 50.813 0.030 mm (2.0005 .0012 in)Diameter of valve seat insert for intake valve ... 52.032 0.013 mm (2.0485 .0005 in)Bore in head for valve seat insert for intake valve ... 51.956 0.030 mm (2.0455 .0012 in)(9) Angle of face of valve seat insert ... 30 1 degrees(10) Maximum permissible width of valve seat (intake and exhaust) ... 1.93 mm (.076 in) Minimum permissible width of valve seat (intake and exhaust) ... 1.14 mm (.045 in)(11) Dimension from top of closed valve to face of head: Minimum permissible dimension for 6N9916 Exhaust Valve ... 0.66 mm (.026 in)Minimum permissible dimension for 2W2620 Intake Valve ... 0.15 mm (.006 in)(12) Outside diameter of the face of the valve seat insert: Exhaust seat ... 46.02 mm (1.812 in)Maximum permissible, exhaust seat ... 47.29 mm (1.862 in)Intake seat ... 49.28 mm (1.940 in)Maximum permissible, intake seat ... 50.55 mm (1.990 in)(13) Angle to grind seat face of the insert to get a reduction of maximum seat diameter ... 15 degrees
