105402-2070 ZEXEL F 019 Z1E 370 BOSCH GOVERNOR f019z1e370 1054022070 me722588

Information governor

BOSCH F 019 Z1E 370 f019z1e370

ZEXEL 105402-2070 1054022070

MITSUBISHI ME722588 me722588

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105402-2070 zexel genuine, new aftermarket engine parts with delivery

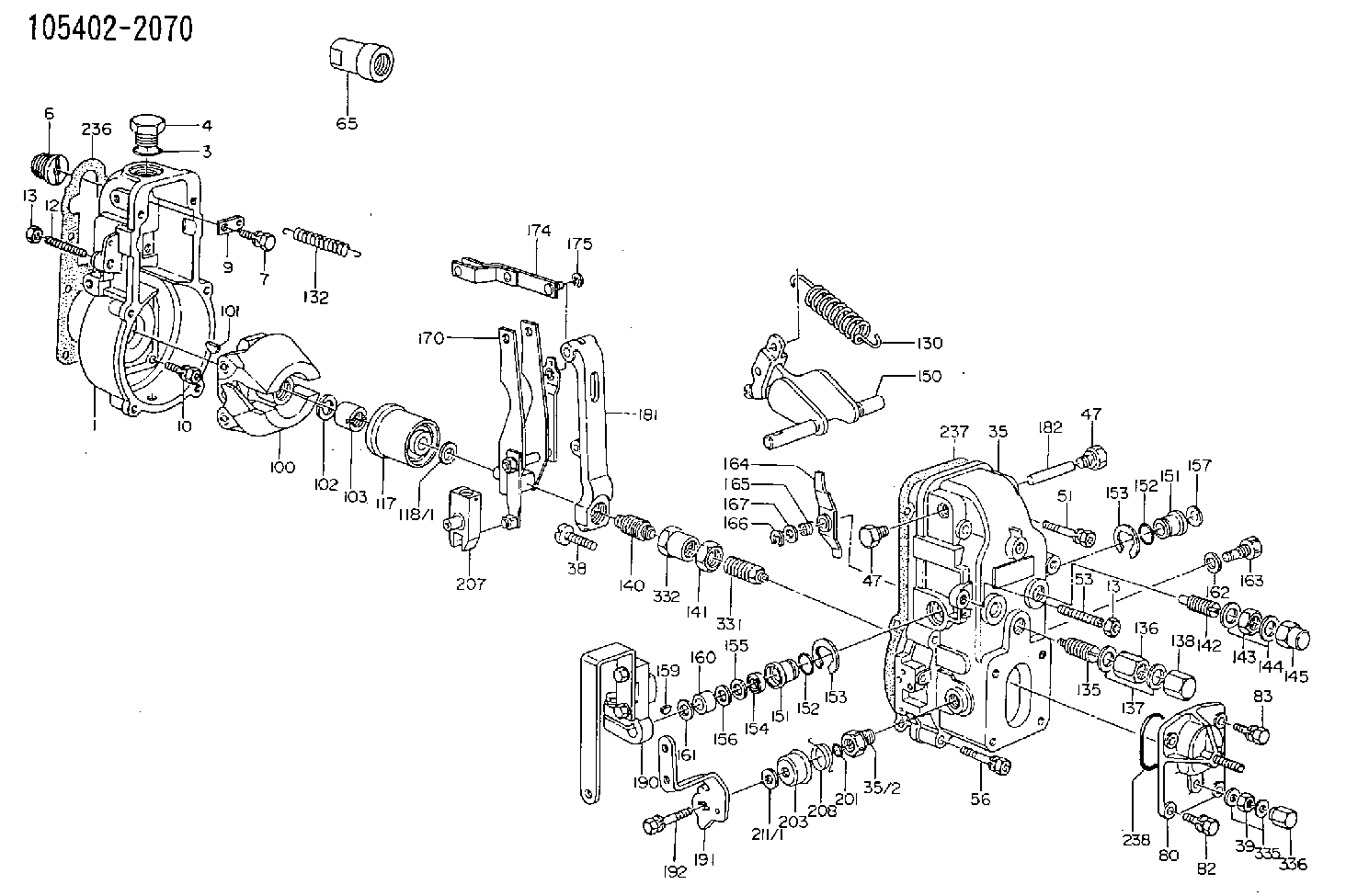

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1220	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154063-5420	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-1220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-1220	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0320	CONTROL LEVER
165.	[1]	154327-2000	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-3720	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3320	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154347-2920	CONTROL LEVER
191.	[1]	154365-6400	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-8920	LEVER GROUP
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101691-6160 as GOVERNOR

101691-6230

101692-1411

Cross reference number

Zexel num

Bosch num

Firm num

Name

105402-2070

F 019 Z1E 370
NP-EP/RSV200-1300AQ44A312

ME722588 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) 2N2878 Spring (governor): Put a force on spring of ... 28.9 N (6.5 lb)Then add more force to make spring shorter by ... 10.69 mm (.421 in)Total test force ... 46.7 0.44 N (10.50 .10 lb)Free length after test ... 59.4 1.0 mm (2.34 .04 in)Outside diameter ... 33.99 0.38 mm (1.338 .015 in)Color code (stripes) ... one brown(2) 2W2216 Spring (broken link): Length under test force ... 26.33 mm (1.033 in)Test force ... 13.34 0.66 N (3.002 .149 lb)Free length after test ... 58.77 mm (2.313 in)Outside diameter ... 11.3 mm (.45 in)Color code (stripes) ... none(3) 4N6410 Spring (dashpot): Length under test force ... 26.16 mm (1.030 in)Test force ... 4.45 0.36 N (1.00 .08 lb)Free length after test ... 31.24 mm (1.230 in)Outside diameter ... 14.8 mm (.58 in)Color code (stripes) ... one pink(4) 3K5733 Spring (centering): Length under test force ... 19.3 mm (.76 in)Test force ... 61 5 N (13.7 1.1 lb)Free length after test ... 31.0 2.0 mm (1.22 .08 in)Outside diameter ... 14.35 mm (.565 in)Color code (stripes) ... none(5) Governor housing assembly.(6) 1W4243 Spring (bumper): Length under test force ... 26.3 mm (1.04 in)Test force ... 0.194 N (.0437 lb)Free length after test ... 32 mm (1.3 in)Outside diameter ... 8.3 mm (.33 in)Color code (stripes) ... one yellow(7) Full load stop block. (8) Distance four dowels extend above the surface of governor housing (5) ... 6.0 0.5 mm (.24 .02 in)(9) Distance two dowels extend above the surface of the governor housing ... 3.0 0.5 mm (.12 .02 in) (10) Distance from the surface of block (7) to the end of the dowel ... 62.00 0.75 mm (2.44 .03 in) (11) Tighten the plug to a torque of ... 11 2 N m (8.1 1.5 lb ft)(12) Tighten the body to a torque of ... 6.25 1.35 N m (4.6 1.0 lb ft)(13) Tighten the insulator to a torque of ... 3.4 0.5 N m (31 4 lb in)(14) Tighten bolts to a torque of ... 3.5 0.4 N m (2.57 4 lb in)
