105402-1880 ZEXEL F 019 Z4E 246 BOSCH GOVERNOR f019z4e246 1054021880 223001730a




Information governor

BOSCH F 019 Z4E 246 f019z4e246
ZEXEL 105402-1880 1054021880
HINO 223001730A 223001730a
105402-1880 GOVERNOR
Rating:
51
Buy GOVERNOR 105402-1880 zexel genuine, new aftermarket engine parts with delivery

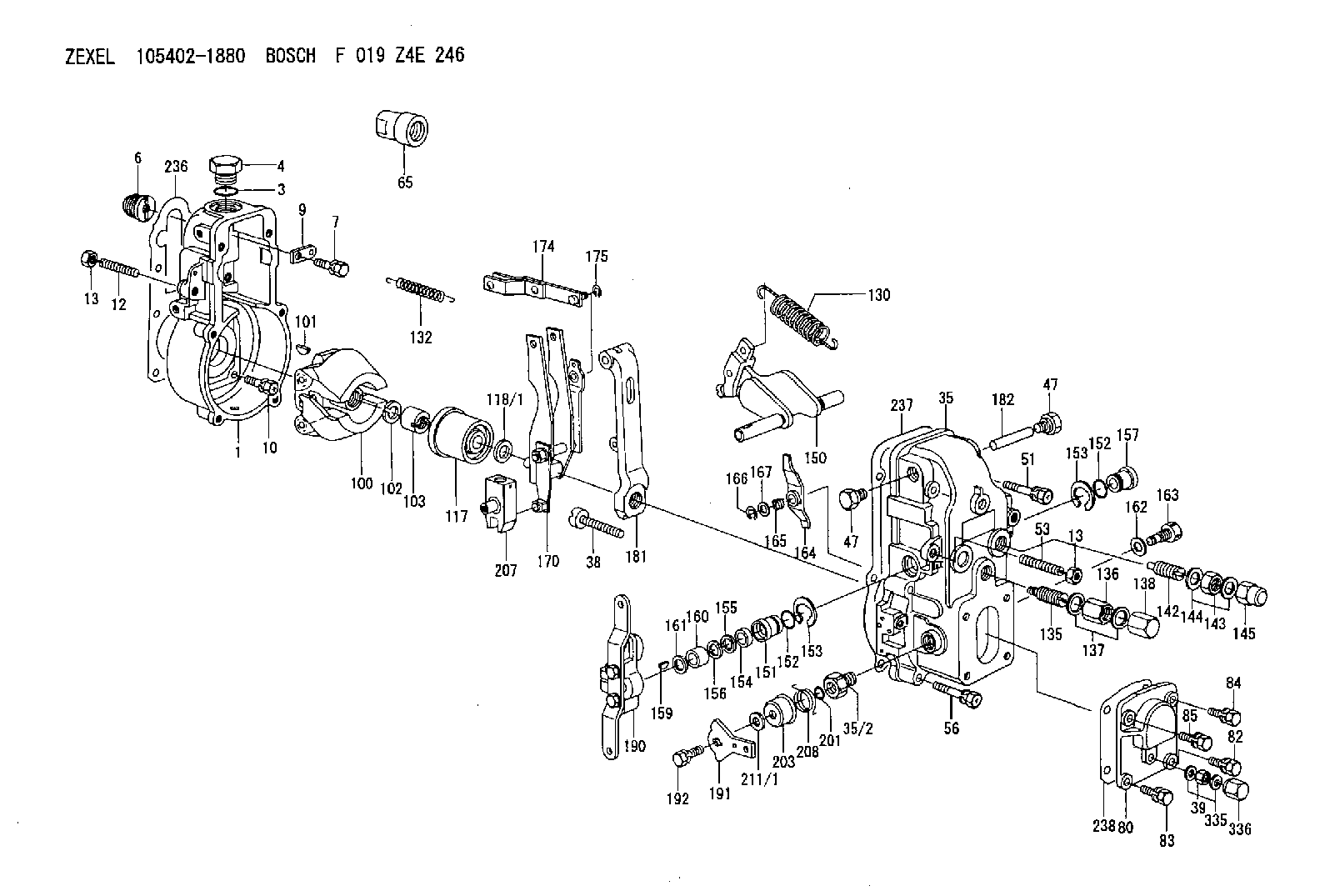

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1220 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-0200 CAP
80. [1] 154063-1400 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
85. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-3220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154157-0320 HEADLESS SCREW
136. [1] 029201-2030 UNION NUT M12P1.0H4
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-0100 CAP NUT
142. [1] 154242-0120 HEADLESS SCREW
143. [1] 029201-6150 UNION NUT
144. [2] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1100 CAP NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
162. [1] 029331-0240 GASKET
163. [1] 154401-2700 BLEEDER SCREW
164. [1] 154243-0320 CONTROL LEVER
165. [1] 154327-2000 COILED SPRING
166. [1] 016010-0710 LOCKING WASHER
167. [1] 029310-8020 PLAIN WASHER D15&8.4T0.3
170. [1] 154211-0020 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-3320 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154303-3220 CONTROL LEVER
191. [1] 154307-1000 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-8920 LEVER GROUP
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-3600 GASKET
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT

Include in #1:

101692-2672 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105402-1880
F 019 Z4E 246
NP-EP/RSV200-1450AQ2A302NP195D
223001730A  HINO
GOVERNOR
* K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

1. Loosen bolt (1).2. Loosen bolt (3).3. Push alternator (2) toward the engine to loosen the tension on the two alternator V-belts.4. Remove two alternator V-belts (4) from the alternator drive pulley and fan drive (6).5. Fasten a lifting strap and a hoist to fan drive (6). Remove four bolts (5) and the washers that hold the fan drive to the cylinder head assembly. Remove the fan drive. The weight of the fan drive is approximately 11 kg (25 lb). The following steps are for the installation of the fan drive.6. Be sure the mating surface on the cylinder head assembly and the mating surface on the fan drive support are thoroughly clean.7. Install the fan drive in the reverse order of removal.8. Adjust the tension of the alternator V-belts. See the topic "Alternator And Fan Drive Belts, Inspect/Adjust/Replace" in the 3114 & 3116 ATAAC Diesel Truck Engine Operation & Maintenance Manual, Form No. SEBU6723. Also, refer to the "Belt Tension Chart" in the 3114 & 3116 Diesel Truck Engines Specifications module, Form No. SENR6436.End By:a. install fan drive clutch assemblyDisassemble & Assemble Fan Drive
Start By:a. remove fan drive 1. Remove three bolts (6) and the washers. Access to bolts (6) can be made by rotating the fan pulley.2. Remove fan pulley assembly (2) from fan support (1).3. Remove two bolts (4) and thrust plate (5).4. Remove roller bearing assembly (8) and the bearing retainer from the fan pulley. Remove O-ring seal (7) from the bearing retainer. The following steps are for the assembly of the fan drive group.5. Be sure all parts of the fan drive group are thoroughly clean prior to assembly.6. Check the condition of O-ring seal (7) used in the bearing retainer. Also, check the condition of roller bearing assembly (8). If the components are damaged, use new parts for replacement.7. Install roller bearing assembly (8) in the bearing retainer. Be sure the lip seal in the roller bearing assembly is facing toward the bearing retainer.8. Install O-ring seal (7) in the bearing retainer. Put the bearing retainer and roller bearing assembly, as a unit, in position on pulley (2). Be sure the inner race of the roller bearing assembly in seated against the shoulder on the pulley.9. Install thrust plate (5) and two bolts (4).10. Put pulley assembly (2) in position in fan support (1). Install the three washers and bolts (6) that hold the unit together. Access to the mounting bolt holes can be made by rotating the fan pulley.11. Fill the bearing cavity in the fan drive with 30 g (1 oz) of 2S3230 Bearing Lubricant.End By:a. install fan drive

Have questions with 105402-1880?





Group cross 105402-1880 ZEXEL

Hino

105402-1820

223001330A

Mitsubishi

105402-1851
F 019 Z1E 366
NP-EP/RSV200-1300A1A302NP179
ME048340
GOVERNOR

Hino

105402-1860
F 019 Z1E 283
NP-EP/RSV200-1100A7A302NP182D
223201230A
GOVERNOR
105402-1870

223001670A
GOVERNOR
105402-1880
F 019 Z4E 246
NP-EP/RSV200-1450AQ2A302NP195D
223001730A
GOVERNOR
105402-1890
F 019 Z1E 747

GOVERNOR
