105402-1260 ZEXEL 9 420 610 097 BOSCH GOVERNOR 9420610097 1054021260




Information governor

BOSCH 9 420 610 097 9420610097
ZEXEL 105402-1260 1054021260
105402-1260 GOVERNOR
Rating:
27
Buy GOVERNOR 105402-1260 zexel genuine, new aftermarket engine parts with delivery

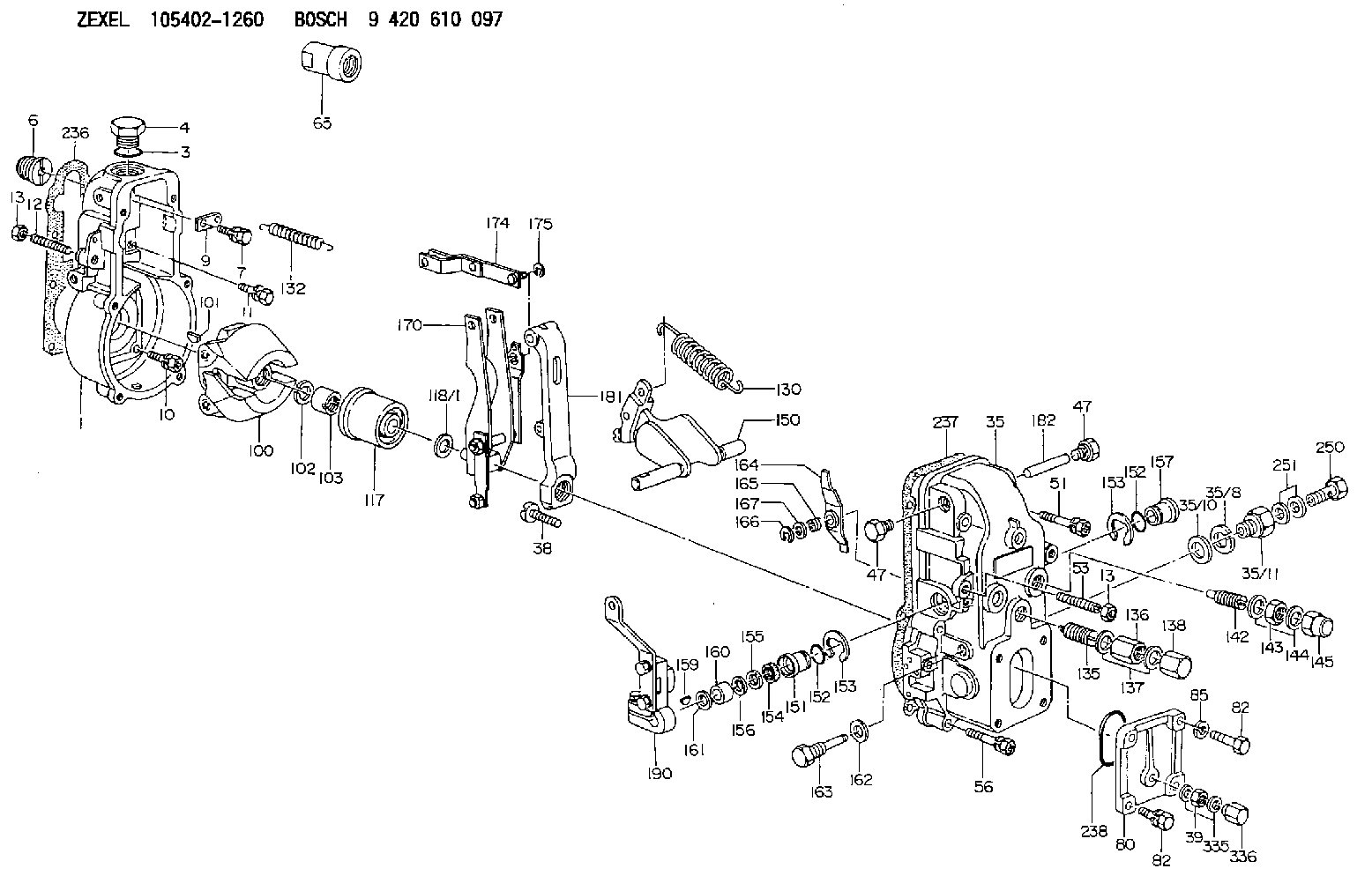

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-0520 GOVERNOR COVER
35/8. [1] 014110-3440 LOCKING WASHER
35/10. [1] 026516-2040 GASKET D19.9&16.2T1
35/11. [1] 154316-4500 ADAPTOR
38. [1] 154031-2200 FLAT-HEAD SCREW
39. [1] 013020-6040 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-3700 CAP
80. [1] 154060-8800 COVER
82. [2] 020506-1440 BLEEDER SCREW
82. [2] 020506-1440 BLEEDER SCREW
83. [2] 020006-1440 BLEEDER SCREW M6P1L14
85. [2] 014110-6440 LOCKING WASHER
100. [1] 154100-7020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0100 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154157-1620 HEADLESS SCREW
136. [1] 029201-2130 UNION NUT M12P1.0H6
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-0100 CAP NUT
140. [1] 154175-6220 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
142. [1] 154242-0320 HEADLESS SCREW
143. [1] 029201-6150 UNION NUT
144. [2] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1100 CAP NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
162. [1] 029331-0240 GASKET
163. [1] 154401-2700 BLEEDER SCREW
164. [1] 154243-0220 CONTROL LEVER
165. [1] 154327-1900 COILED SPRING
166. [1] 016010-0740 LOCKING WASHER
167. [1] 029310-8020 PLAIN WASHER D15&8.4T0.3
170. [1] 154211-4320 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-3220 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154309-4420 CONTROL LEVER
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-5010 O-RING
250. [1] 029731-2040 EYE BOLT
251. [2] 029341-2140 GASKET
335. [1] 029331-1010 GASKET
336. [1] 154035-0500 CAP NUT

Include in #1:

101491-3160 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105402-1260
9 420 610 097
NP-EP/RSV200-1300A1A22NP10D

GOVERNOR
* K




Information:


Piston Group.
When handling the piston assembly, be aware that the piston pin plug which fits on the end of the piston pin, is only used to prevent the piston pin from scuffing the cylinders. It does not retain the pin in the assembly, once the piston assembly is removed from the cylinder, the pin is free to fall out of the assembly at any time.
(1) Crater. The piston is a symmetrical piston with an "on center" crater. Thoroughly lubricate piston group 360 degrees in zone (A) with

Have questions with 105402-1260?





Group cross 105402-1260 ZEXEL

105402-1220



105402-1260
9 420 610 097
NP-EP/RSV200-1300A1A22NP10D

GOVERNOR
