105401-0970 ZEXEL 9 420 611 655 BOSCH GOVERNOR 9420611655 1054010970 19109z5608

Information governor

BOSCH 9 420 611 655 9420611655

ZEXEL 105401-0970 1054010970

NISSAN-DIESEL 19109Z5608 19109z5608

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105401-0970 zexel genuine, new aftermarket engine parts with delivery

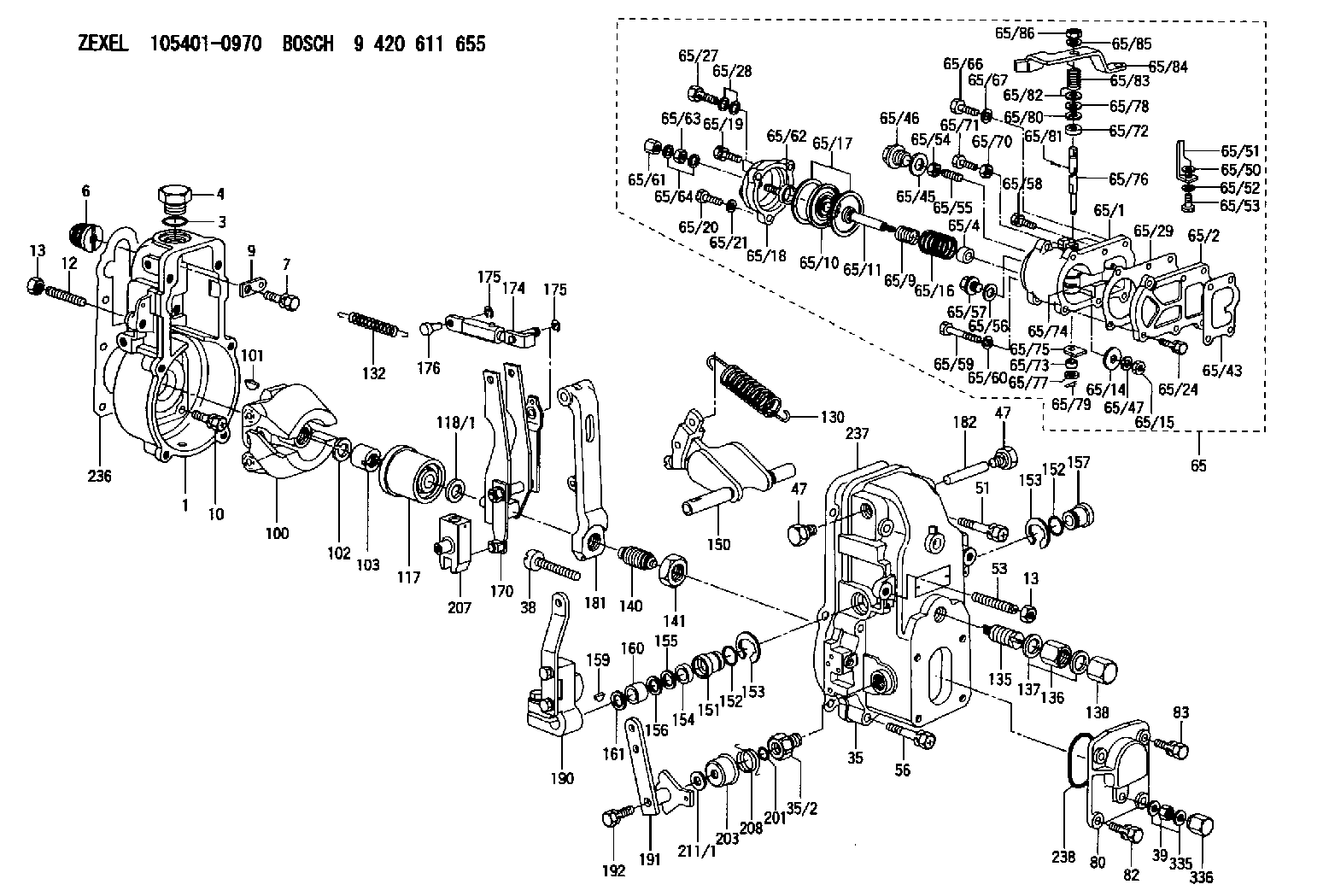

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154421-3221	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-6821	DIAPHRAGM HOUSING
65/1.	[1]	154412-6821	DIAPHRAGM HOUSING
65/2.	[1]	154412-0401	SPACER BUSHING
65/2.	[1]	154412-0401	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154403-8600	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154400-8400	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-9900	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/19.	[1]	020106-2040	BLEEDER SCREW M6P1L20
65/20.	[2]	139006-7000	BLEEDER SCREW
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-3700	GASKET
65/43.	[1]	154390-3400	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6200	SPACER BUSHING
65/51.	[1]	154406-8900	PLATE
65/52.	[1]	014110-6440	LOCKING WASHER
65/53.	[1]	154406-6400	BLEEDER SCREW
65/54.	[1]	013020-6040	UNION NUT M6P1H5
65/55.	[1]	154404-1200	FLAT-HEAD SCREW
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[1]	020106-2240	BLEEDER SCREW
65/59.	[2]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[2]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	023040-6040	UNION NUT
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/66.	[1]	139006-0900	BLEEDER SCREW
65/67.	[1]	014110-6440	LOCKING WASHER
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	153141-1600	BLEEDER SCREW
65/72.	[1]	139608-0000	PACKING RING
65/73.	[1]	139605-0100	PACKING RING
65/74.	[1]	154412-6900	CONTROL LEVER
65/75.	[1]	154406-7500	CONTROL LEVER
65/76.	[1]	154412-7000	LEVER SHAFT
65/77.	[1]	029310-5200	SHIM
65/78.	[1]	014020-8120	PLAIN WASHER D16&8.5T1.2
65/79.	[1]	154372-6500	SAFETY PIN
65/80.	[0]	029310-8040	SHIM D13.5&8T0.2
65/80B.	[0]	029310-8050	SHIM D13.5&8T0.5
65/81.	[1]	025520-1210	SPLIT PIN
65/82.	[2]	029300-8320	SHIM
65/83.	[1]	154403-9900	COILED SPRING
65/84.	[1]	154412-7100	CONTROL LEVER
65/85.	[1]	014110-8440	LOCKING WASHER
65/86.	[1]	013020-8140	UNION NUT M8P1.25H6.5
80.	[1]	154063-1400	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-0920	FORK LEVER
174.	[1]	154235-2220	STRAP
175.	[2]	016010-0540	LOCKING WASHER
175.	[2]	016010-0540	LOCKING WASHER
176.	[1]	154222-4300	BEARING PIN
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154303-3120	CONTROL LEVER
191.	[1]	154382-7420	CONTROL LEVER
192.	[1]	020006-4040	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101605-9560 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105401-0970

9 420 611 655
NP-EP/RSV200-1450AQ43A302

19109Z5608 NISSAN-DIESEL

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
