Information governor
BOSCH
9 420 610 824
9420610824
ZEXEL
105401-0930
1054010930
NISSAN-DIESEL
1910195363
1910195363

Rating:
Scheme ###:

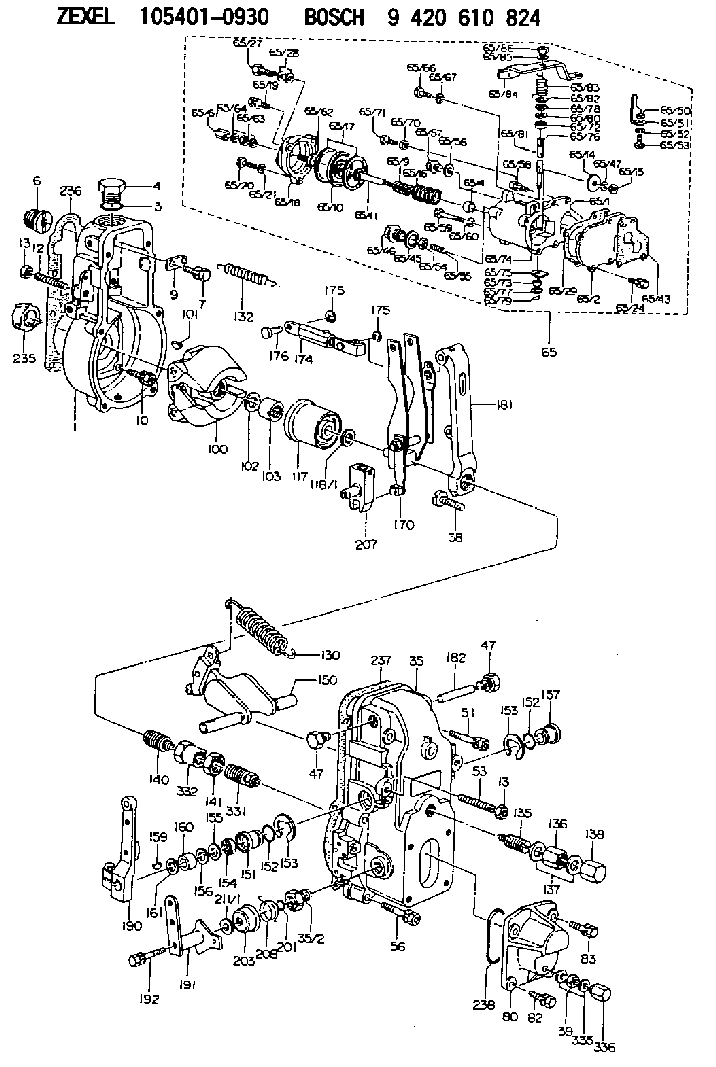

1. | [1] | 154000-6300 | GOVERNOR HOUSING |
3. | [1] | 029632-5070 | O-RING |
4. | [1] | 154007-2900 | CAPSULE |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
9. | [1] | 154350-1900 | PLATE |
10. | [6] | 029010-6810 | BLEEDER SCREW |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154500-1020 | GOVERNOR COVER |
35/2. | [1] | 154321-0400 | BUSHING |
38. | [1] | 154031-3000 | FLAT-HEAD SCREW |
39. | [1] | 139206-0600 | UNION NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-0200 | FLAT-HEAD SCREW |
56. | [4] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154421-7420 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154412-6821 | DIAPHRAGM HOUSING |
65/2. | [1] | 154412-0401 | SPACER BUSHING |
65/4. | [1] | 154413-0500 | BUSHING |
65/9. | [1] | 154402-1900 | COILED SPRING |
65/10. | [1] | 154400-8220 | DIAPHRAGM |
65/11. | [1] | 154400-8400 | STOP PIN |
65/14. | [1] | 154406-5500 | SLOTTED WASHER |
65/15. | [1] | 013020-6040 | UNION NUT M6P1H5 |
65/16. | [1] | 154402-3200 | COILED SPRING |
65/17. | [2] | 154413-2600 | GASKET |
65/18. | [1] | 154404-5000 | COVER |
65/19. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
65/20. | [2] | 139006-7000 | BLEEDER SCREW |
65/21. | [2] | 014110-6440 | LOCKING WASHER |
65/24. | [2] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
65/27. | [1] | 029731-0180 | EYE BOLT |
65/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
65/29. | [1] | 154390-3700 | GASKET |
65/43. | [1] | 154390-3400 | GASKET |
65/45. | [1] | 029331-8040 | GASKET |
65/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
65/47. | [1] | 014110-6440 | LOCKING WASHER |
65/50. | [1] | 154406-6200 | SPACER BUSHING |
65/51. | [1] | 154406-8900 | PLATE |
65/52. | [1] | 014110-6440 | LOCKING WASHER |
65/53. | [1] | 154406-6400 | BLEEDER SCREW |
65/54. | [1] | 013020-6040 | UNION NUT M6P1H5 |
65/55. | [1] | 154404-1200 | FLAT-HEAD SCREW |
65/56. | [1] | 029331-2130 | GASKET |
65/57. | [1] | 154406-6500 | FLAT-HEAD SCREW |
65/58. | [1] | 020106-2240 | BLEEDER SCREW |
65/59. | [2] | 010006-7040 | BLEEDER SCREW M6P1L70 |
65/60. | [2] | 014110-6440 | LOCKING WASHER |
65/61. | [1] | 154035-1600 | CAP NUT |
65/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
65/63. | [1] | 023040-6040 | UNION NUT |
65/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
65/66. | [1] | 139006-0900 | BLEEDER SCREW |
65/67. | [1] | 014110-6440 | LOCKING WASHER |
65/70. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
65/71. | [1] | 153141-1600 | BLEEDER SCREW |
65/72. | [1] | 139608-0500 | PACKING RING |
65/73. | [1] | 139605-0000 | PACKING RING |
65/74. | [1] | 154412-6900 | CONTROL LEVER |
65/75. | [1] | 154406-7500 | CONTROL LEVER |
65/76. | [1] | 154412-7000 | LEVER SHAFT |
65/77. | [1] | 029310-5200 | SHIM |
65/78. | [1] | 014020-8120 | PLAIN WASHER D16&8.5T1.2 |
65/79. | [1] | 154372-6500 | SAFETY PIN |
65/80. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
65/80B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
65/81. | [1] | 025520-1210 | SPLIT PIN |
65/82. | [2] | 029300-8320 | SHIM |
65/83. | [1] | 154403-9900 | COILED SPRING |
65/84. | [1] | 154412-7100 | CONTROL LEVER |
65/85. | [1] | 014110-8440 | LOCKING WASHER |
65/86. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
80. | [1] | 154063-5100 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-9720 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2900 | GOVERNOR SPRING |
132. | [1] | 154154-0500 | COILED SPRING |
135. | [1] | 154158-0820 | HEADLESS SCREW |
136. | [1] | 154011-1700 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154185-1320 | HEADLESS SCREW |
141. | [1] | 029201-6080 | UNION NUT |
150. | [1] | 154200-7020 | SWIVELLING LEVER |
151. | [1] | 154204-3000 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-3100 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154210-0920 | FORK LEVER |
174. | [1] | 154230-4320 | STRAP |
175. | [2] | 016010-0540 | LOCKING WASHER |
175. | [2] | 016010-0540 | LOCKING WASHER |
176. | [1] | 154222-4300 | BEARING PIN |
181. | [1] | 154236-4100 | TENSIONING LEVER |
182. | [1] | 154237-0100 | BEARING PIN |
190. | [1] | 154309-6120 | CONTROL LEVER |
191. | [1] | 154365-9321 | CONTROL LEVER |
192. | [1] | 020006-4540 | BLEEDER SCREW M6P1L45 |
201. | [1] | 029631-0030 | O-RING &9.8W2.3 |
203. | [1] | 154322-0100 | CAP |
207. | [1] | 154326-5020 | CONTROL LEVER |
208. | [1] | 154327-7600 | COILED SPRING |
211/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
211/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
211/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
211/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
211/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
211/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
331. | [1] | 154179-5520 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
336. | [1] | 154035-1600 | CAP NUT |
