105400-8600 ZEXEL 9 420 611 095 BOSCH GOVERNOR 9420611095 1054008600 8972056670

Information governor

BOSCH 9 420 611 095 9420611095

ZEXEL 105400-8600 1054008600

ISUZU 8972056670 8972056670

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105400-8600 zexel genuine, new aftermarket engine parts with delivery

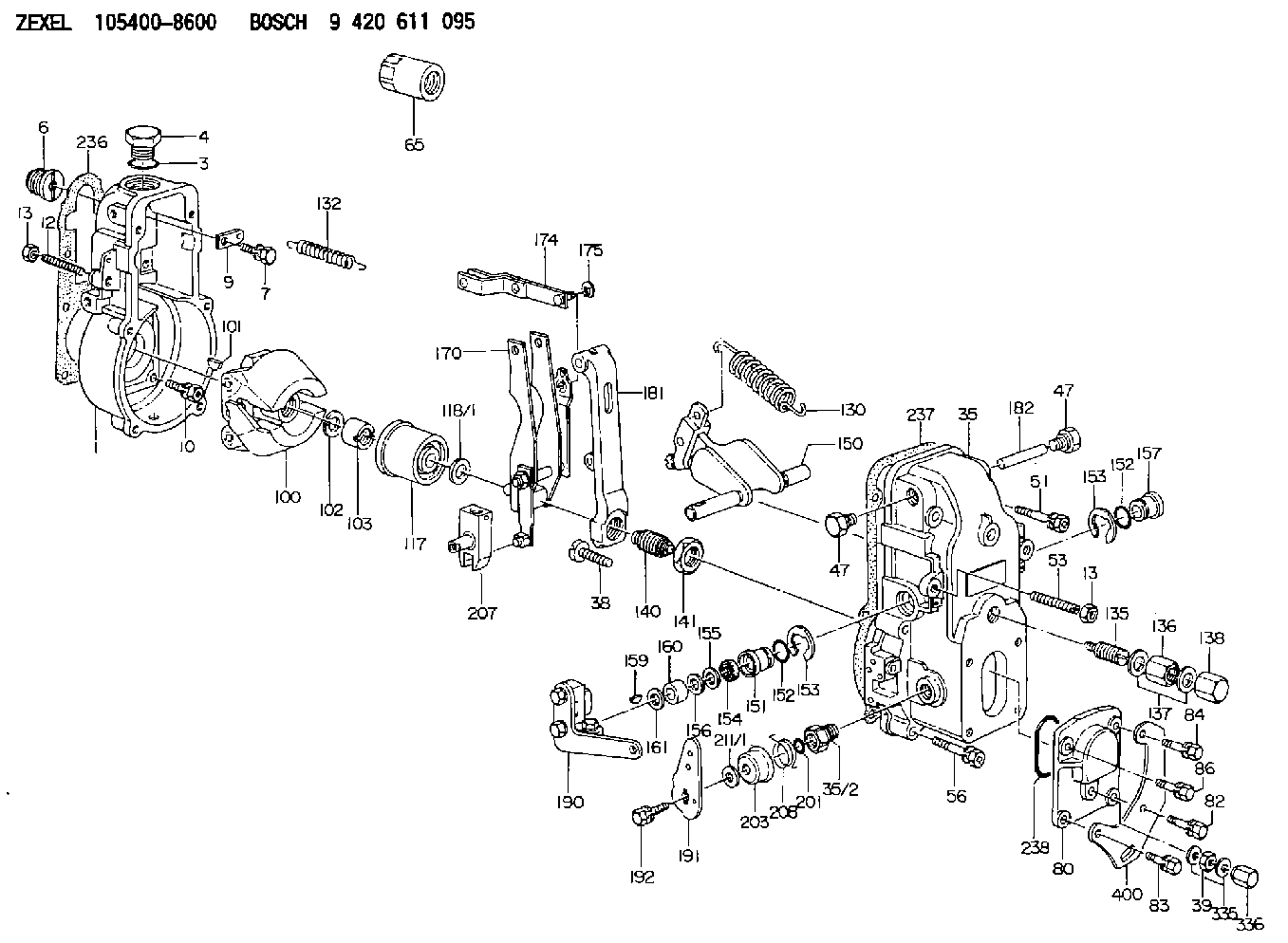

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
80.	[1]	154063-1400	COVER
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0520	FLYWEIGHT
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1520	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-4620	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7320	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154347-5920	CONTROL LEVER
191.	[1]	154365-7900	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
400.	[1]	154358-7200	BRACKET

Include in #1:

101402-7170 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105400-8600

9 420 611 095
NP-EP/RSV200-1600AQ21A312

8972056670 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
