105400-8580 ZEXEL 9 420 611 093 BOSCH GOVERNOR 9420611093 1054008580 8971680750




Information governor

BOSCH 9 420 611 093 9420611093
ZEXEL 105400-8580 1054008580
ISUZU 8971680750 8971680750
105400-8580 GOVERNOR
Rating:
62
Buy GOVERNOR 105400-8580 zexel genuine, new aftermarket engine parts with delivery

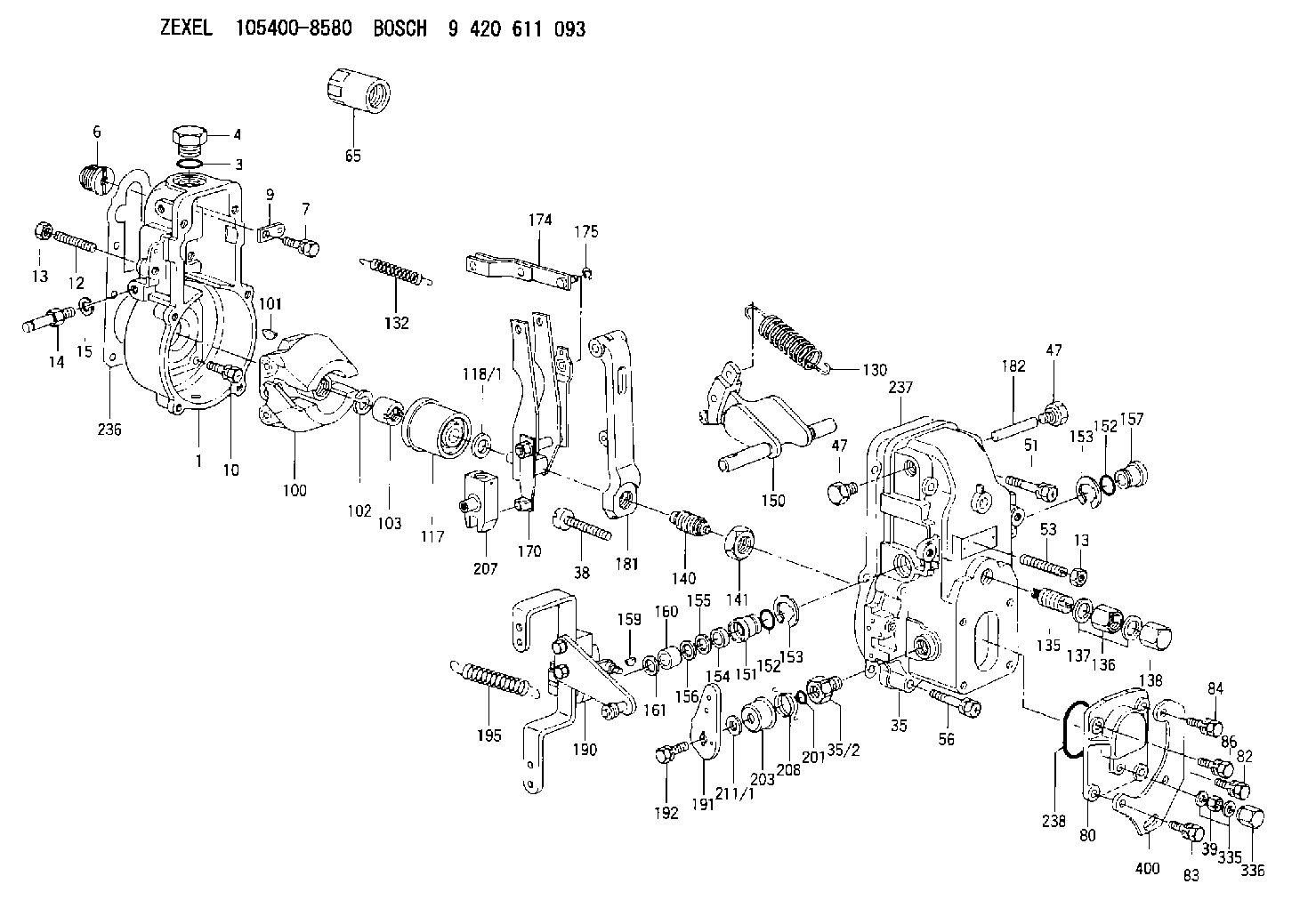

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 154012-2220 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-1020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-5700 CAP
80. [1] 154063-1400 COVER
82. [1] 029020-6260 BLEEDER SCREW
83. [1] 029020-6260 BLEEDER SCREW
84. [1] 020006-2040 BLEEDER SCREW M6P1L20 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-4100 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-1020 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154178-9220 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7120 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-7320 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154343-8621 CONTROL LEVER
191. [1] 154367-6700 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-2500 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
400. [1] 154358-7200 BRACKET

Include in #1:

101492-0850 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105400-8580
9 420 611 093
NP-EP/RSV200-1400AQ45A312
8971680750  ISUZU
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
