105400-8280 ZEXEL 9 420 612 738 BOSCH GOVERNOR 9420612738 1054008280




Information governor

BOSCH 9 420 612 738 9420612738
ZEXEL 105400-8280 1054008280
105400-8280 GOVERNOR
Rating:
17
Buy GOVERNOR 105400-8280 zexel genuine, new aftermarket engine parts with delivery

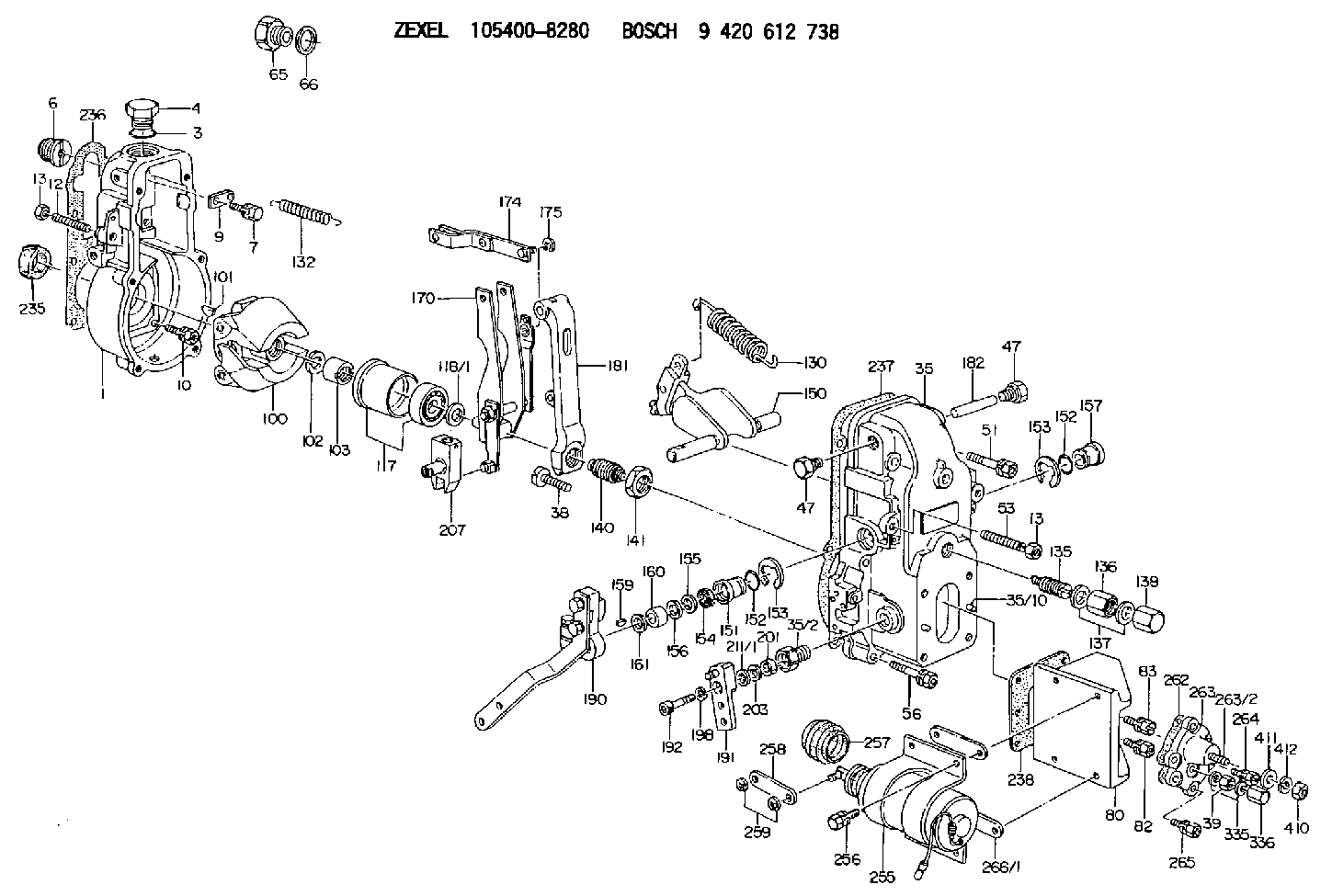

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0500 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1420 GOVERNOR COVER
35/2. [1] 154321-1300 BUSHING
35/10. [2] 015060-1480 BEARING PIN
38. [1] 154031-3000 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 153020-4420 STOPPING DEVICE
66. [1] 026518-2240 GASKET D21.9&18.2T1
80. [1] 154063-1300 COVER
82. [2] 029020-6280 BLEEDER SCREW
83. [2] 020106-2840 BLEEDER SCREW
100. [1] 154101-0120 FLYWEIGHT
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0100 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-1720 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1090 SHIM D16&11T0.3
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-0920 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154395-3620 CONTROL LEVER
191. [1] 154364-4720 CONTROL LEVER
192. [1] 010206-1440 HEX-SOCKET-HEAD CAP SCREW M6P1L14
198. [1] 029320-6010 LOCKING WASHER
201. [1] 029621-0010 PACKING RING
203. [0] 029311-0220 SHIM D18&10.3T0.2
203B. [0] 029311-0230 SHIM D18&10.3T0.5
207. [1] 154326-5020 CONTROL LEVER
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154351-1400 GASKET
255. [1] 154409-1820 SOLENOID
256. [4] 020006-1440 BLEEDER SCREW M6P1L14
257. [1] 154409-8900 COVER
258. [1] 154355-7420 STRAP
259. [2] 016010-0510 LOCKING WASHER
262. [1] 154353-5700 GASKET
263. [1] 154405-5420 COVER
263/2. [1] 029040-8240 STUD
264. [1] 029020-6260 BLEEDER SCREW
265. [5] 020106-2040 BLEEDER SCREW M6P1L20
266/1. [0] 154351-2000 SHIM T0.20
266/1. [0] 154351-2100 SHIM T0.50
266/1. [0] 154351-2200 SHIM T1.00
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
410. [1] 013020-8040 UNION NUT M8P1.25H7
411. [1] 014010-8140 PLAIN WASHER D18&8.5T1.6
412. [1] 014110-8440 LOCKING WASHER

Include in #1:

101605-9160 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105400-8280
105400-8281
9 420 612 738

GOVERNOR
* K




Information:

Emissions Warranty
Caterpillar Inc. warrants to the initial owner and subsequent owner of a diesel truck engines (powering on-highway trucks), that such engine is ...1. Designed, built and equipped so as to conform, at the time of sale, with all applicable regulations adopted by the United States Environmental Protection Agency (EPA).2. Free from defects in materials and workmanship in specific emission related parts for a period of 60 months, 100,000 miles (161 000 km) or 3,000 hours of operation, whichever occurs first, after date of delivery to the initial owner.If an emission related part fails during the warranty period, it will be repaired or replaced. Any such part repaired or replaced under warranty is warranted for the remainder of the warranty period.During the term of this warranty, Caterpillar Inc. will provide through a Caterpillar dealer or other establishment authorized by it, repair or replacement of any warranted part at no charge to the truck engine owner.In an emergency, repairs may be performed at any service establishment, or by the owner, using any replacement part.Caterpillar Inc. will reimburse the owner for their expenses, including diagnostic charges for such emergency repair. These expenses shall not exceed Caterpillar Inc. suggested retail price for all warranted parts replaced, and labor charges based on Caterpillar Inc. recommended time allowance for the warranty repair and the geographically appropriate hourly labor rate.As a condition of reimbursement, replaced parts and receipted invoices must be presented at a place of business of a Caterpillar dealer or other establishment authorized by Caterpillar Inc.Limitations & Responsibilities
The warranty is subject to the following:Caterpillar Inc. Responsibilities
During the emission warranty period, if a defect in material or workmanship of an emission related part or component is found, Caterpillar Inc. will provide: * New, Remanufactured or repaired parts and/or components, approved pursuant to EPA Regulations, required to correct the defect. Items replaced under this warranty become the property of Caterpillar Inc.* Reasonable and customary labor, during normal working hours, required to make the warranty repair. This includes labor to remove and install the engine, if necessary.Owner Responsibilities
During the emission warranty period, the owner is responsible for: * Premium or overtime labor costs, unless essential to prevent loss to perishable goods.* Costs to investigate complaints which are not caused by a defect in Caterpillar Inc. material or workmanship.* Providing timely notice of a warrantable failure and promptly making the product available for repair.Limitations
Caterpillar Inc. is not responsible for resultant damages to an emission related part or component resulting from: * Any application or installation Caterpillar Inc. deems improper.* Attachments, accessory items or parts not sold nor approved by Caterpillar Inc.* Improper truck engine maintenance, repair or abuse.* Owner's unreasonable delay in making the product available after being notified of a potential product problem.This warranty is in addition to Caterpillar Inc. standard warranty, applicable to the truck engine product involved.Remedies under this warranty are limited to the provision of material and services as specified herein. Caterpillar Inc. is not responsible for incidental or consequential damages.

Have questions with 105400-8280?





Group cross 105400-8280 ZEXEL

Isuzu

9 420 612 852
NP-EP/RSV200-1450AQ43A312
8970725411
GOVERNOR
9 420 613 196

GOVERNOR
9 420 610 742
NP-EP/RSV200-1450AQ2A302

GOVERNOR



Isuzu

F 019 Z1E 014
NP-EP/RSV200-1450AQ43A312
8971002670
GOVERNOR
9 420 611 088
NP-EP/RSV200-1450AQ43A312
8971002671
GOVERNOR

Nissan-Diesel

9 420 610 524
NP-EP/RSV200-1300AQ39A302
19109Z5579
GOVERNOR
F 019 Z4E 219
NP-EP/RSV200-1450AQ43A302
1910195306
GOVERNOR
9 420 614 178

GOVERNOR



105400-8280

105400-8281
9 420 612 738

GOVERNOR

Yanmar

9 420 611 542
12760561100
GOVERNOR
9 420 610 716
NP-EP/RSV200-1200AQ36A302
12760561101
GOVERNOR
9 420 613 460
NP-EP/RSV200-1200AQ36C312

GOVERNOR
