105400-7850 ZEXEL 9 420 612 420 BOSCH GOVERNOR 9420612420 1054007850

Information governor

BOSCH 9 420 612 420 9420612420

ZEXEL 105400-7850 1054007850

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105400-7850 zexel genuine, new aftermarket engine parts with delivery

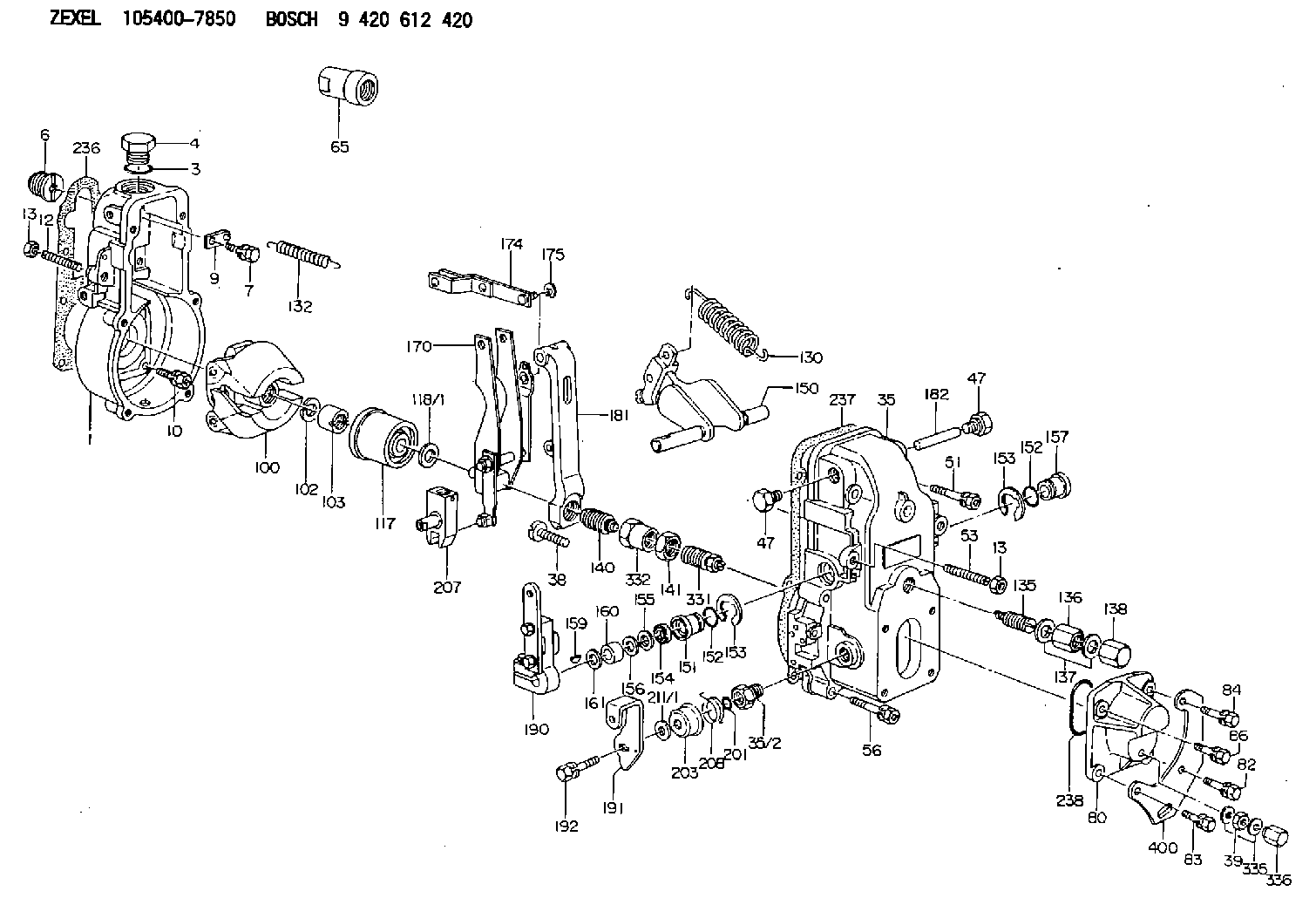

Scheme ###:

1.	[1]	154000-6300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
80.	[1]	154063-5100	COVER
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0120	FLYWEIGHT
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1520	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-4420	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7120	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-0920	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154341-9520	CONTROL LEVER
191.	[1]	154304-5800	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-1820	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
400.	[1]	154358-7200	BRACKET

Include in #1:

101695-3740 as GOVERNOR

101695-3741

Cross reference number

Zexel num

Bosch num

Firm num

Name

105400-7850

9 420 612 420
NP-EP/RSV200-1450AQ43A302

GOVERNOR
K

Information:

Engine Model View
3408 Engine Shown
Turbochargers (1), Exhaust Outlet (2), Crankcase Breather (3), Lifting Eye (4), Flywheel (5), Magnetic Pickup (6), Electronic Control Module (ECM) (7), Oil Fill Tube (8), Thermostat (9), Primary Fuel Filter (10), Water Pump (11), Crankshaft Vibration Damper (12), Alternator (13), Oil Filters (14), Crankcase Drain Plug (15), Fuel Filters and Priming Pump (16).3408 Engine Description
Caterpillar 3408 electronically controlled Industrial Engines are 18 liter (1099 cu in), 137 mm (5.4 in) bore and 152.4 mm (6.0 in) stroke, four cycle, 8 cylinder, 65 degree vee diesel design. The engine is twin turbocharged with jacket water aftercooling and direct fuel injection. It is designed for petroleum and auxiliary industrial applications.The engine and components are designed for high power output. The reduced size and weight plus increased fuel economy provide maximum performance. Contact your Caterpillar dealer for information on power ratings.Larger diameter plungers and a higher injection rate camshaft are incorporated in the valve train/fuel system. The fuel lines are made of high strength steel and the ends of the lines have collared washers to increase reliability.The cooling system has a gear driven centrifugal water pump, two thermostats (one for each bank) which regulate engine coolant temperature, and an oil cooler. A customer supplied fan drive and cooling system (radiator) may be required for the industrial
