105400-7511 ZEXEL 9 420 613 186 BOSCH GOVERNOR 9420613186 1054007511




Information governor

BOSCH 9 420 613 186 9420613186
ZEXEL 105400-7511 1054007511
105400-7511 GOVERNOR
Rating:
12
Buy GOVERNOR 105400-7511 zexel genuine, new aftermarket engine parts with delivery

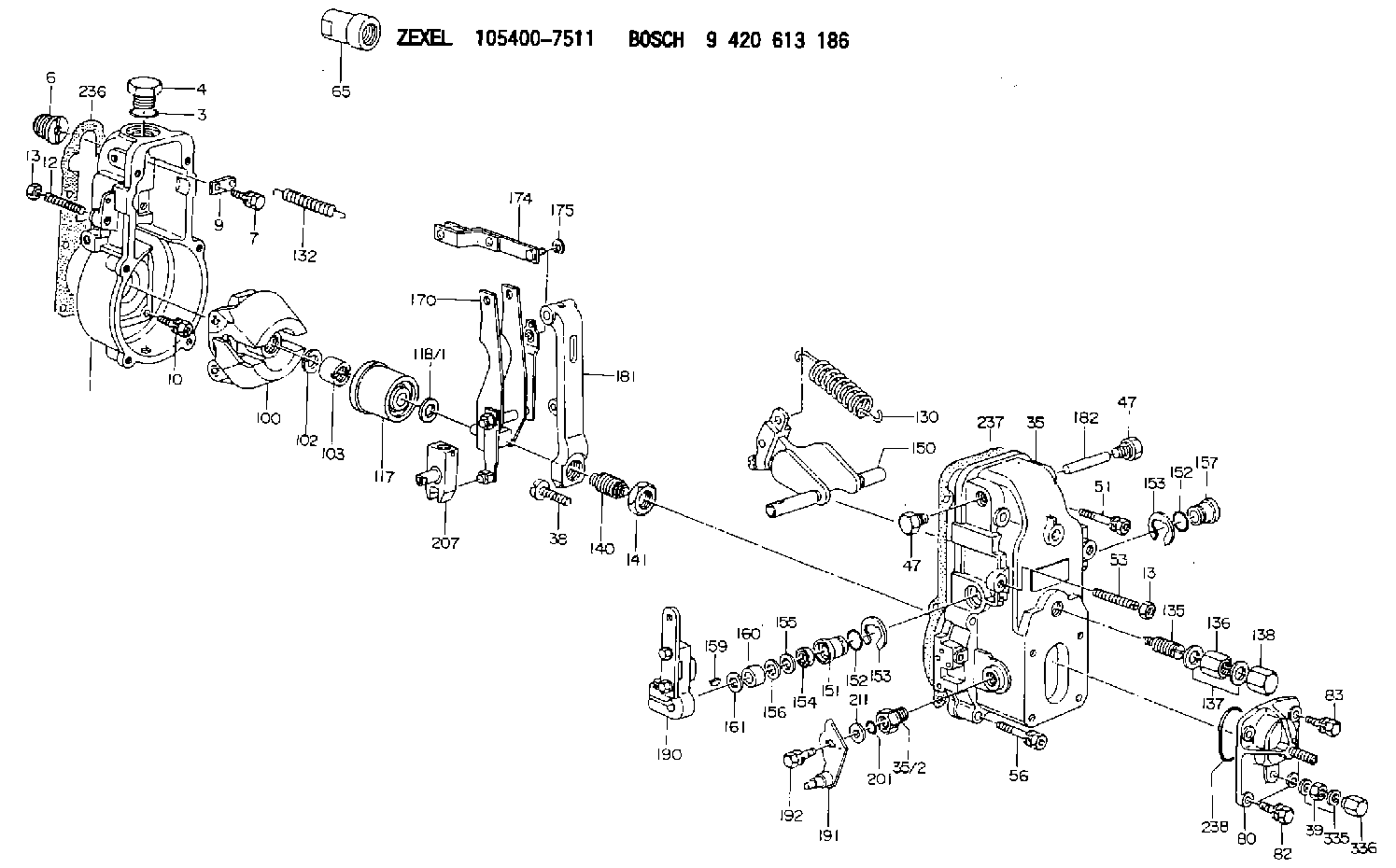

Scheme ###:

1. [1] 154000-6300 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-2400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-9020 STOPPING DEVICE
80. [1] 154063-6820 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0120 FLYWEIGHT
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-1200 COILED SPRING
135. [1] 154158-1820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-0620 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1090 SHIM D16&11T0.3
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-0920 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154341-9520 CONTROL LEVER
191. [1] 154381-1920 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
201. [1] 029631-0030 O-RING &9.8W2.3
207. [1] 154326-5020 CONTROL LEVER
211. [0] 029311-0220 SHIM D18&10.3T0.2
211B. [0] 029311-0230 SHIM D18&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT

Include in #1:

101495-3221 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105400-7511
105400-7512
9 420 613 186

GOVERNOR
* K




Information:

Filters and Pump Housing
1. Open the bleed valve on the pump housing. 2. Unscrew the hand priming pump plunger until it can be pulled out by hand. 3. Move the plunger in and out until fuel flows, free of air bubbles, from the bleed valve. 4. Close the bleed valve. 5. Push the plunger in and tighten by hand.6. Start the engine and check for leaks.Injection Pumps and Lines
The injection pumps and high pressure lines must be primed if the engine will not start, or runs rough, after priming the filters and pump housing.Each injection pump has a reverse flow check valve. These cannot be opened with hand priming pump pressure. Use the following procedure to prime the injection pumps and lines.
The fuel injection nozzles can be permanently damaged by twisting if only one wrench is used to loosen or tighten the fuel line nuts. Use one wrench to hold the nozzle and another to loosen the nut.
1. Loosen each of the fuel line nuts at the cylinder head end.2. Crank the engine with the starting motor until fuel flows, free of air bubbles, from each of the injection lines. Stop cranking the engine.3. Tighten each of the fuel line nuts to a torque of 41 + 7 N m (30 + 5 lb. ft.). Use a second wrench on the nozzle to prevent damage to it.4. Start the engine and check for leaks.

Have questions with 105400-7511?





Group cross 105400-7511 ZEXEL

Isuzu

9 420 612 512
NP-EP/RSV200-1450AQ43A302
8970490270
GOVERNOR


GOVERNOR
105400-7511

105400-7512
9 420 613 186

GOVERNOR
9 420 612 408

GOVERNOR

Hino

9 420 613 457
223203190A
GOVERNOR
F 019 Z4E 214
NP-EP/RSV200-1450AQ43C312
223203191A
GOVERNOR
9 420 613 187
NP-EP/RSV200-1300AQ39A302

GOVERNOR

Nissan-Diesel

F 019 Z4E 215
NP-EP/RSV200-1300AQ39A312
1910990307
GOVERNOR

Isuzu

9 420 612 849
NP-EP/RSV200-1200AQ36A312
8970493270
GOVERNOR
F 019 Z9E 860

GOVERNOR
9 420 612 409
NP-EP/RSV200-1450AQ2A302

GOVERNOR

Hino

9 420 612 078
NP-EP/RSV200-1300AQ39C312
223203210A
GOVERNOR
9 420 612 079
NP-EP/RSV200-1350AQ49C312

GOVERNOR
