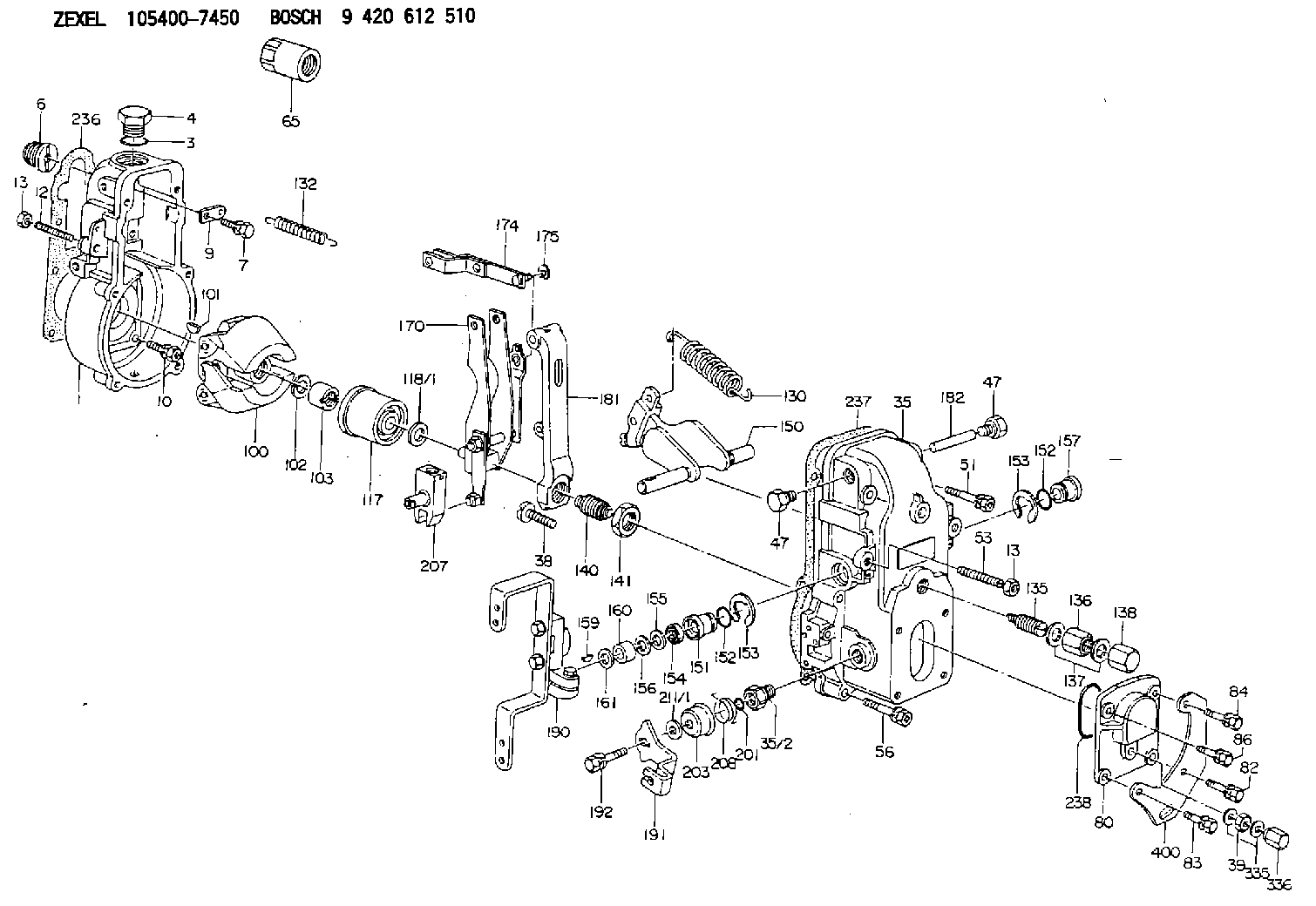

105400-7450 ZEXEL 9 420 612 510 BOSCH GOVERNOR 9420612510 1054007450 8970487950

Vessels using diesel engines for main propulsion are required by the various Marine Shipping Societies to carry a supply of replacement parts on-board. Although individual requirements may differ, the following list takes into consideration the requirements of all Marine Shipping Societies and several items recommended by Caterpillar. To customize this list for your particular engine arrangement and application, contact your authorized dealer and provide the following information.1. Engine Serial Number2. Engine Arrangement Number3. Rated Horsepower4. Electrical System (12V or 24V)5. Alternator (1 or 2 belts) (from Parts Manual)6. Sea (Raw) Water Pump Part No. (from Parts Manual)7. Type of Air Filter8. Water Lines Group (from Parts Manual)9. Spin on Conditioner (Y/N)10. PCV Group No. (from Parts Manual)11. Type Water Separator12. Marine Gear ModelSuggested Replacement Parts (to be carried on board)
Category I (Intercoastal)
Parts needed for servicing minor problems at remote ports or secondary repairs offshore.* Alternator Belt* Fuel Injection Nozzles* Four Oil Filters* Four Fuel Filters* Four Zinc Rods* Four Temperature Regulators* Four Air Cleaner Elements* S O S. Bottle Group* Liquid Gasket Material* Engine Oil* Antifreeze* Coolant Corrosion Inhibitor* Coolant ConditionerCategory II (Ocean-going)
Parts needed for extended travel from a servicing port or for maintaining an extensive set of spare parts on board.Ocean-going vessels should carry all replacement parts listed in Category I as well as the items listed below. Cylinder Head Parts* One complete service head assembly.* Five cylinder head bolts and washers.* Four intake valve inserts.* Six exhaust valve inserts.* One exhaust manifold stud and nut. Valve Parts* Four intake valves.* Six exhaust valves.* Ten valve guides.* Ten rotocoil assemblies.* Ten valve springs.* Twenty-four locks. Piston Parts-Power* One piston group.* One connecting rod assembly.* One connecting rod bearing.* One piston pin.* Two piston pin retainers.* One complete set of rings for one piston.* One main bearing.* Two thrust plates.* Two main bearing cap bolts and washers.* One cylinder liner.* Three cylinder liner seals.* One cylinder liner filler band.* One oil pan gasket. Fuel System Parts* One fuel injection pump group and O-ring seal.* One set (each) of the fuel injection lines.* Four fuel nozzle assemblies, fuel bodies and nuts.* One seal and gasket for fuel nozzle adapter.* One seal, lock and adapter assembly to connect fuel lines through cylinder head.* One fuel transfer pump. Camshaft Drive Parts* One water pump idler and balance weight gear assembly.* One shaft and thrust washer for idler and balance weight gear.* One crankshaft gear.* One camshaft gear and key. Air System Parts* One complete turbocharger group.* Four turbocharger mounting studs and locknuts.* One air cleaner element.* One aftercooler core.* One each of the bypass valves for oil cooler and oil filter (valve body).* One bolt for oil pan.* One engine oil cooler core.* One marine gear oil cooler core.* One temperature regulator.* One vee belt set (if so equipped).* One jacket water pump.* One sea (raw) water pump.* One complete engine gasket kit.* One flywheel to crankshaft bolt.* One bolt for valve cover.* One repair kit for piston and rings of
